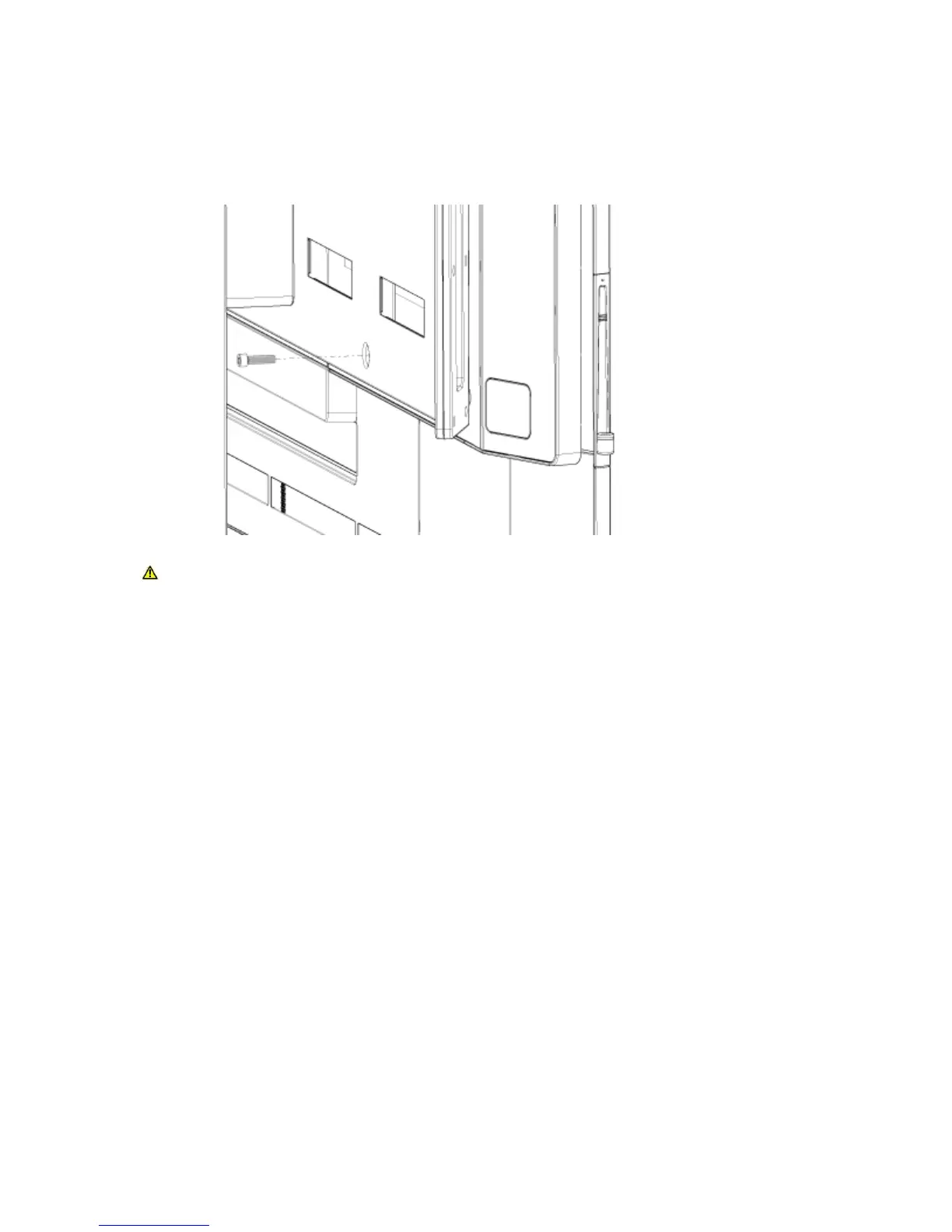

E. Thread the 35mm securing screws into the mounting holes at the base of the Surface
Hub, below the mounting pucks, and tighten them fully with a hex key. Do not
overtighten.
WARNING: Ergonomic lifting
To reduce the potential for lifting related injuries, follow good ergonomic lifting
guidelines.
Ergonomic lifting guidance
• Plan ahead. Ensure that everyone lifting the display knows the lifting plan and
their role.
• Determine if you can lift the unit. Is it too heavy or too awkward?
• Decide if you need lifting aid.
• Check your environment for obstructions and slippery surfaces.
• Make sure the lifting team agrees on the plan.
• Lift with your legs, not your back.
• Bend at your knees, keeping the back straight.
• Keep the unit close to your body.
• Center your body over the unit.
• Keep your feet about shoulder width apart.
• Lift straight up smoothly.
• Keep your torso straight; do not twist while lifting or after the load is lifted.
• Grasp the proper hand hold locations as shown below.
• Set the unit onto the stand slowly and smoothly with a straight back;
• Do not release your display panel until you are certain that it is properly seated.
