iMPOrTanT
Stationary images in video games can “burn”
into some TV screens, creating a permanent
shadow. Consult your TV owner’s manual or
manufacturer before playing games.
Connect the Component HD AV Cable
Use your component HD AV cable to connect
your console to your TV.

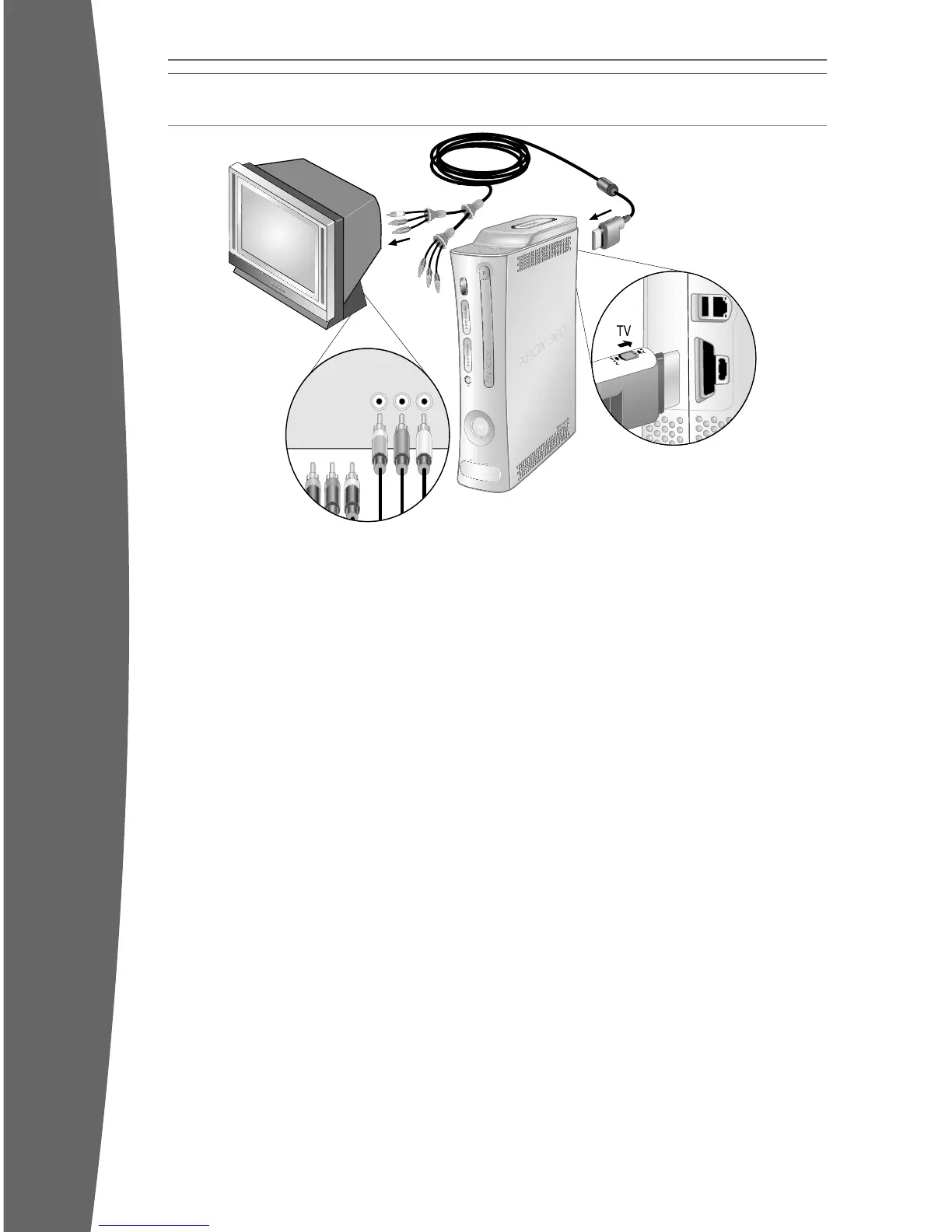

To connect to your standard TV:
1 Connect the HD AV cable connector to the
AV port on the console.
2 Set the switch on the AV port connector to
TV.
3 Connect the yellow color-banded
composite signal video connector on the
HD AV cable to the yellow input on your TV.
Leave the red, green, and blue color-
banded video connectors unconnected.
4 Connect the solid color left and right (white
and red) audio connectors on the HD AV
cable to the audio inputs on your TV or
stereo receiver.
For monaural (mono) TVs, which have only
one audio input, connect either the right or
left audio connector to the audio input.
5 Select the appropriate video input on your
TV (see No Picture under “Troubleshooting”
for more information).
nOTE
Your Xbox 360 Component HD AV Cable has
two distinct sets of connectors on the TV end
grouped by audio and video. Do not confuse
the red connector from the audio group with
the red connector from the video group.
CONNECT TO YOUR TV AND AUDIO SYSTEM
