Microsoft Xbox 360 Elite User Manual

6
english
Black only

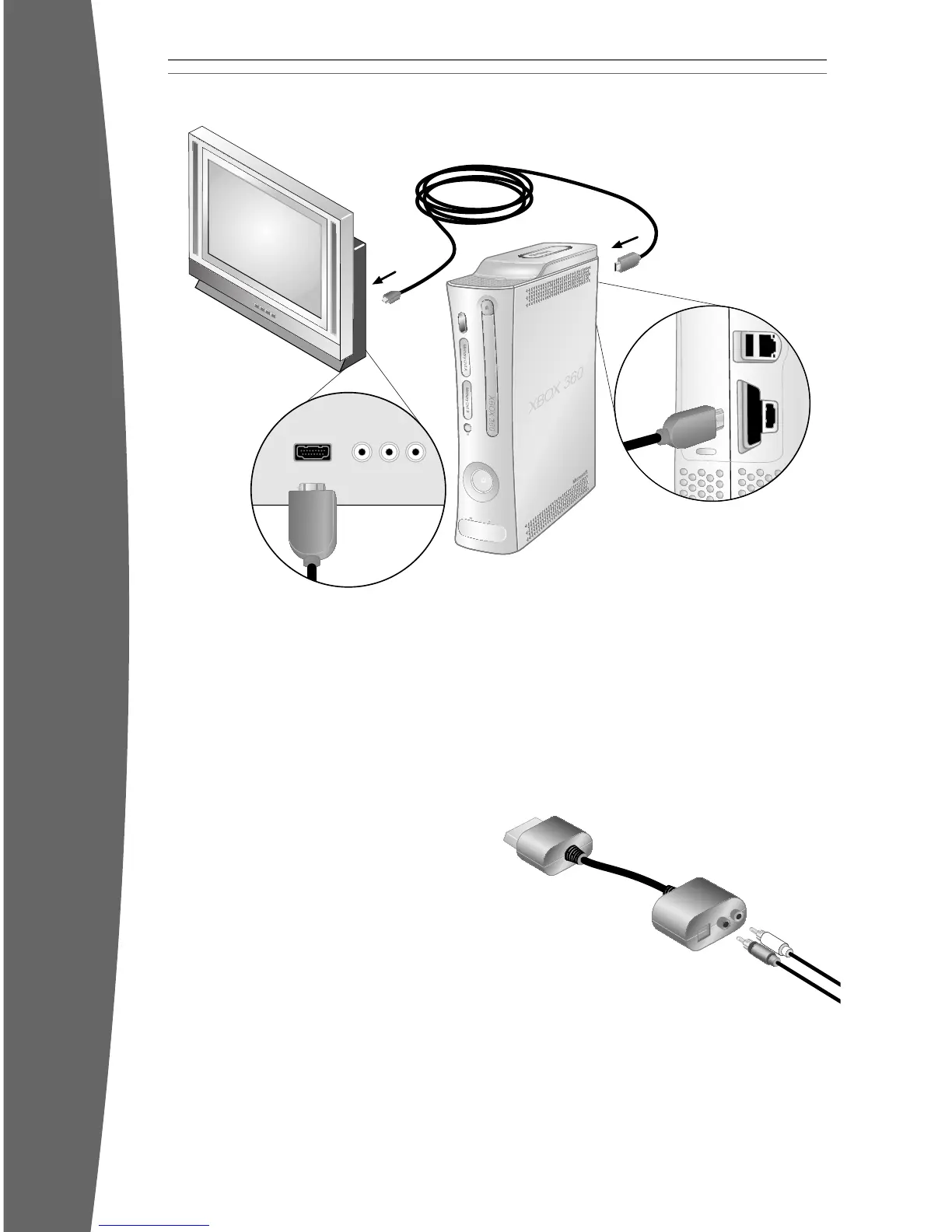

Connect the HDMI AV Cable
To connect to your high denition TV:
1 Turn off your console.
2 If another AV cable (such as the component
HD AV cable) is already connected to your
console’s AV port, disconnect it before
continuing.
3 Connect the HDMI AV cable connector to
the HDMI AV port (not the standard AV
port) on the console.
4 Connect the other end of the HDMI AV
cable to the HDMI input on your TV.
5 Turn on your console. From the System
area, select the appropriate high denition
video setting for your TV.
Connect to a Stereo Audio System
with the HDMI Cable
HDMI supports audio through your TV.
However, you might prefer to connect Xbox
360 audio to a different audio system, such as
a stereo receiver or amplier. To do so,
connect the HDMI AV cable for video and the
included audio adapter cable for audio.

Microsoft Xbox 360 Elite Specifications

General

Platform	Xbox 360
Product color	Black
Processor model	IBM PowerPC
Built-in speaker(s)	No
Storage media	HDD
Built-in optical drive	Yes
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	5
Wi-Fi standards	802.11b, 802.11g
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power consumption (typical)	135 W
Cables included	AC

Weight and Dimensions

Weight	2900 g
