Page 17 of 87

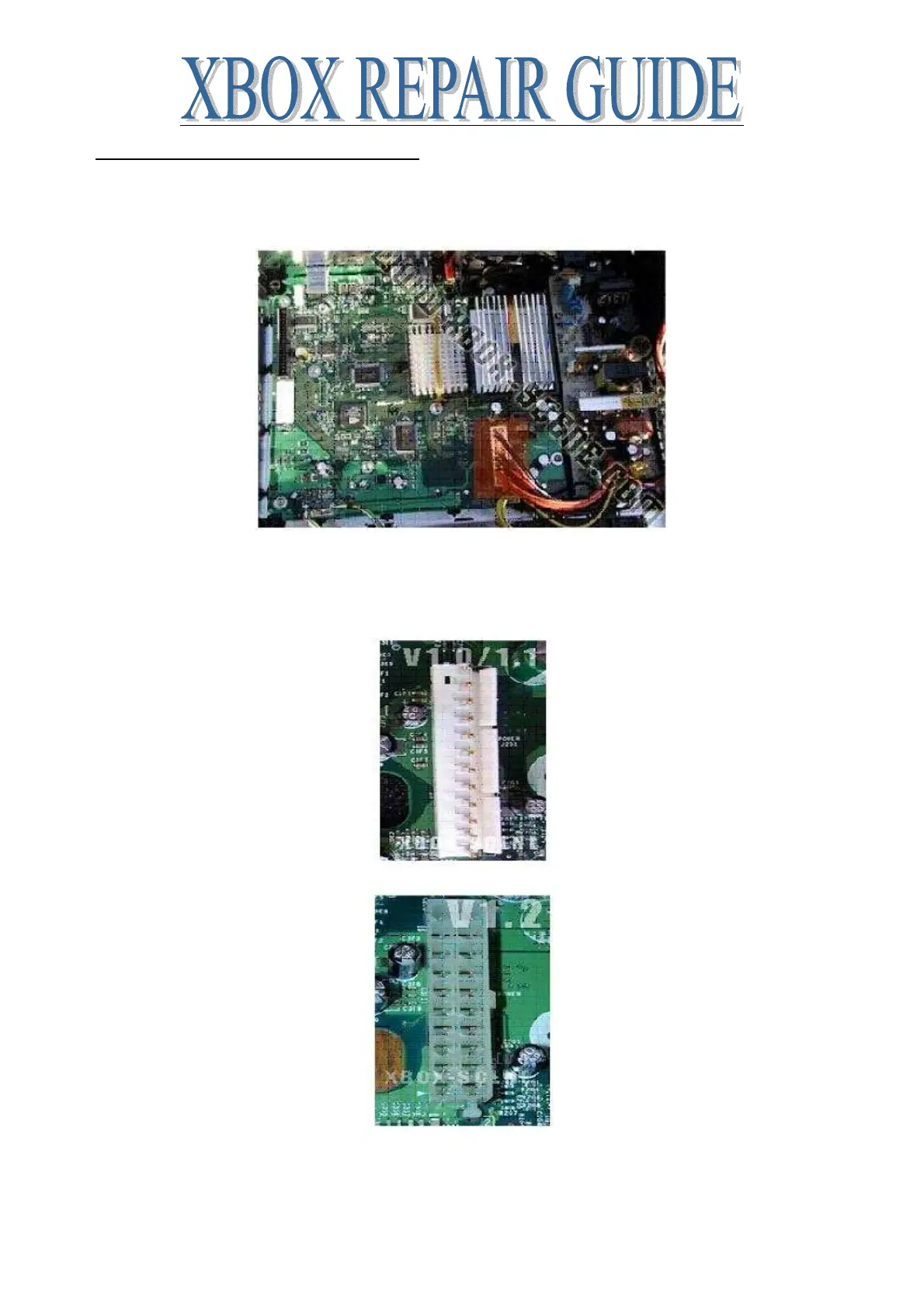

Xbox Version Detection - (Step 2 Image2)
Power connector (v1.0/v1.1 - v1.2/v1.3/v1.4/v1.5/v1.6)
LOCATION of the power connector on the motherboard (same on all versions)
The power connector is in the red area
Now check how many rows of pins your power connector has
PICTURE1: 1 row of pins
PICTURE2: 2 rows of pins
Select which picture matches with your Xbox:
Your Xbox is like on image 1:
You have an Xbox v 1.1
Your Xbox is like on image 2: see page 18
To Next Page
