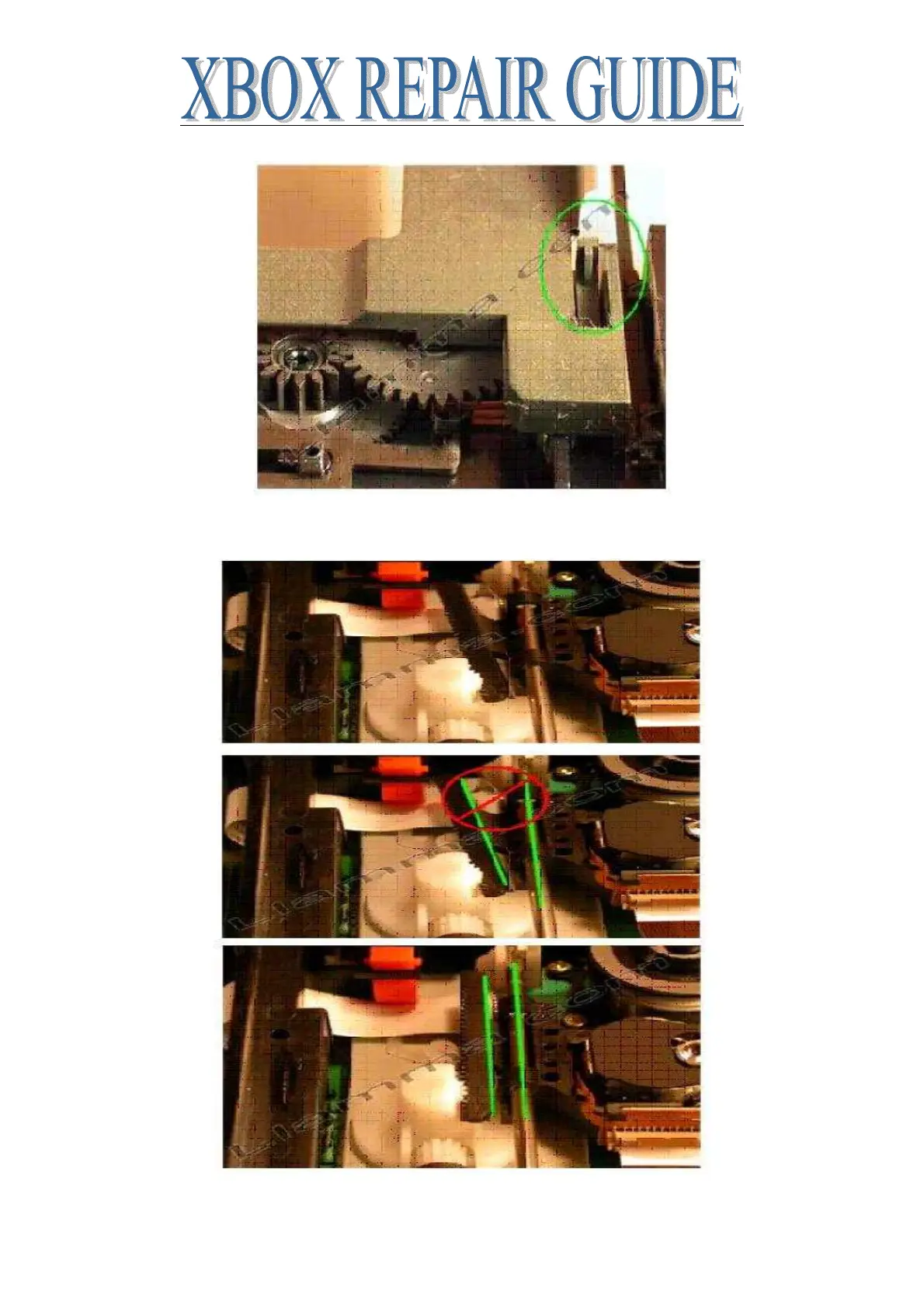

To completely remove the tray, lift the catch on the right side of the drive.
Now you should have a good view of the laser assembly note that on the Phillips drive there is a
black gear rail that sometimes pops out of place and the drive begins showing Disc is Dirty or
Damaged errors. The gear rail simply needs to be put back in place for normal operation.
