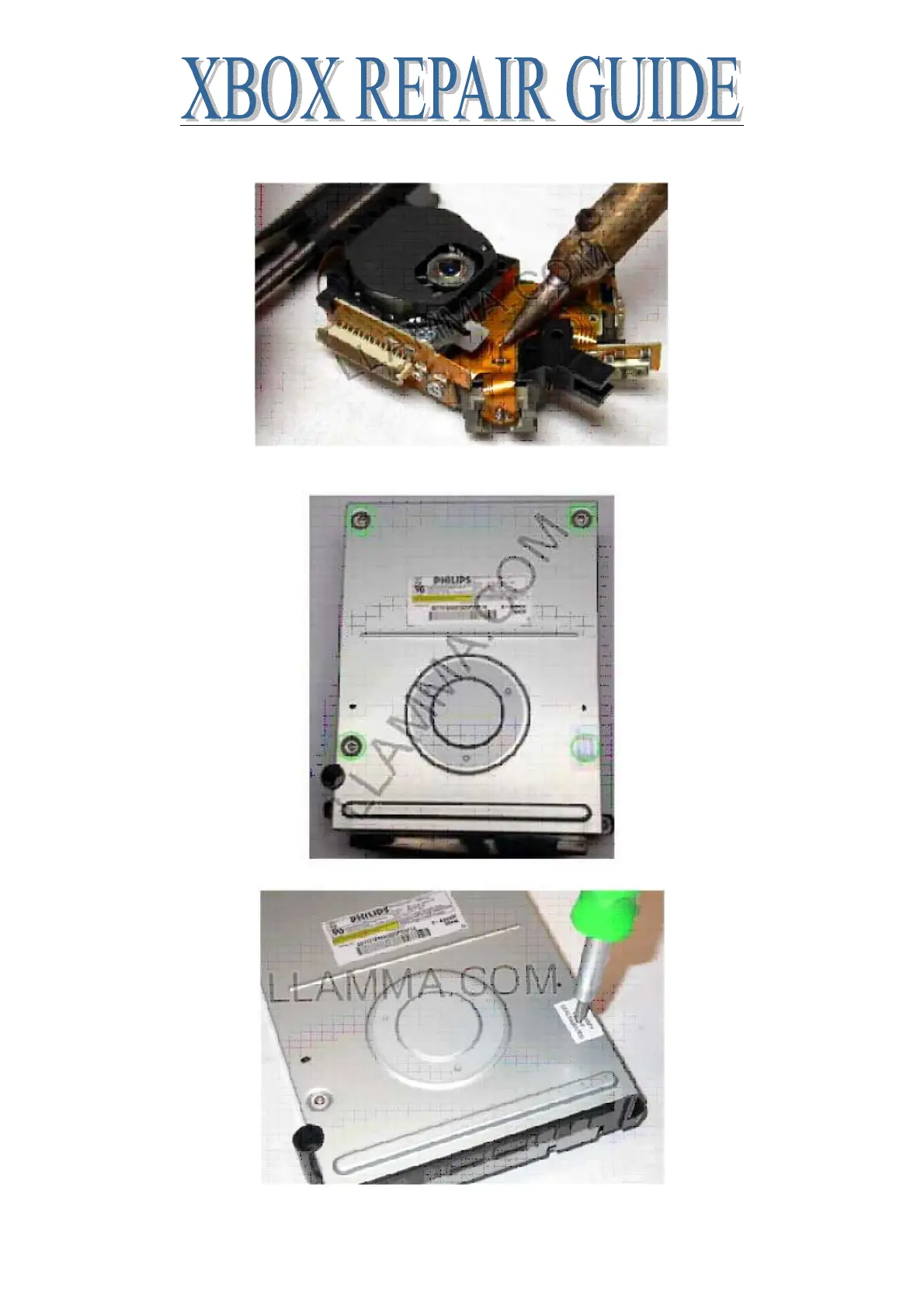

Removing the solder is best accomplished by wiping a clean 15Watt or other low temperature
soldering iron across the pads, (be very careful!!!) the iron picks up the solder.
Remove four Phillips #1 screws
One of them is under the warranty void if seal damaged sticker
Remove the top cover.
