Page 11
Basic Link with Modular 8 Jacks

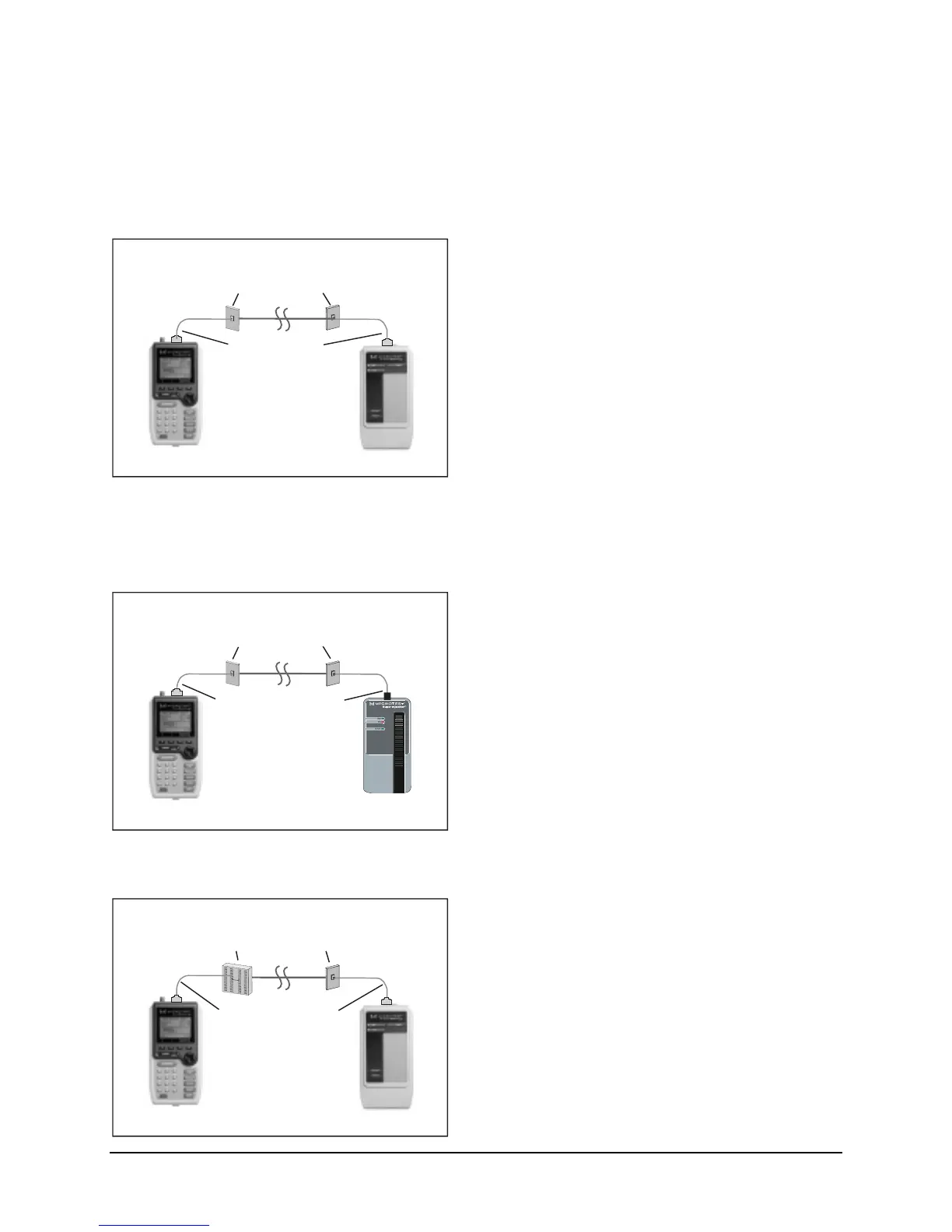

The diagram below shows the connection of a
PentaScanner
+ to a Modular 8 jack in the wiring
closet and a
2-Way Injector+
or
Super Injector+
to a Modular 8 jack in the work area.
Use the Modular 8 plug to 36-pin patch cable to attach the
PentaScanner
+ to the Modular 8 jack.
At the other end of the link, use the Modular 8 plug to 36-pin patch cable to attach the Injector to
the Modular 8 jack.
Wiring Closet Work Area
Modular 8 Jack
Modular 8 Plug to
36-Pin Patch Cable
36-Pin Injector36-Pin Scanner
If you are using a
Super Injector
, use the Modular 8 patch cable to connect the Injector to the
Modular 8 jack as shown:
Basic Link with IDC Block and Modular 8 Jack
Wiring Closet Work Area
Modular 8 Jack
110 Block
to 36-Pin
Patch
Cable
36-Pin Injector36-Pin Scanner
110 Block
Modular 8
Plug to
36-Pin
Patch
Cable
Wiring Closet Work Area
Modular 8 Jack
Modular 8 Plug
to 36-Pin
Patch Cable
Modular 8 Injector
36-Pin Scanner
Modular 8
Patch
Cable
