PPM simulator signal：
PPM signal has a frame of data every 20ms, starting with low power frequency, the duration from the first rising edge to the
second rising edge is channel 1 data, and the duration from the second rising edge to the third rising edge is channel 2 data,
and so on.
Triplane 1/2 channel mixing control
Close
mixed control mode
V tail 2/4 channel mixing control
Mixing switch
Open

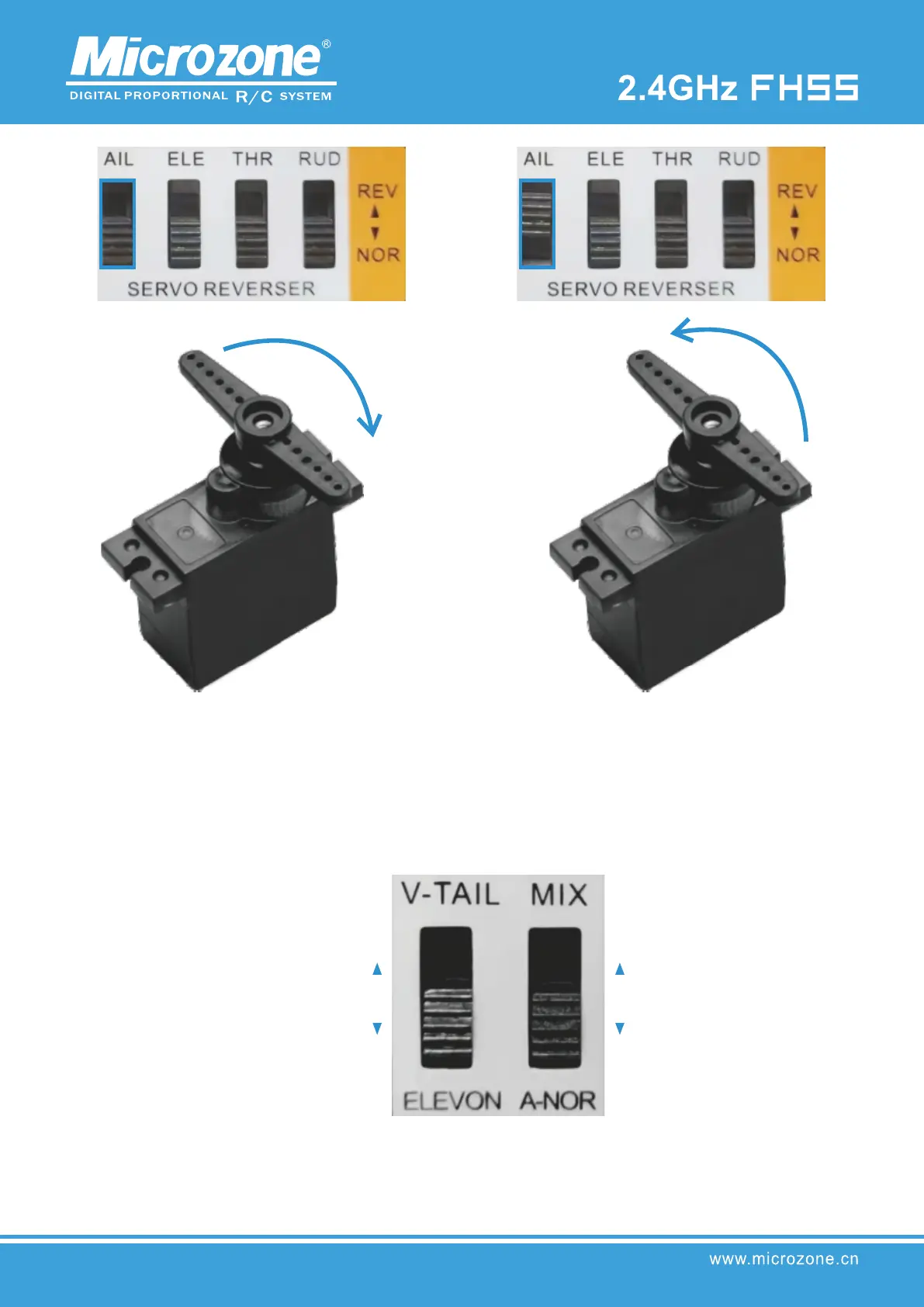

Mixing switch:
The mixing control switch is pulled down to close, as shown in the figure below.
Mix Mode:
Pulling it to the bottom is the 1/2 channel mixing control of the three-wing wing, which is suitable for models
such as the Su-27 trigger, and pulling it to the top is the 2/4 channel mixing control of the V tail, as shown in the
figure below.
