Status LED “LOW” LED “MID” LED “FULL” LED “ALARM”
Charging (10-80%) BLINK OFF OFF OFF
Charging (80-99%) BLINK BLINK OFF OFF
Fully charged (100%) OFF OFF BLINK OFF
Equalizing or refreshing OFF BLINK BLINK OFF
Equalization complete OFF OFF ON OFF
ON/OFF switch turned OFF OFF OFF BLINK BLINK
Alarm OFF OFF OFF BLINK(**)
Waiting for start time (see parameter) BLINK BLINK BLINK OFF
Waiting for full charge time (see parameter) OFF BLINK BLINK OFF
xx.x V xxx A
xxx Ah x.x t
During the charge, the display shows the battery voltage, the output current, the Ah and the charge time; in case of alarm it shows the error.
CAUTION! At any time during the charge, the battery charger must be halted and restarted manually by pressing the OFF/RESTART button
for 2 seconds.
BATTERY
ALARM/WARNING
Message Issue
LED
“LOW”
LED
“MID”
LED
“FULL”
BATTERY VOLTAGE TOO HIGH!!
Excessive battery voltage at startup (>2.5 V/cell or nominal battery voltage
higher than battery charger rating)
OFF ON ON
BATTERY VOLTAGE TOO LOW!!
Insufficient battery voltage at startup (<1.6 V/cell or nominal battery voltage
lower than battery charger rating)
ON ON OFF
CURRENT TOO HIGH Output current regulation error OFF OFF ON
EMERGENCY STOP VGAS NOT REACHED 80% charge status not reached OFF ON OFF
EMERGENCY STOP MAX VOUT Excessive battery voltage (>2.70 V/cell, programmable parameter) ON OFF ON
EMERGENCY STOP POWERSTAGE Powerstage fault or Antiarching not working OFF OFF OFF
FAN FAULT Cooling fans fault ON OFF OFF
EMERGENCY STOP SEE MANUAL Input or output fuse blown -- -- --

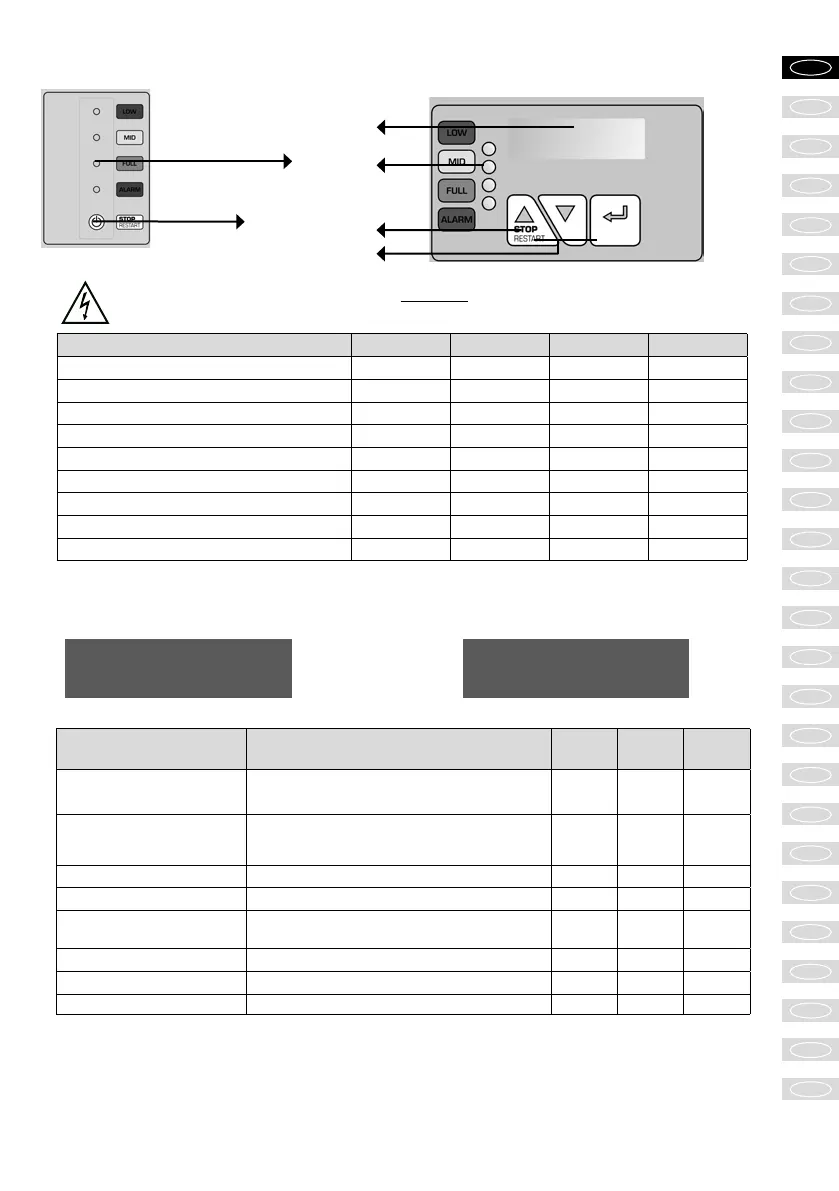

INTERFACE
STATUS LEDs
UP, DOWN, ENTER BUTTONS
STOP/RESTART BUTTON
(**) See table below for error code, in case of display missing
DISPLAY
