Midas DL16 User Manual

12 13MIDAS DL16 Quick Start Guide
IN 1-16
OUT 17-24
OUT 25-32
ADA8200
ADA8200
OUT 1-8
OUT 9-16
IN 17-32
M32
Linking two DL16 unitsDL16 as standalone snake
P16-D
ADA8200
On-stage slave DL16 in Standard mode
FOH DL16 in Snake Master mode
Rear panel view
Front panel view
Sends to stage
Out 9-16 (via ADA8200)Out 1-8
(via DL16)
to mixer inputs
Active stage monitors
Active stage monitors
P16-M

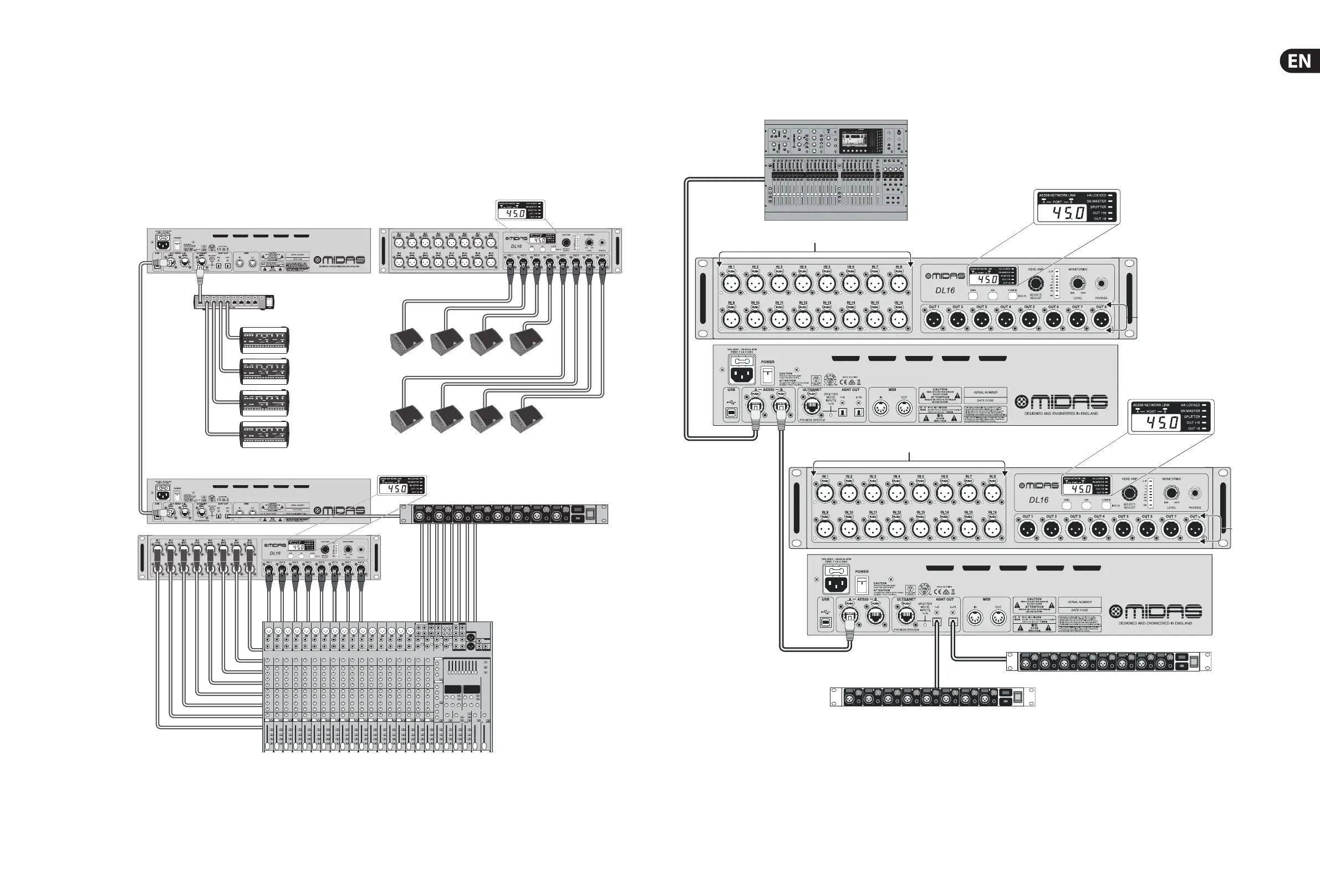

MIDAS DL16 Hook-up
Step 1: Hook-Up
Note: The signals on both DL16 units (Out 1-8 and 9-16) and both ADA8200 units (Out 17-24 and 25-32)
are fully de ned on the M32’s ’Routing/AES50 Output’ page. The second DL16’s outputs must be set to
Out+8on the unit itself.
