Midas HD96-24-CC-TP Quick Start Guide

208 H D 9 6 -24 - CC-T P Quick Start Guide 209
Specications
Processing
Input processing channels 144 exi channels
Output processing channels 96 exi aux outputs, 24 matrices, stereo bus, mono bus
Internal eects engines
24 x eects slots (up to 96 eects)
32 x Stereo multiband compressors
96 x Stereo dynamic equalisers
Point-to-point routing matrix 622 x 652
Signal processing 64-bit oating point
D/A converter 24-bit, 96 kHz and 128 times oversampling
A/D converter 24-bit, 96 kHz and 128 times oversampling
Sampling frequency 96 kHz
I/O latency (surface input to output) 1.34 ms
Input audio processing
Dual-slope high and low-pass lters
True phase lter control
4-band parametric EQ with 3 shelf modes
4-mode creative input compressors
Input gates or ducker
Insert point on/o with processing order change
Direct output with adjustable level and processing pick of point
Delay-compensated aux return mode on inputs
5 x tap-o points per send
Output audio processing
Output 4-band parametric EQ with shelving/HP/LP options
4-mode creative output dynamics
Insert point on/o with processing order change
Direct input with adjustable level and processing tap-o point
Mixing control assistance
12 x talk groups
12 x mute groups
24 x surface POPulation groups
24 x VCA associated population groups
Scene snapshot automation
Connectors
Midas microphone preamplier 8 x XLR balanced
Balanced outputs 8 x XLR balanced
Talkback connector 1 x XLR balanced
Talk connector 1 x XLR balanced
Headphone connector 2 x
1
⁄
4
" TRS (stereo)
Digital AES3 input / output (XLR) 2 / 2
AES50 ports (Klark Teknik SuperMAC, 100 Mbit/s) 4
Snake (copper) 2 x HyperMac (192 channels of bi-directional digital audio) on Ethercon XLR
Snake (bre) 2 x HyperMac (192 channels of bi-directional digital audio) on Opticon XLR
CM1 expansion slots 2 x slots (CM1 module for AES50, DANTE, MADI and USB)
Ultranet 2 x Ultranet ports (up to 16 digital outputs per port)
Word clock IN BNC, accepts TTL level, 96 kHz square wave, impedance 75 Ohms
Word clock OUT BNC, provides a TTL level, 96 kHz square wave

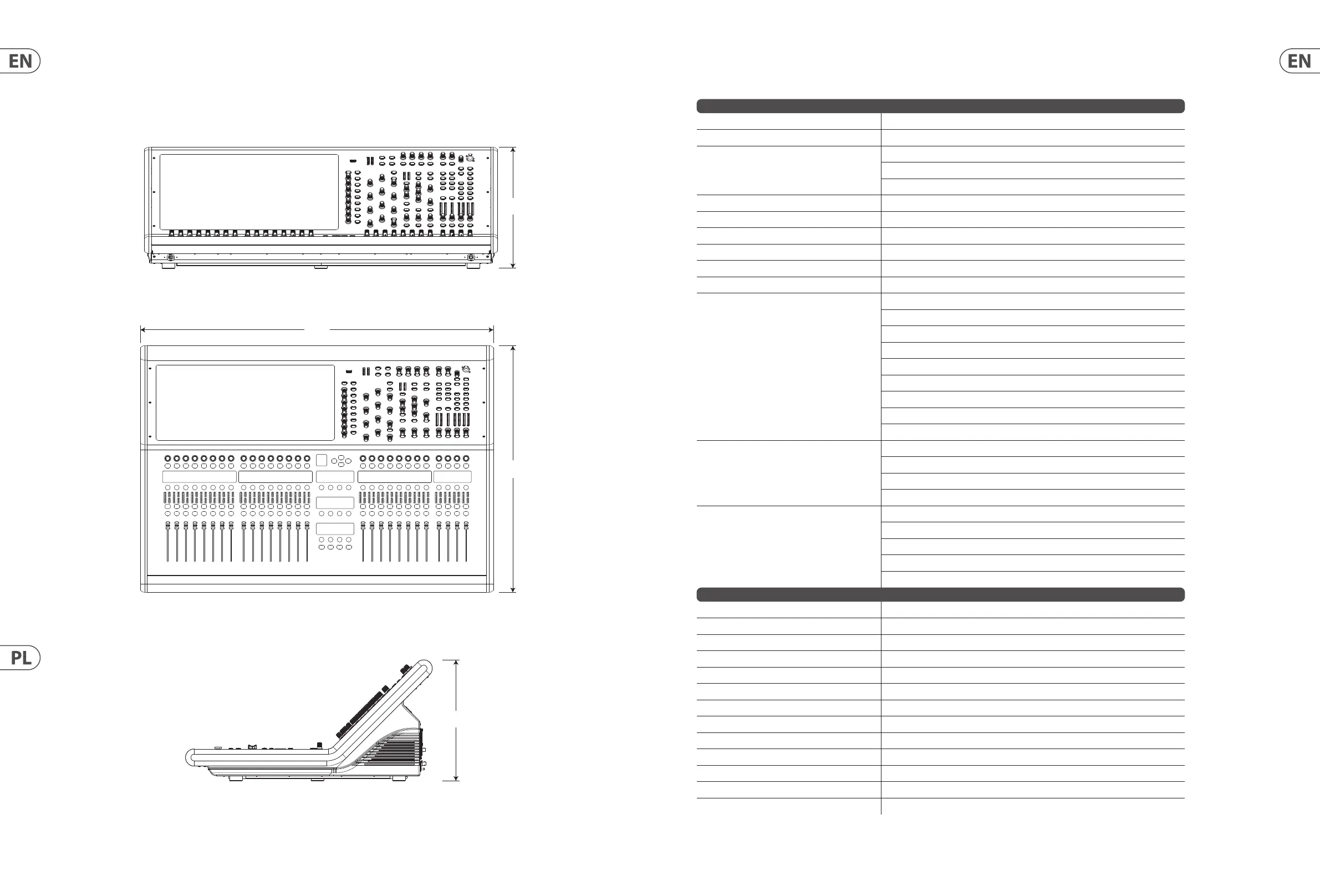

HD96-24 Wymiary
1028
352
352
719
