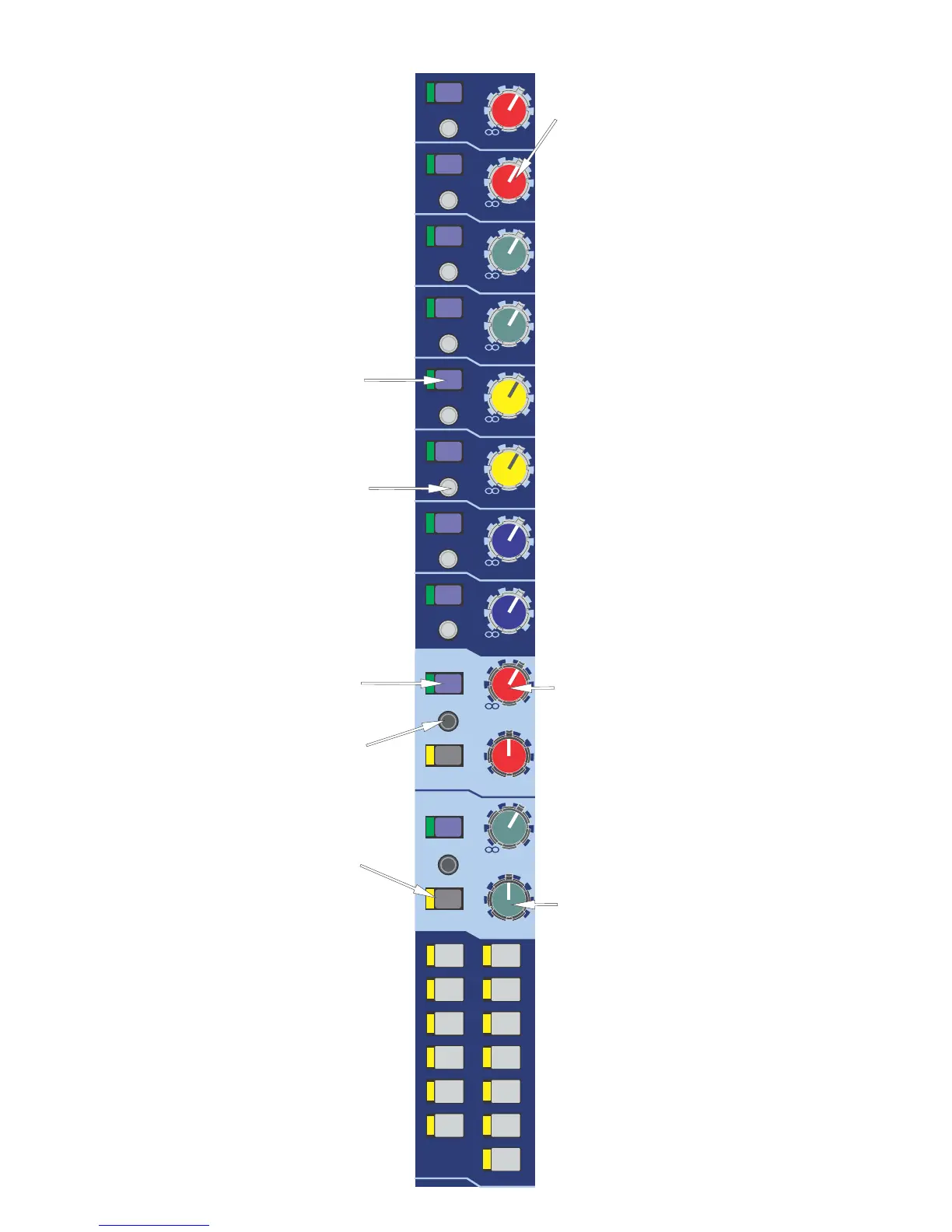

The mono AUX controls (1 to 8) give
continuous adjustment of the level sent
from the input channel to the aux
busses. The level adjustment is from
+ 6dB to off.
The mono aux ON switches connect
signals from the input channel to the
mono aux busses.
The mono aux PRE switches change
the signal sent to the mono aux busses
from post fader to pre fader.
The stereo aux LEVEL controls
(9 and 11) give continuous adjustment
of the level sent from the input
channel to the stereo aux busses. The
level adjustment is from + 6dB to off.
The stereo aux ON switches connect
signals from the input channel to the
stereo aux busses.
The stereo aux PRE switches change
the signal sent to the stereo aux busses
from post fader to pre fader.
The stereo aux PAN controls are used
to place the channel within a stereo
aux mix and have a constant power
law, i.e. - 3dB at the centre position.
The MONO switches change either of
the stereo aux busses into two
independent mono aux busses with the
pan controls becoming the second
level control ( bus 10 or 12).
The GROUP ROUTING switches
(1 to 12) assign the post fader channel
signals to the group busses.
The PAN switch effects all group
routing by moving the channel source
from post fader to post the fader and
pan control.
