Using Multiple Power Supplies
Servicing and Maintenance
The number of power supplies shipped as standard with the Verona varies with the frame size as follows:
24 - 32 1 0
40 - 56 2 0
64 2 1
Where multiple supplies are present, these should be switched on at the same time so that excessive load is not applied to
any single supply.
The external power supply can be used on 24-56 channel frame sizes to add redundancy or replace the internal supplies.
Two external supplies would be required to replace the internal supplies of the 56 channel console and retain redundancy.

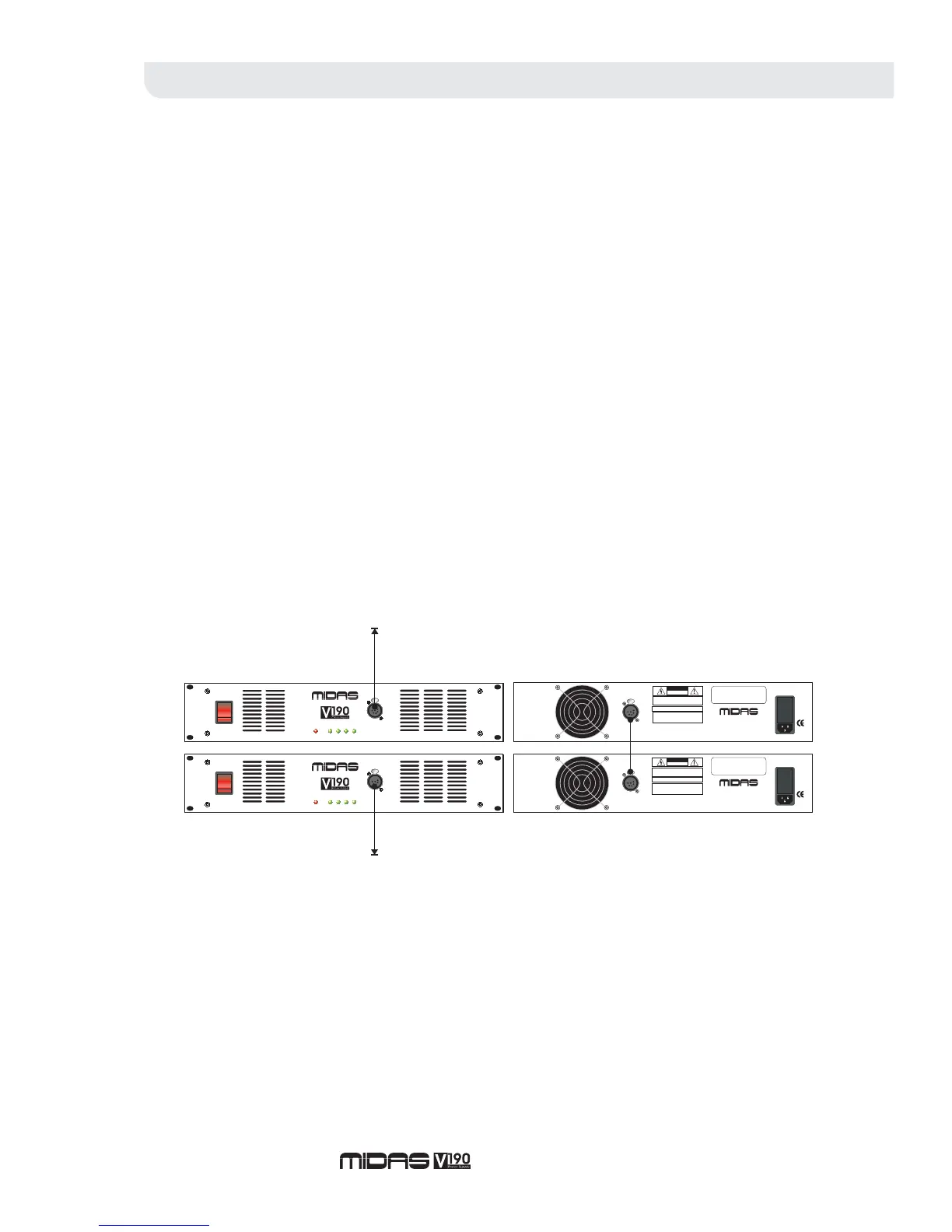

The external supply has a “daisy chain” facility (as shown below) allowing for a number of power supplies to be used
together adding redundancy to the system in the event of a power supply failing.
Connection 6 Pin Male XLR
Pin 1 0V Analogue
Pin 2 +18V Analogue
Pin 3 -18V Analogue
Pin 4 +12V Gooseneck Light
Pin 5 +48V Phantom
Pin 6 0V Gooseneck Light
Case Chassis
Under NO circumstances should the Venice series power supply be used with the Verona.
Only the MidasV190 Linear External Power Supply is approved for use with Verona consoles.
Both the Verona and the Midas V190 linear external power supply both contain potentially lethal voltages and should only
be serviced by authorised Midas service agents. In the event of malfunction, please refer servicing to qualified personnel.
Contact your Midas dealer for more information.
