The V190 series power supply unit is a two unit nineteen inch (2U 19”) rack mounted power supply for use with the Midas
Verona series of consoles only.
Before installing the power supply, please ensure that the correct mains supply voltage is selected on the rear of the supply.
The mains inlet is provided via a single IEC type socket. A mains cables is supplied with the unit. Never, under any
circumstances, should the power supply be operated without it’s safety earth connection.
The V190 series power supply should be installed into a 19” rackmount enclosure. If the power supplies are not in a
permanent installation, the rackmount enclosure construction should take into account the weight of the supply to prevent
damage to either the power supply or enclosure while in transit.
The V190 power supply has a forced air cooling channel flowing from back to front. To maintain adequate ventilation to the
unit, the cooling channel must not be blocked or hindered and one unit (1U) should be left free between the top of the
power supply and any other equipment or the rack. The rackmount enclosure should allow adequate airflow to both the
front and back panels of the power supply.
If using a number of power supplies, one unit (1U) space should be left free above each supply.
Some interference may be noticed when the power supply is situated in close proximity to the Verona console. Moving the
power supply away from the console will rectify this problem.
The power supply may only be serviced by authorised personnel. Refer all servicing to a qualified, approved Midas service
agent.
Depending upon where the power supply is installed, the interior of the unit will become, over time, dirty and will require
cleaning.
The power supply should also be serviced if it is dropped, exposed to rain or moisture, liquid has been spilled into the supply
or if the unit ceases to function normally.
The inside of the power supply contains potentially lethal voltages and is capable of providing high currents. To reduce
the possibility of electric shock, do not open the cover to the power supply. High voltages are still present in the
supply, even when isolated from the mains.
Installation
Service
Air Flow
Interference
DO NOT REMOVE THE COVER
Operators Manual - 1Page
Installation and ServiceInstallation and Service
Low
DC Output / Link
Power
Mains
48V
+
+
8V
1
_
8V
1
2V
+
1
PUSHPUSH

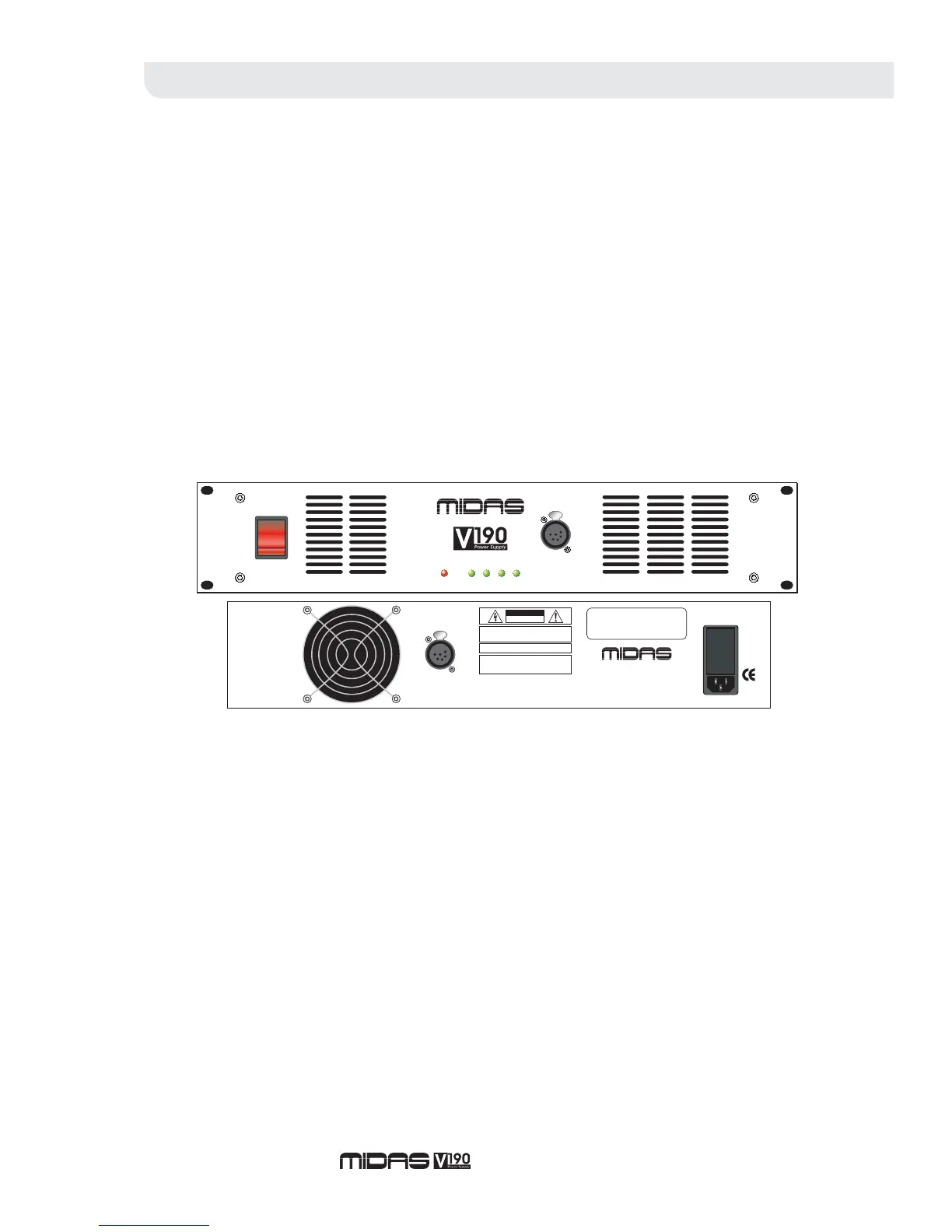

Front
Rear
BEFORE APPLYING MAINS.
CHECK VOLTAGE SELECTOR
100V/120V/220V/240V
FUSE: 5x20mm
T5A L250V
50-60Hz 520W
~
AC
SUPPLY
VOLTAGE
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
DC Output / Link
MADE IN KIDDERMINSTER, ENGLAND
FOR CONTINUED PROTECTION AGAINST RISK OF
ATTENTION:
CAUTION:
FIRE REPLACE WITH THE SAME TYPE AND VALUE FUSE INDICATED.
REMPLACER PAR UN FUSIBLE DE MÊME TYPE
COMME INDIQUÉ.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF ELECTRIC SHOCK,
WARNING:
RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR.
AVIS:
DC Output / Link
Pin6-
Shell -
0VL
Chassis
Pin1-
Pin2-
Pin3-
Pin4-
Pin5-
0VA
48V
+
2V
+
1
_
8V
1
+
8V
1
PUSH
0
I
