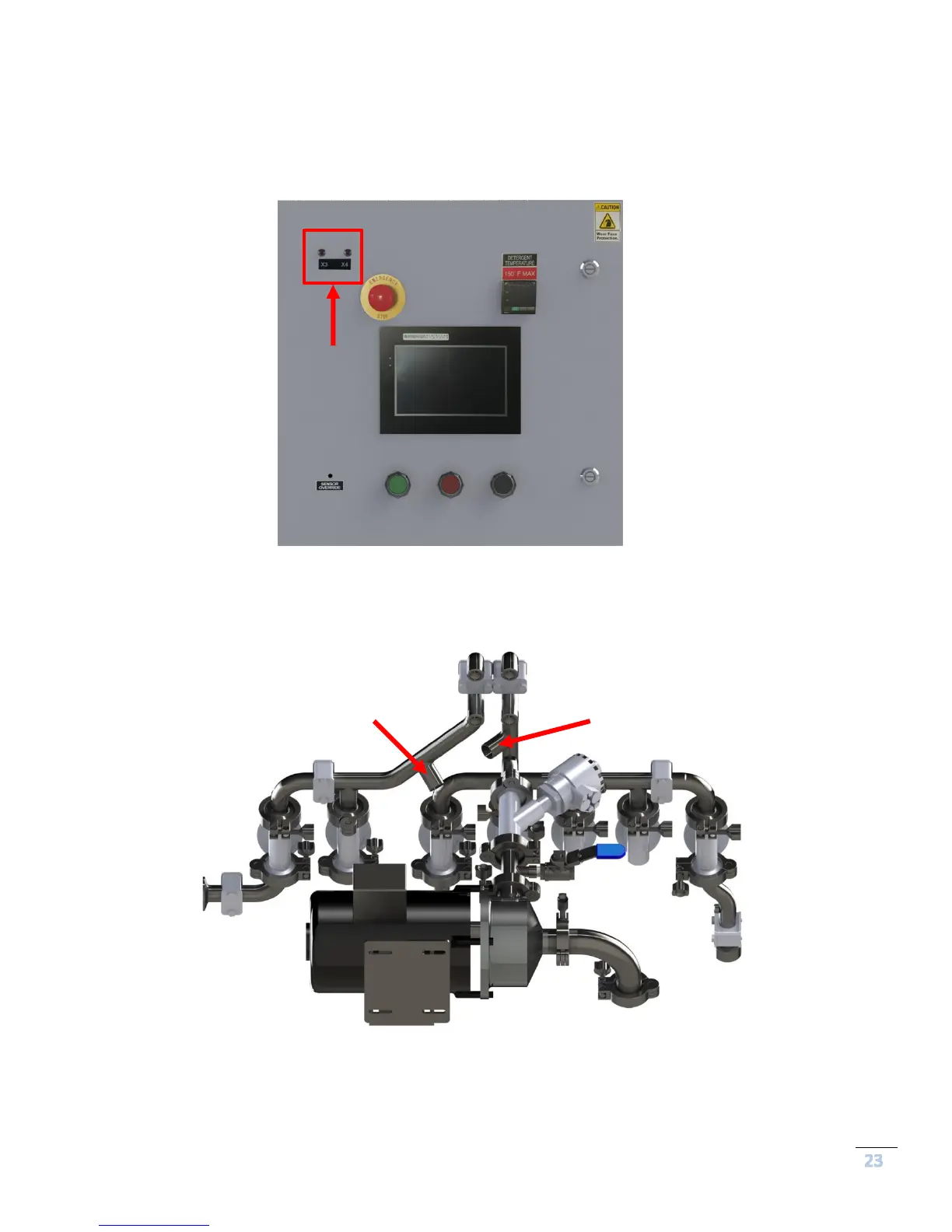

Figure 18 - X3 and X4 Sensor Lights
Figure 19 - X3 and X4 Sensor Locations on Manifold
Check the X3 light on the control panel to monitor the status of the evacuation cycle. Light on,
drain sensor is sensing liquid. Light off, liquid cleared.
X3
X4
