Service Manual_2018-V1.0

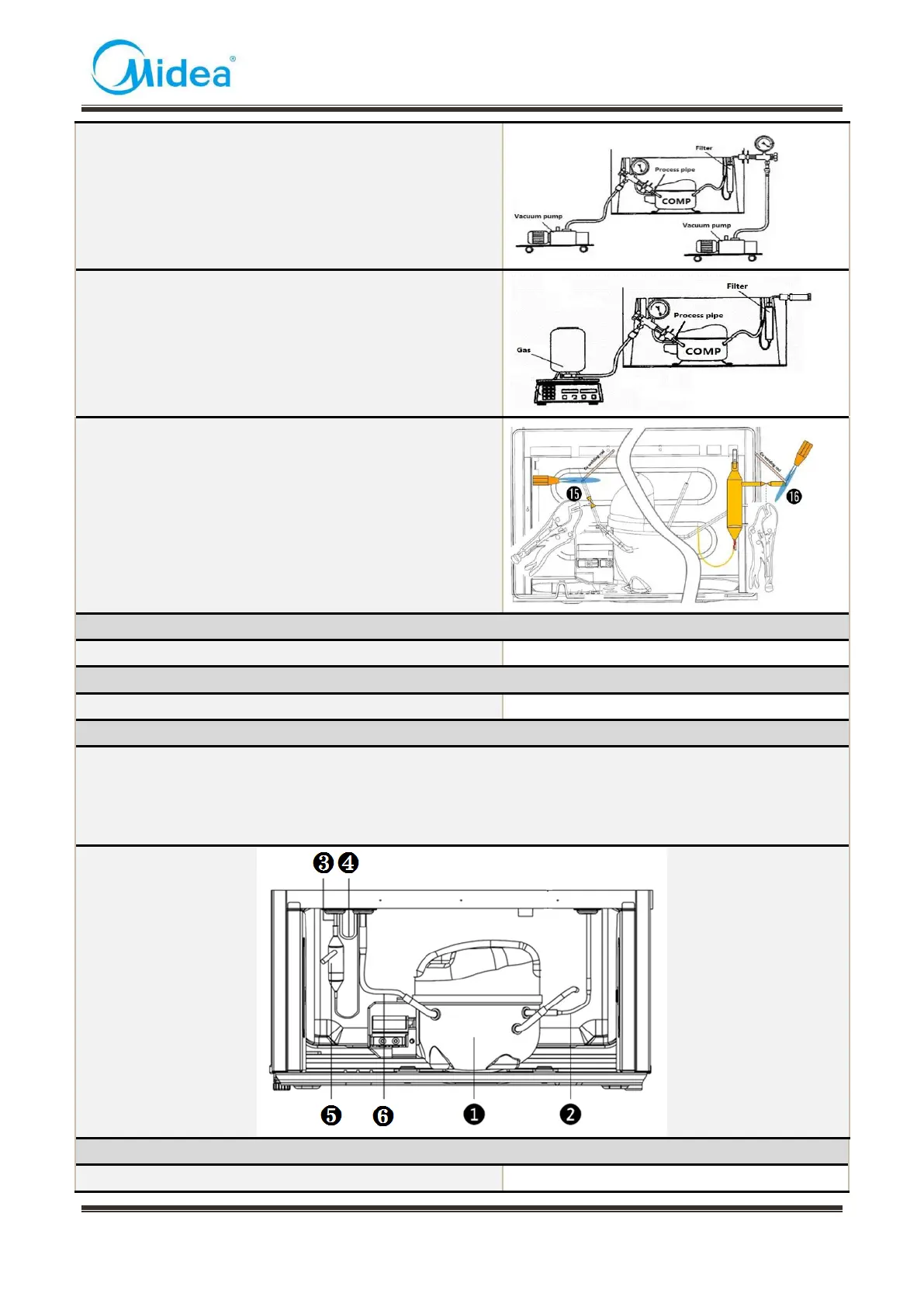

13）Vacuum system,The degree of vacuum below 6Pa.

14）Perfusion refrigerant.

15）Use the vise grip pliers clamp the middle of the

process pipe, then seal welding process tube⓯⓰.

Condenser fan motor

None

Standby condenser

None

Piping system in the compressor case

❶ Compressor

❷ Right condenser

❸Left condenser

❹Anti-dew tupe assembly

❺Dry filter

❻ Suction transition tube

Disassembly and assembly of the drain tray

None
