Midea ATOM MDV-V56WDHN1(AtB)

Atom B Series VRF 50/60Hz
40
Midea
Atom B
Series Service Manual

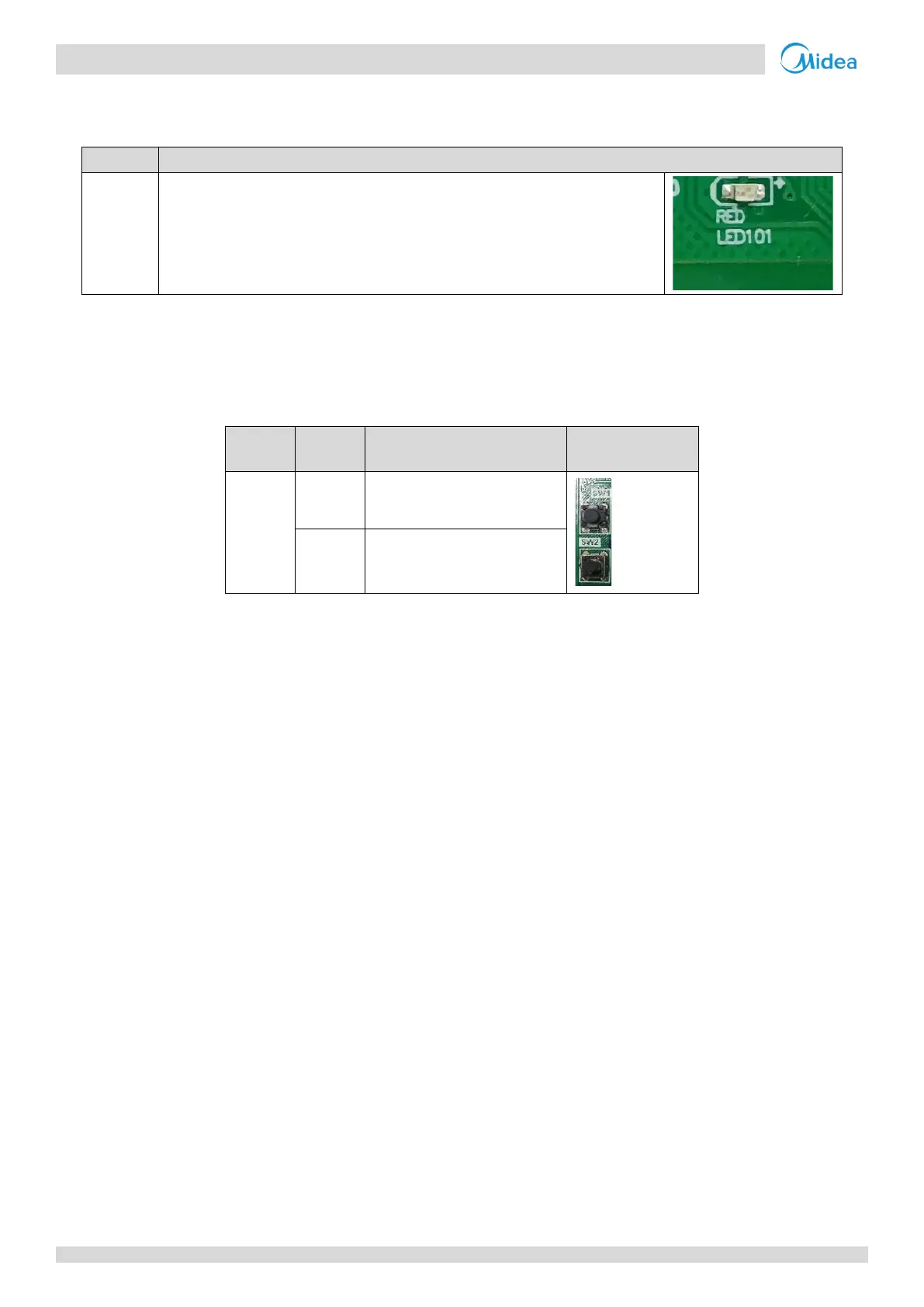

2.2 Components
2.2.1 LED indicator
Table 5-2.5: LED indicator
Indicator
LED indicator function and status
LED101
Inverter module operating indicator (red light). Continuously on if the compressor is
running normally, quick flashing (5Hz) if an inverter module error has occurred
1
and
slow flashing (1Hz) if the machine is in standby mode.
Notes:
1. If an inverter module error occurs, refer to Part 6.
2.2.2 Function of buttons SW1 to SW2
Table 5-2.6: Function of buttons SW1 to SW2
Model
Button
Function
36-60
SW1
Force cooling button
SW2
Check button
