Model: RG10A1(B2S)/BGEF
Starts and stops the horizontal
louver movement. Hold down
for 2 seconds to initiate vertical
louver auto swing feature(some units).
ON/OFF
SET
Turns the unit on or off.
MODE
OK
TIMER
FRESH
CLEAN
LED
BOOST
ECO/GEAR
Scrolls through operation modes
as follows:
AUTO J COOL J
DRY J
HEAT J FAN
FAN SPEED
SWING
Increases temperate in
1°C (1°F) increments.
Max. temperature is
30°C (86°F).
NOTE: Press together &
buttons at the same time
for 3 seconds will alternate
the temperature display
between the °C & °F.
TEMP
TEMP
Used to confirm the selected
functions
Decreases temperature
OO
in 1 C(1 F) increments.
Min. temperature is
OO
16 C(60 F).
Used to starts and stops the
Fresh feature.
Turns indoor unit’s LED display
and air conditioner buzzer on
and off(model dependent), which
create a comfortable and quiet
environment.
Set timer to turn unit on or off
Press this button to enter the
energy efficient moce in a
sequence of following:
ECO GEAR(75%)
GEAR(50%)
mode ECO
......
Scrolls through operation
functions as follows:
Breeze Away( ) Sleep
( )
Follow Me( )
AP mode( ) Breeze
Away ...
J
J
J
J
The selected symbol will
flash on the display area,
press OK button to confirm.
Selects fan speeds in the
following order:
AU
J
J
20%
60% 40% 80% 100%.
J JJ
Press the TEMP or button
to increase/decrease the fan
speed in 1% increments.
Enables unit to reach preset
temperature in shortest
possible time
Boost
Previous setting
Used to start/stop the Self Clean
or Active Clean function.(Model
dependent, please refer to the
USER’S OPERATION &
INSTALLATION MANUAL for
details)
Information are displayed when the remote controller is power up.
Breeze Away display
Transmission Indicator
MODE display
TIMER ON display
FAN SPEED display
TIMER OFF display
Silence feature
display
ECO display
GEAR display
LOCK display
Horizontal louver
swing display
Vertical louver auto
swing display
TURBO mode display
Not available for
this unit
Temperature/Timer/Fan speed
display
Active clean feature display
Fresh feature display
Sleep mode display
Follow me feature display
Wireless control feature display
Low battery detection display(If flashes)
Note:
All indicators shown in the figure are for the purpose of clear presentation. But during the actaul
operation, only the relative function signs are shown on the display window.

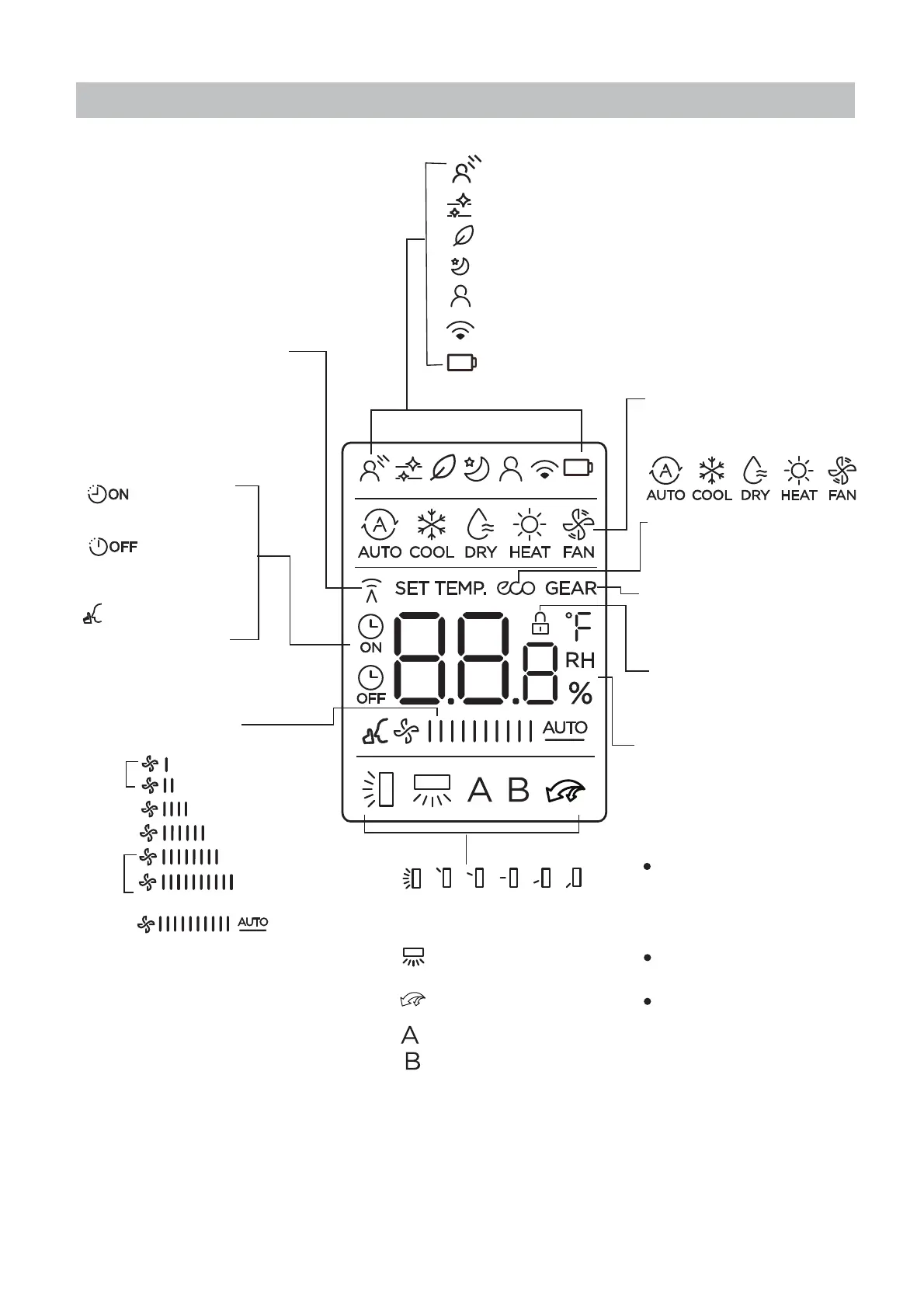

Remote Screen Indicators
Displays when LOCK feature
is activated.
Silence
LOW
MED
HIGH
AUTO
Lights up when remote
sends signal to indoor
unit
Displays selected fan speed:
Displays the current
including:
mode,
2%-20%
21%-40%
41%-60%
61%-80%
81%-100%
1%
This fan speed can not be
adjusted in AUTO or DRY
mode.
Displays when ECO
feature is activated
Displays when GEAR
feature is activated
Displays the set temperature
by default, or fan speed or
timer setting when using
TIMER ON/OFF functions.
Temperature range:
o
o
o
o
16-30 C //60-86 F
Timer setting range:
0-24 hours
Fan speed setting range:
AU -100%
This display is blank when
operating in FAN mode.
JJ
J
JJ
(20-28 C/68-82 F)
(Model dependent)
How to Use Basic Functions
ATTENTION! Before operation, please
ensure the unit is plugged in and power
is available.
AUTO Mode
SETTING TEMPERATURE
The operating temperature range for units
is 16-30°C (60-86°F)/20-28 C(68-82 F).
You can increase or decrease the set
temperature in 1°C (1°F) increments.
In AUTO mode, the unit will automatically select
the COOL, FAN, HEAT or DRY function based on
the set temperature.
1. Press the MODE button to select AUTO.
2. Set your desired temperature using the TEMP
or TEMP button.
Set your desired temperature using the
TEMP or TEMP button.
3.
Press the ON/OFF button to start the unit.
Press the ON/OFF button to start the unit.
NOTE: FAN SPEED can’t be set in AUTO mode.
COOL Mode
Swing
Boost
Clean
Swing
Boost
Clean
Basic operation
1. Press the MODE button to select COOL
mode.
2.
3.
Press
FAN button to select the fan speed
in a range of AU-100%.
4.
1
3
2
1
3
2
4
53
