Midea CTBU-09HWFN1-M

119
6

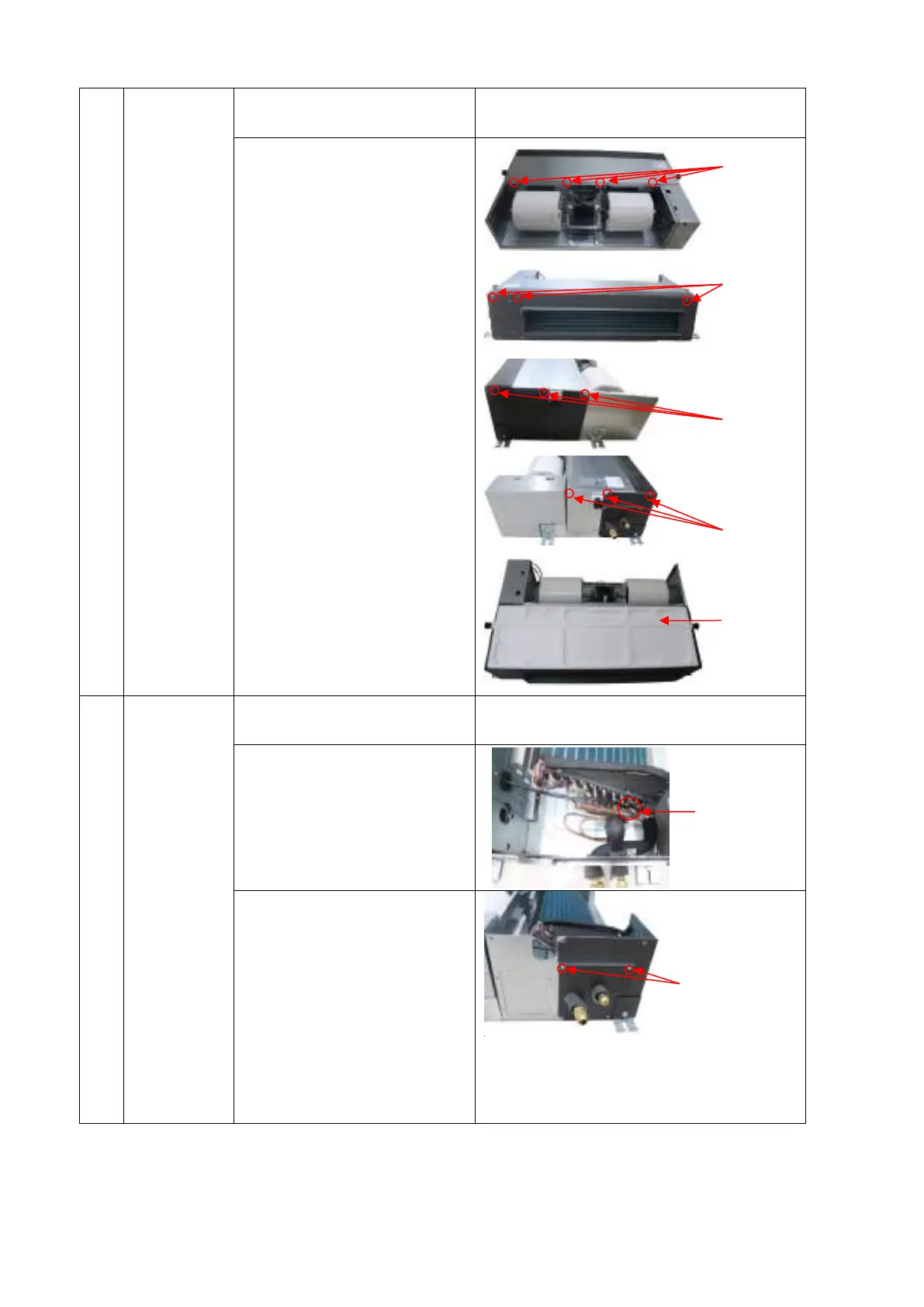

Remove the
water
collector
assembly
1) Remove the rear cover
board
Repeat the operation of step1 of No.5
2) Screw off the screws to
remove the water
collector assembly
7
Remove the
evaporator
1) Remove the water
collector
Repeat the operation of No.6
2) Remove the evaporator
sensor
3) Remove the pipe clamp
board
4 screws
3 screws
3 screws
Evaporator
sensor
2 screws
3 screws
Water
collector
assembly
