Midea CTBU-09HWFN1-M

136
3
Electrical
parts

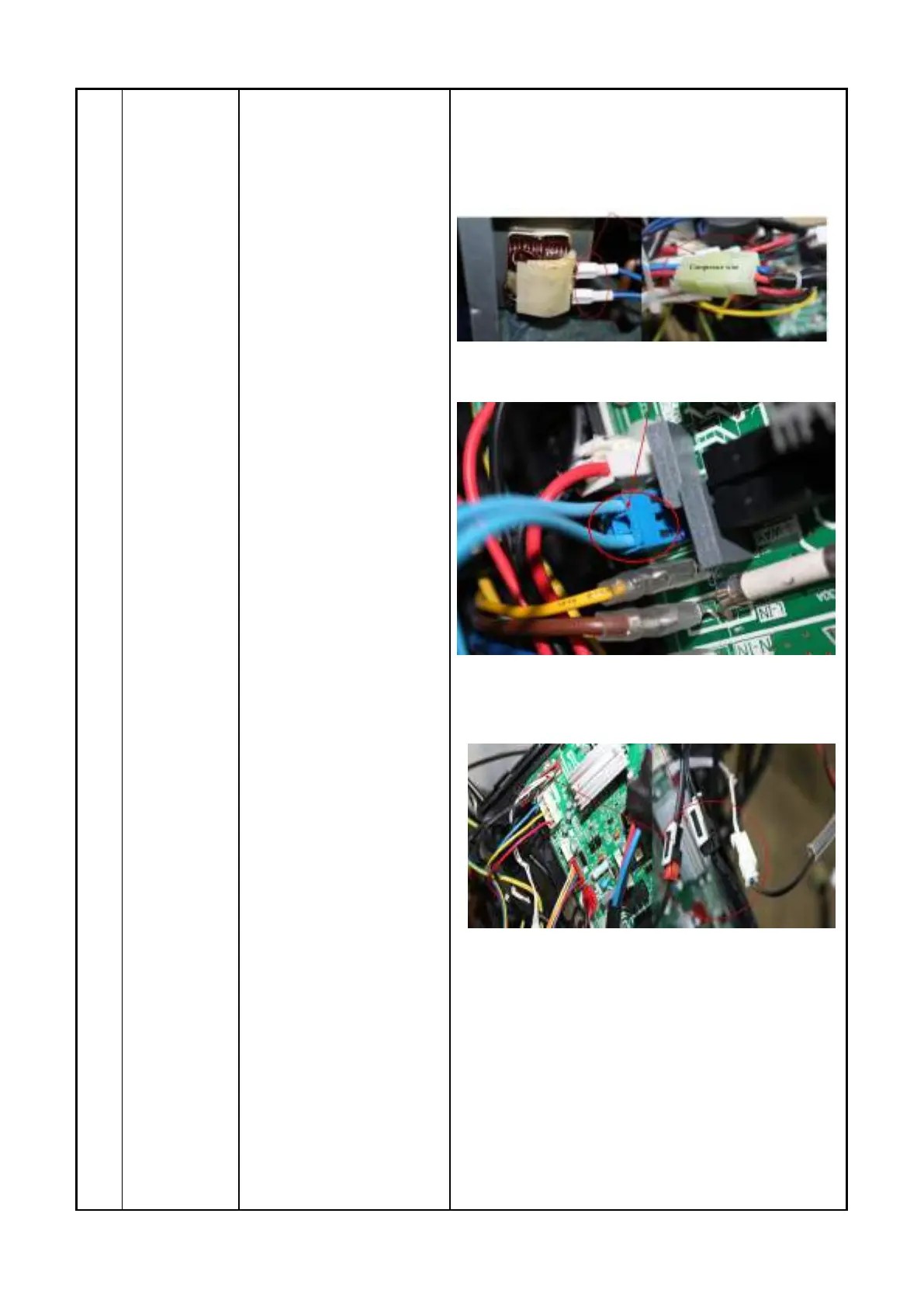

How to remove the
electrical parts.
2) After finish work of
item 1 and item 2, remove
the two connectors for the
compressor and the
reactors.
3) Pull out the two blue
wires connected with the
four way valve.
3) Pull out connectors of
the compressor top temp.
sensor, condenser coil
temp. sensor(T3),outdoor
ambient temp. sensor(T4)
and discharge temp.
sensor(T5).
4)Disconnect the
Compressor crankcase
○
1
○
2
○
3
