Midea CTBU-09HWFN1-M

145
 MOD01-23HFN1-MT0W
No.
Part name
Procedures
Remarks

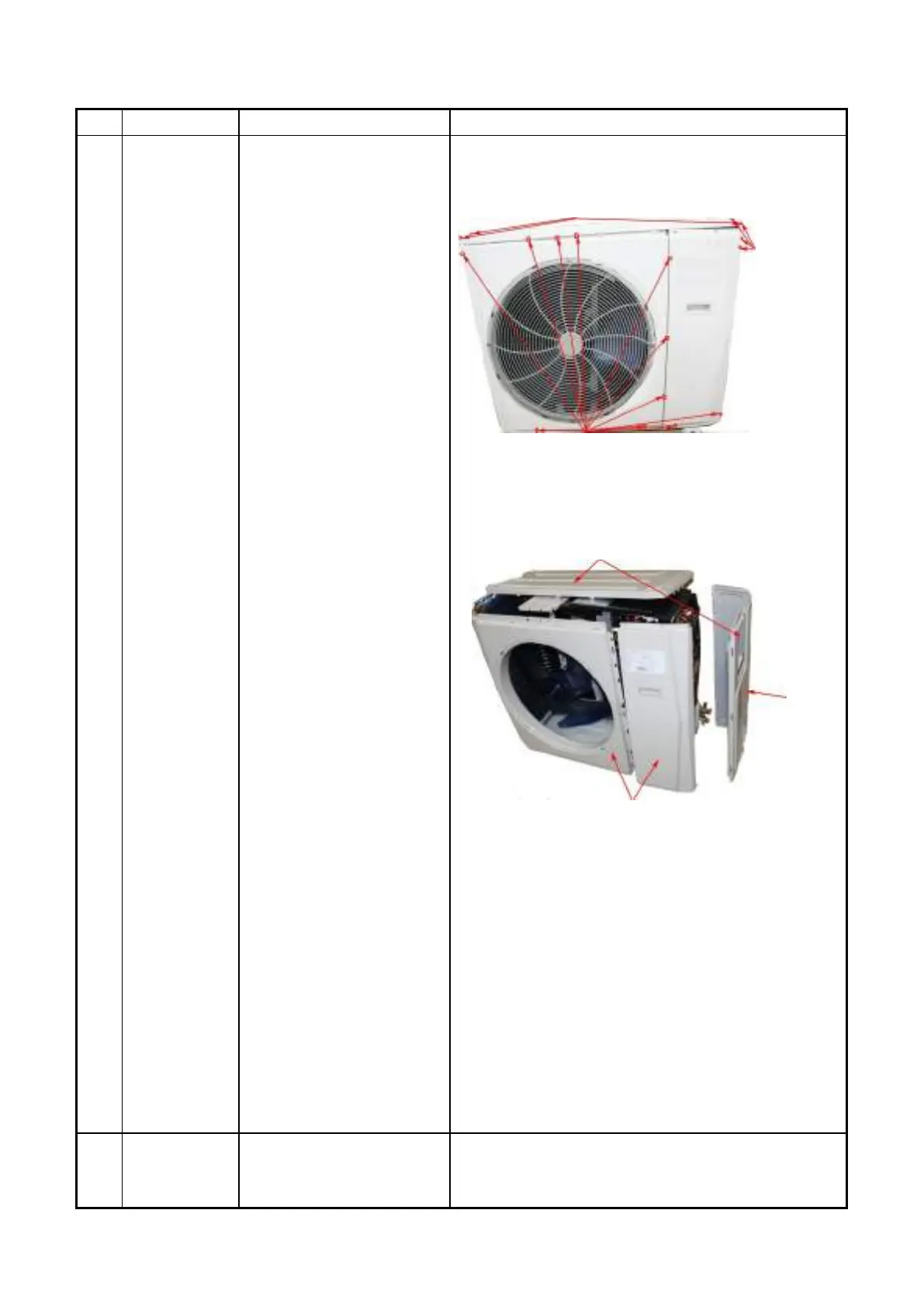

Panel plate
How to remove the panel
plate.
1) Stop operation of
the air conditioner and turn
“OFF” the power breaker.
2) Remove the big handle
first,then remove the top
panel( 7screws)
3) Remove the screws of
the front panel(11 screws)
4) Remove the screws of
the right side plate and
remove the right side
plate.(12 screws)
2
Fan ass’y
How to remove the fan
ass’y.
3 screws of top panel
11 screws of front panel
4 screws
of big
handle
○
2
○
3
○
4
