WATER LEVEL Switch Terminal Port CN5 - SWITCH INPUT:
• To enable this switch, jumper J1 must be removed
• A field supplied float switch can be directly connected to
CN5
• CLOSED contacts = normal
• OPEN contacts = overflow
• When an overflow condition occurs, a signal is sent to the system to turn it off
•Alarm
EE appears.

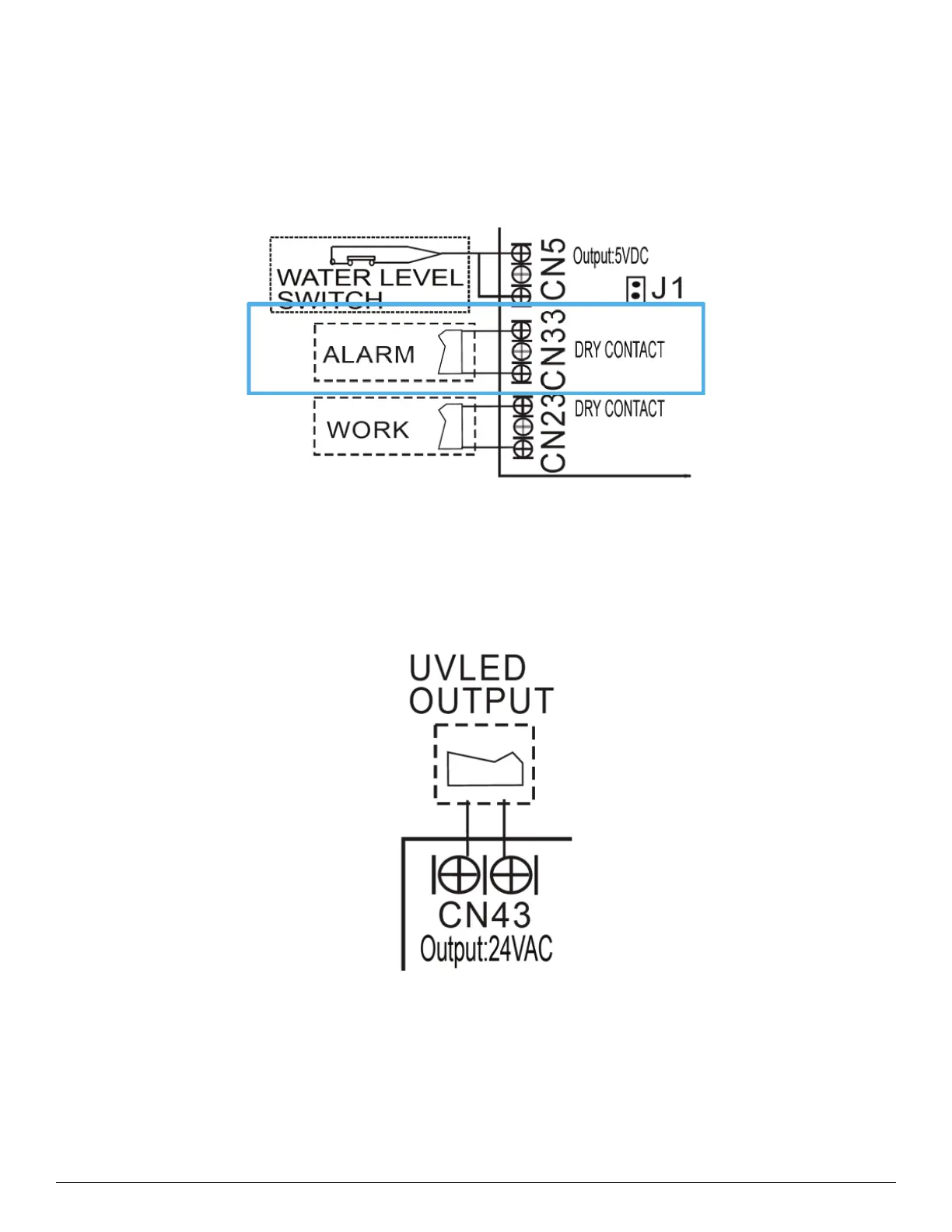

Fig. 3 — Auxiliary Contacts
UV LED terminal port CN43 - OUTPUT 24VAC:
•The UV LED port is linked to the unit's fan
• When the fan is running, the relay is closed and there is an output of
24VAC through the contacts that can be used to power a compatible UV LED LIGHT
• May also be used to power a pilot relay with 24VAC coil to control other peripherals
Fig. 4 — Auxiliary Contacts
