DISASSEMBLY INSTRUCTIONS (CONT.)
Fan Motor and Fan (Cont)
PROCEDURES ILLUSTRATION

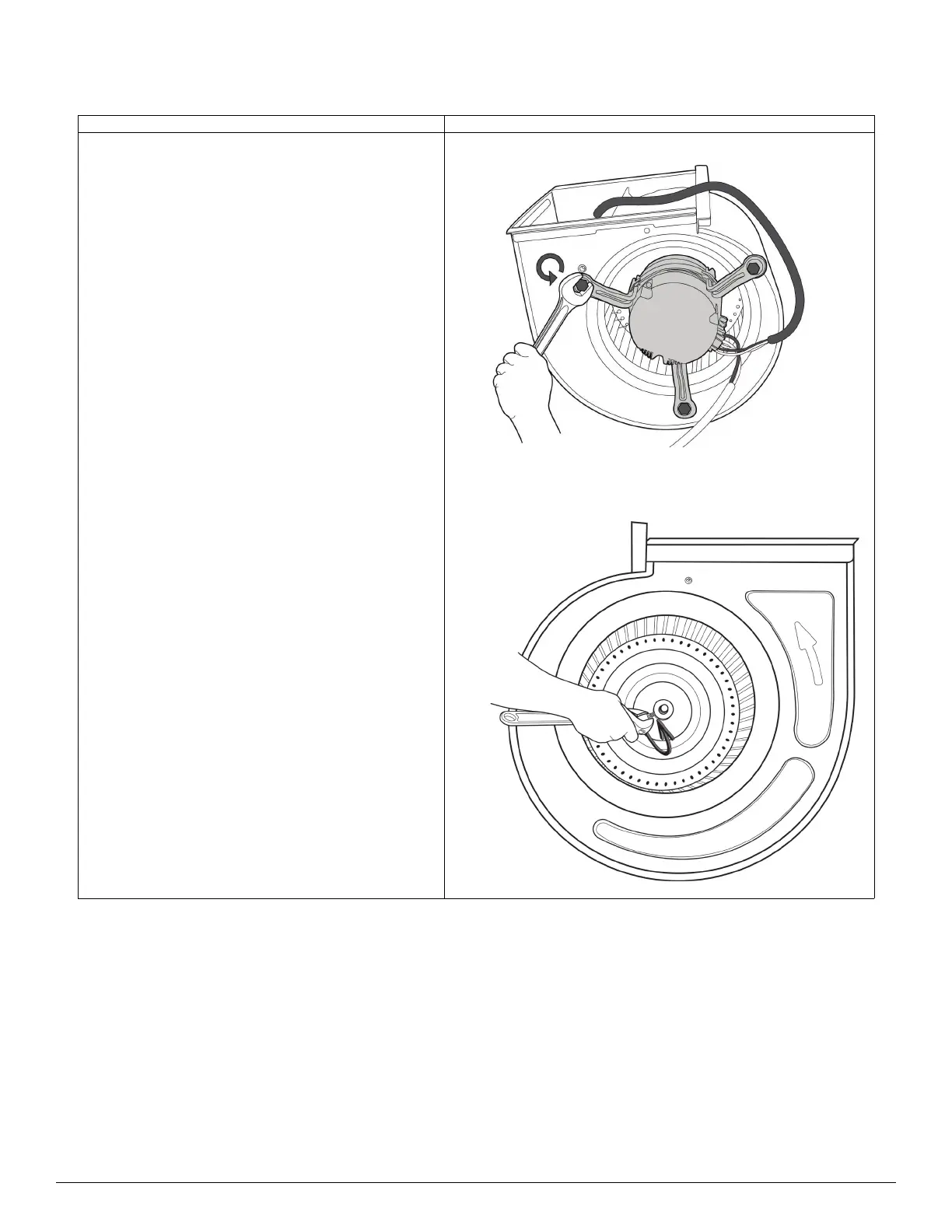

3. Release the 3 nuts securing the fan motor then remove the
fan motor.
4. Release the 1 nut securing the fan and then remove the fan.
