DISASSEMBLY INSTRUCTIONS (CONT.)
Evaporator (Cont.)
PROCEDURES ILLUSTRATION

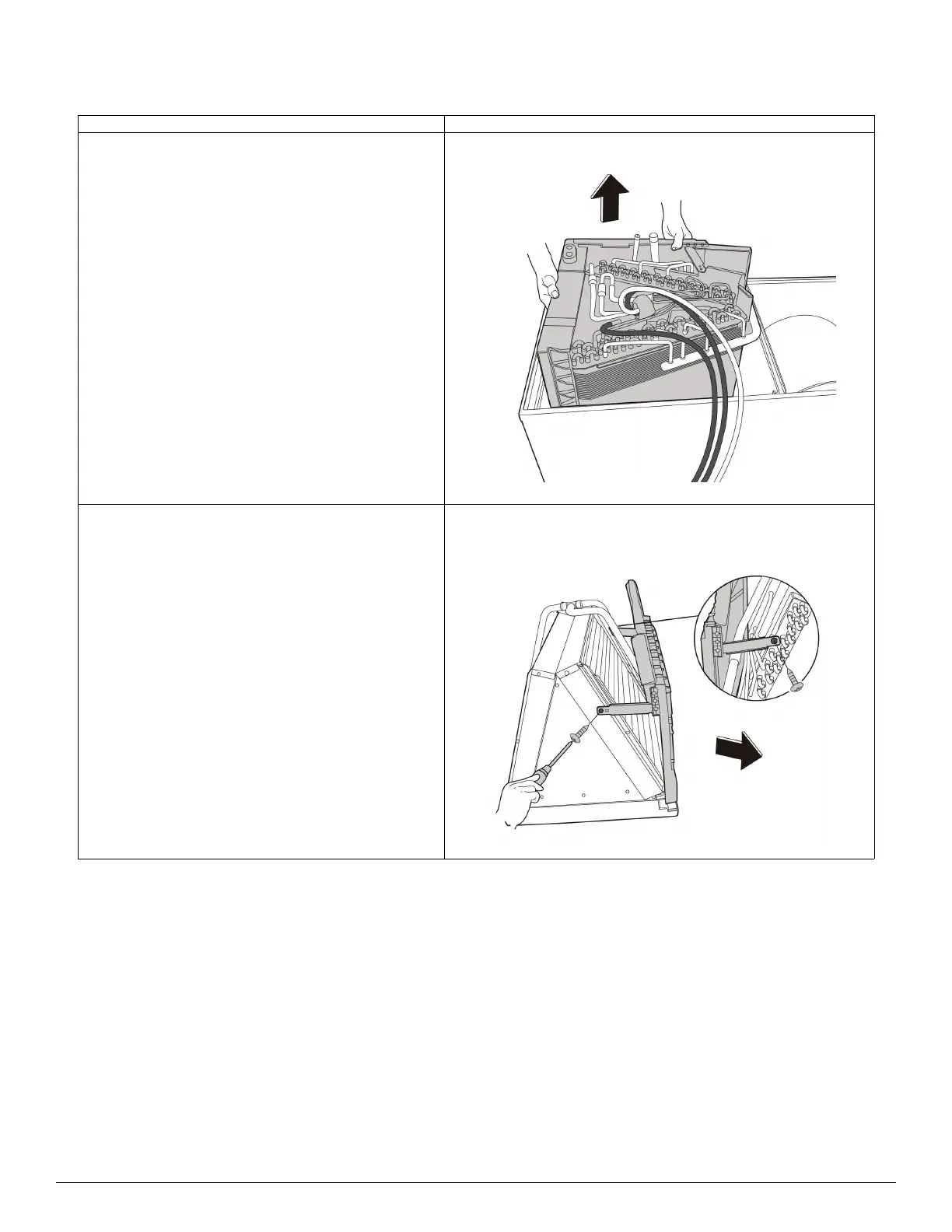

3. Remove the evaporator (with a water collector assembly).
4. Remove the water collector assembly screws (2).
5. Release the evaporator and water collector assembly.
