6.3 How to drain.

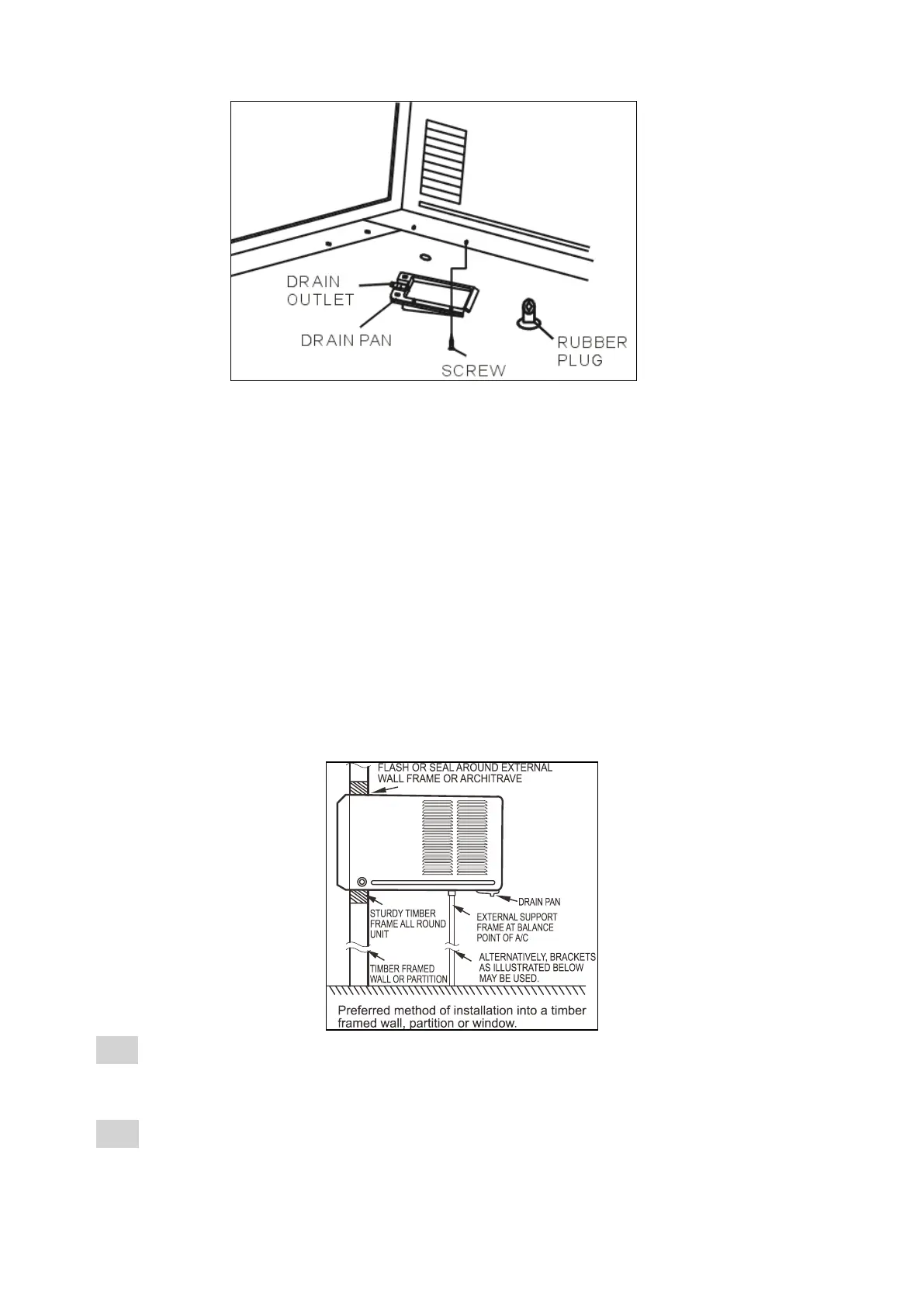

You can choose bottom drainage. See the following procedures to perform bottom drainage:
Remove the rubber plug from the bottom of the cabinet and attach to the back drain hole. For the units
without the bottom rubber plug, just install the drain tray.
2. Take out the drain pan and screws (which provided with your air conditioner accessory).
3. Install the drain pan at the bottom of the unit and secure with screws provide.
4. Connect the drain hose to the outlet located at one side of the drain pan. You can purchase the
drain hose or tubing locally to satisfy your particular needs (Drain hose is not supplied)
6.4 How to install.
6.4.1 Installation of the housing.
Step1
.Remove the air conditioner from it's packaging, remove fixing screws and slide the air conditioner out
of it's housing (Refer to Installation Steps)
Step2
.Prepare the hole in the wall so that the bottom of the housing is well supported, the top has minimum
clearance and the air inlet louvers have clearance as shown below in options A and B
To Next Page
