Midea FLOOR TYPE User Manual

A
Chart 8
6
Ceiling Installation
Chart 7

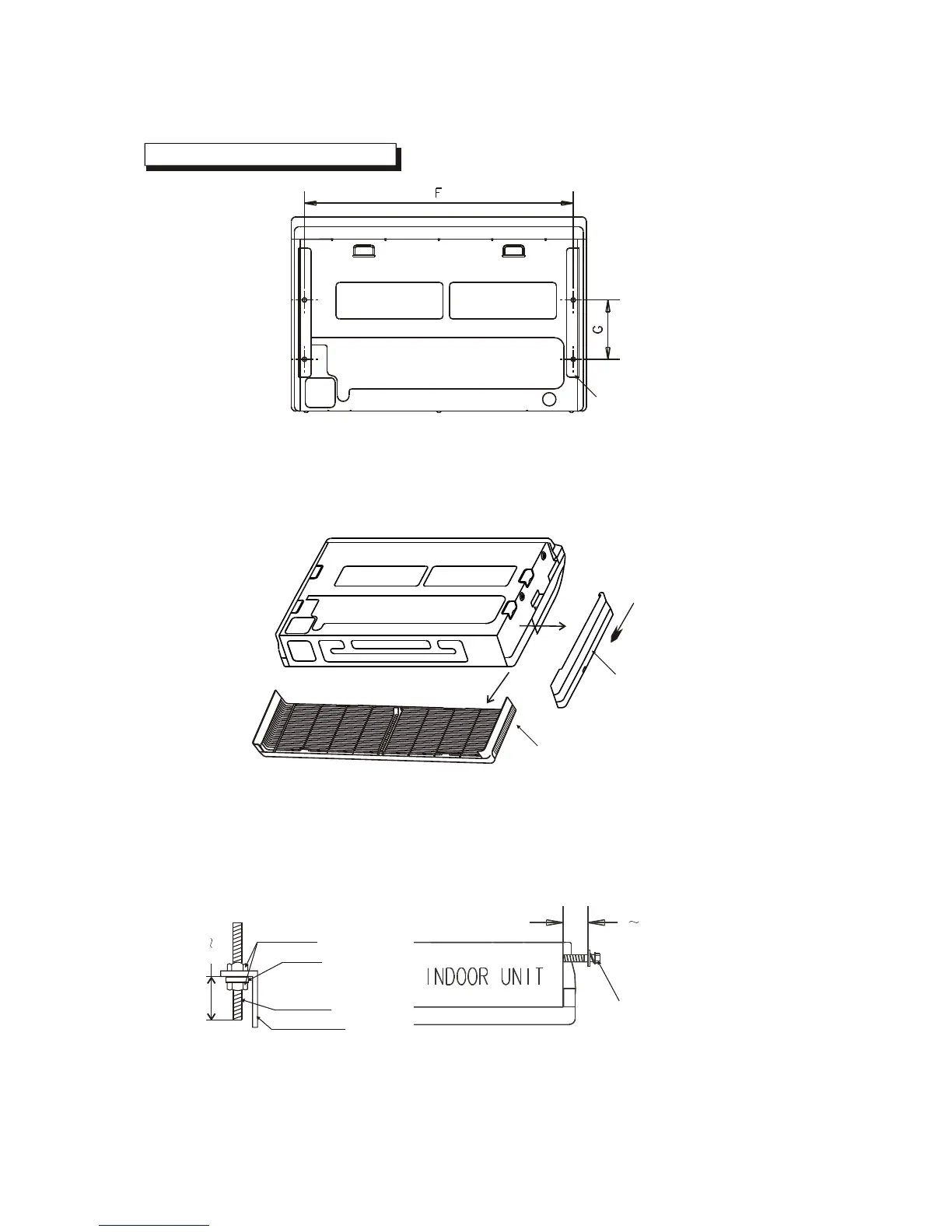

1.Remove the side board and the grille.(Refer to Chart 8)
Side board
Screw nut
Washer
Hanging
screw bolt
Hanging arm
Chart 9
20 25mm
Mounting bolt(max.40mm)
2.Locate the hanging arm on the hanging screw bolt.(Refer to Chart 9)
Prepare the mounting bolts on the unit.( Refer to Chart 10)
Chart 10
8 13mm
Hanging arm
Grille
(For models 48000 and 60000 Btu/h, do not remove the grille.)
