Midea FS40-15AR

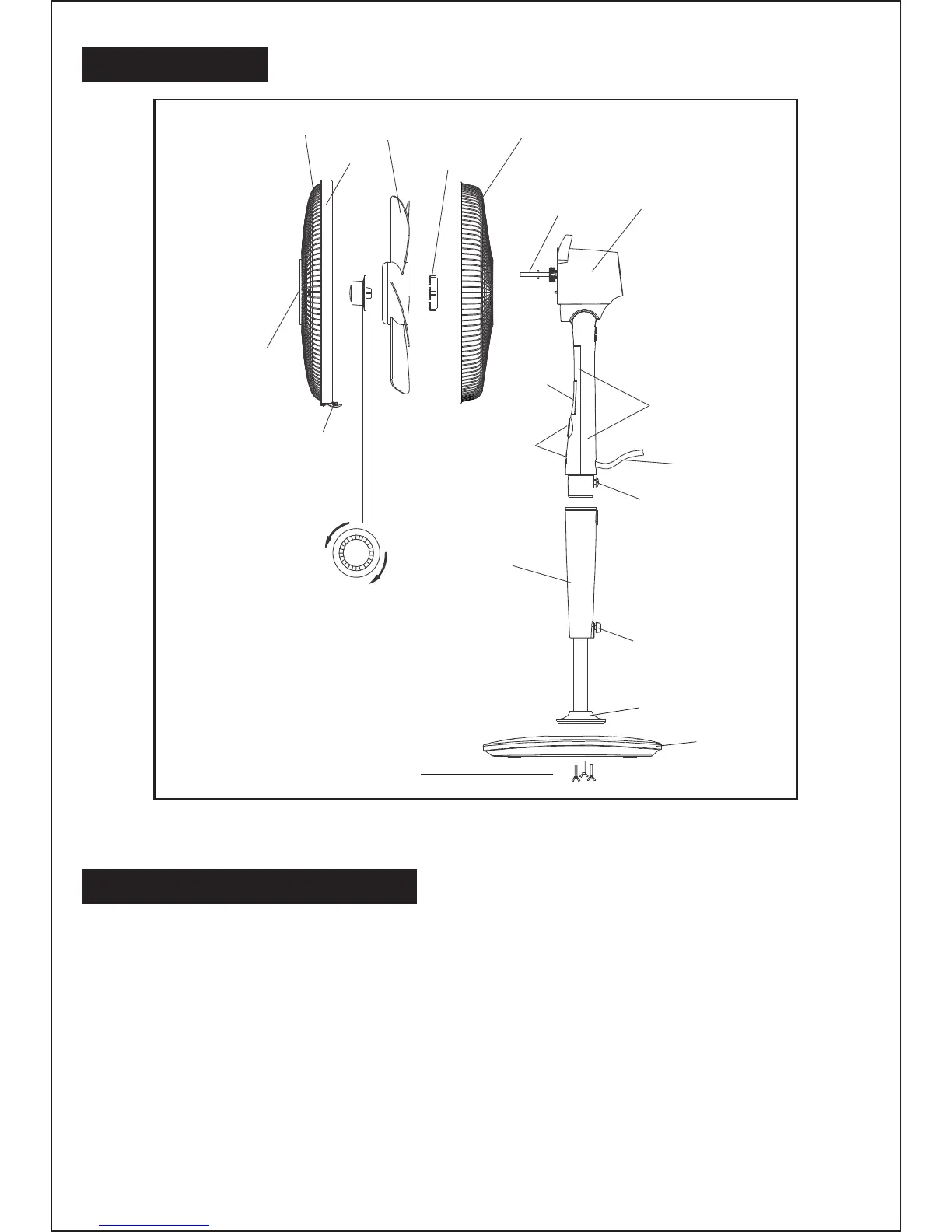

PART FIGURE
1. Take out the base tube, three butterfly screws for fixed base and the round base
from the packing carton;
2. Insert the tube to the round base, be sure to make the positioning screw align with
the base;
3. Screw the three butterfly screws into the holes on the tube and tighten them;
4. Loosen the fastening knob, adjust the height of inner tube and tighten the knob;
5. Take out the control part of the fan from the packing carton, loosen the fastening
screw at the back of the box, insert the inner tube into the bottom hole, make sure
that the fastening screw and the fastening knob in the same position.
ASSEMBLY INSTRUCTION
Note: All the pictures in this manual are for explanation purpose only. Any discrepancy between
the real object and the illustration in the drawing shall be subject to the real subject.
2
Front Grill
Center Piece
Circlip
Clip
Plastic Nut
Control Part
Fan Body
Display
Window
Base
Column Cover
Pole
Tighten
Loosen
Spinner
Rear Grill
Shaft
Motor
Screw
Butterfly Screws For Fixed Base
Power Cord
Female Terminals
Blade
