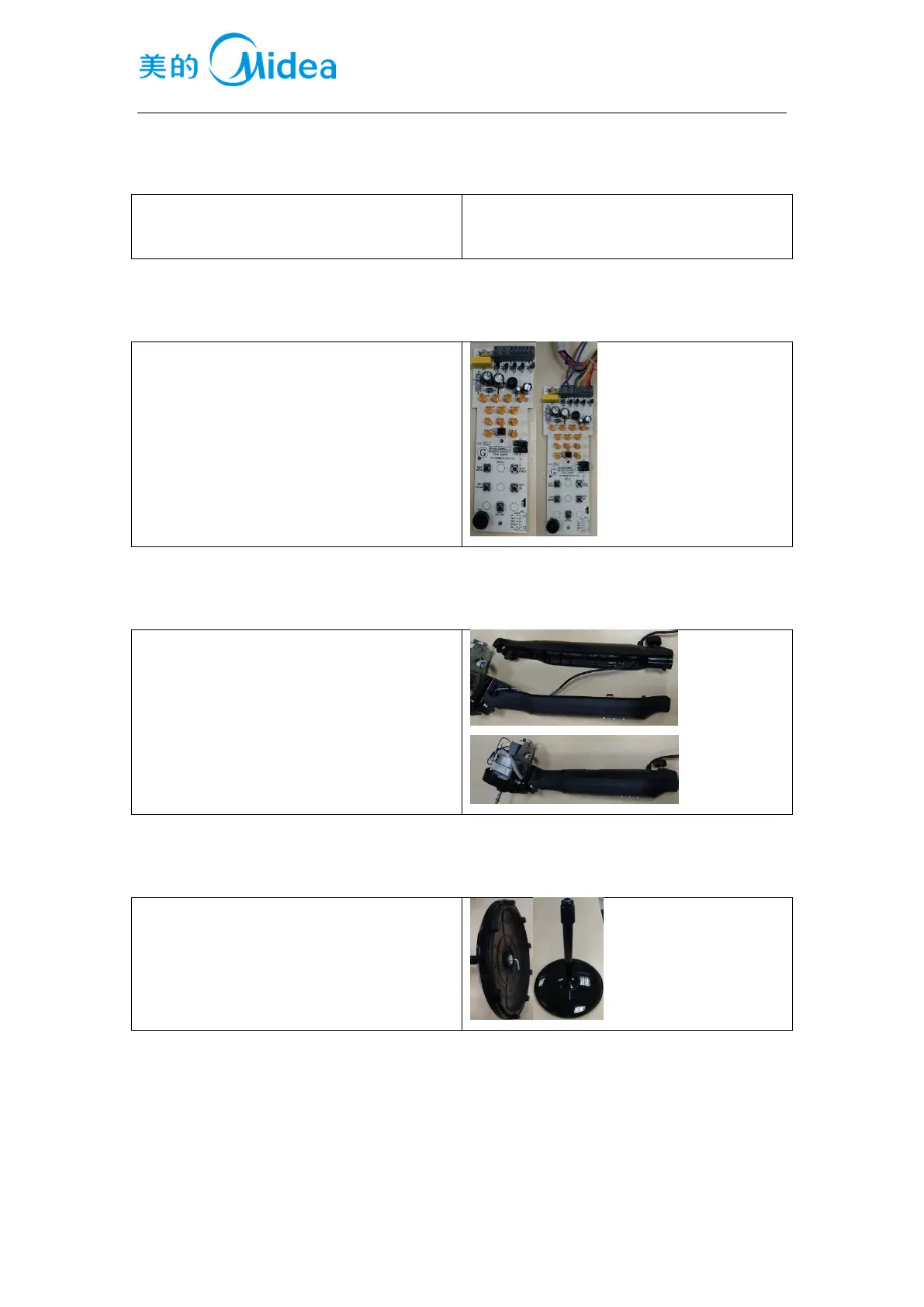

维修手册 Service Manual, 2017 v1.0
9 / 13
3.5 开关和定时器的安装 Setting of the gear
使用螺钉或者扣位将开关和定时器安装到扇
盒前壳上
3.6 电线的安装 Super cool
按照接线图，将各档位线和定时器线、电源
线连接在开关和定时器上，有地线的还需要
连接地线
3.7 扇盒后壳的安装 Super cool
将电线固定好后，将扇盒前后壳装配在一起，
使用螺钉固定
3.8 底盘的安装 Super cool
使用七字螺栓、索母、蝶形螺母将底盘与立
柱管连接，或使用螺钉将底盘及立柱管连接，
并装好装饰盖
