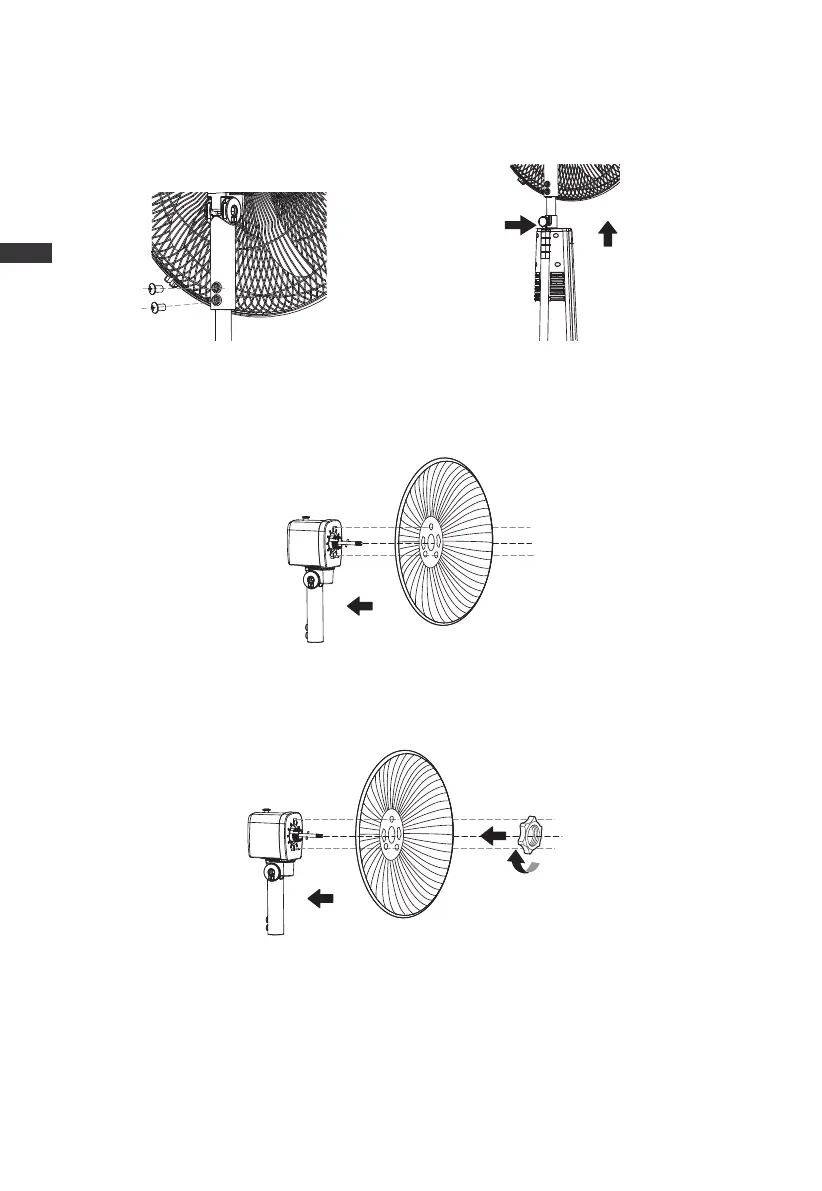

3 Fan head installation
3.1 Install and fix the fan body by way of tightening or loosening install screw.
3.2 Pull out and fix the internal pole (column) after adjusting the height by way of
tightening or loosening the knob.
4 Installation of Rear Grill
Align the holes of rear grill with the protruded points on the motor housing.
5 Installation of Plastic Nut
Screw clockwise the plastic nut tightly to fasten the rear grill.
Install screw Height Adjustment
Height
Adjustment
Key
Clockwise
EN
