PRODUCT INSTALLATION
Installation Procedures
NOTE
Before installation, first remove chasis screws from the pole, remove the Spinner and
Plastic nut from the motor shaft, and then install.

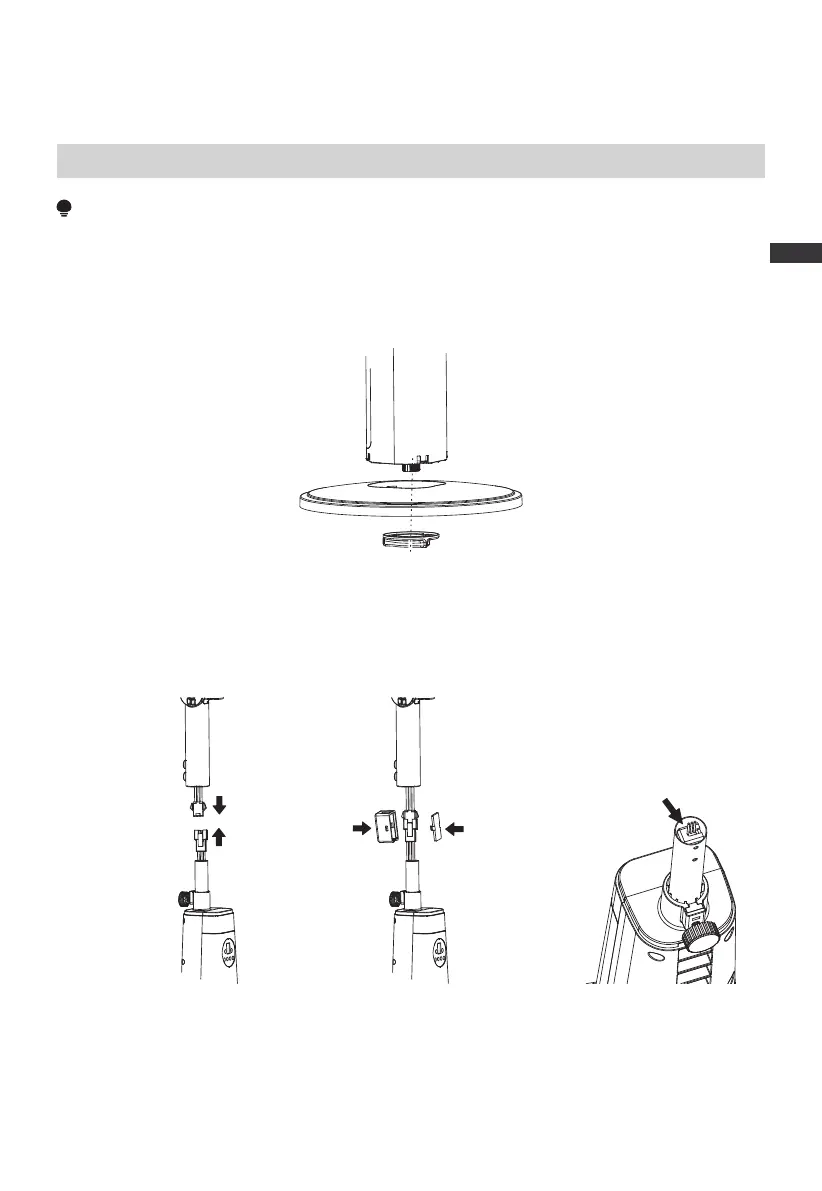

1 Chassis installation
Align the lower pole and the chassis, and then fasten securely with chassis screws.
2 Cable terminal protection box installation
2.1 The terminal of the fan head is connected to the terminal of the fan body.
2.2 Put the inserted terminals into the protective box and cover the upper protective box.
2.3 Place the protection box with the terminal installed into the pipe hole of the fan body.
connecting
terminal male
and female
Protection box installation Protective box placement
EN
To Next Page
