Midea FZ10-21CR

维修手册 Service Manual, 2017 v1.0
5 / 12

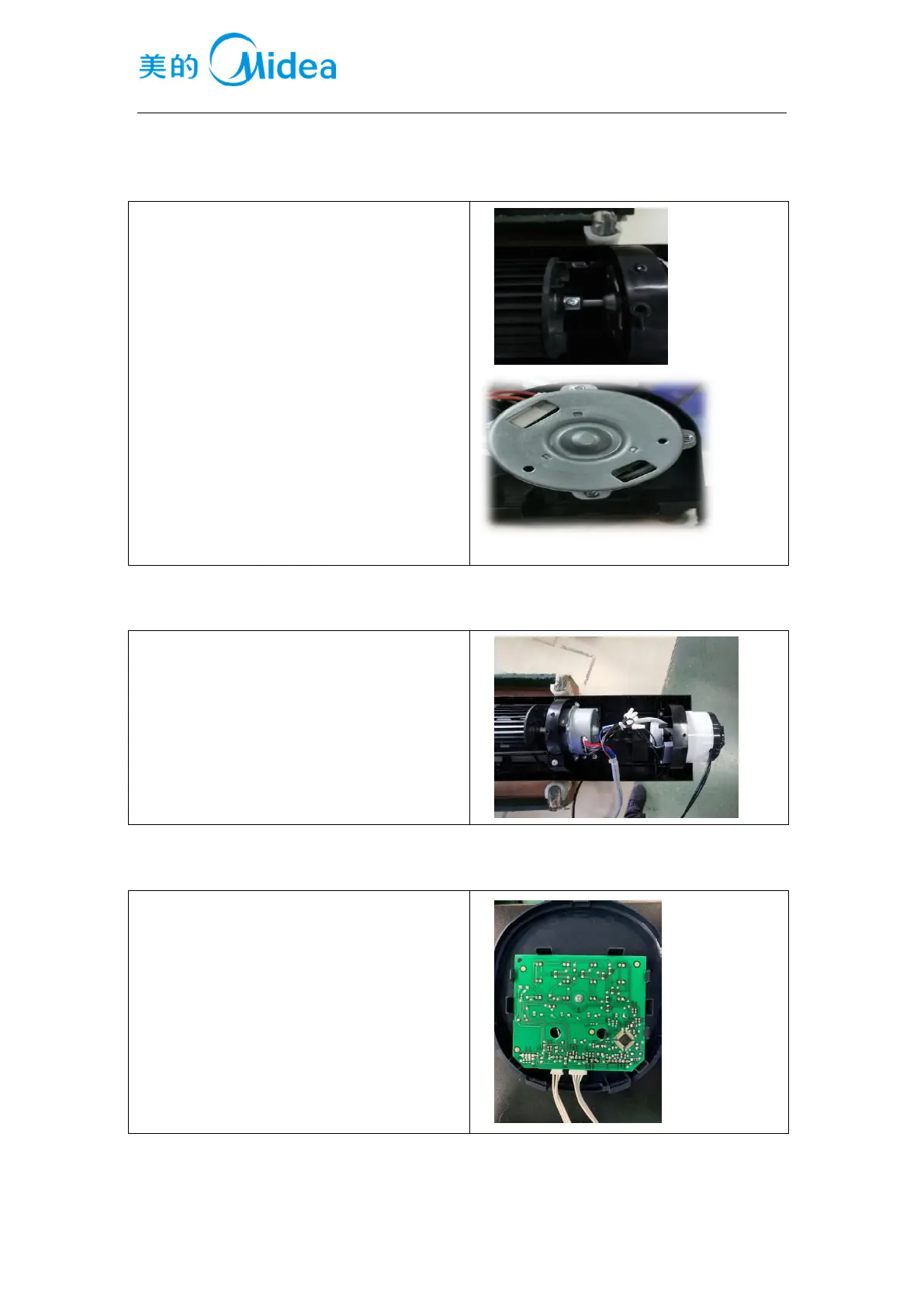

2.4 电机、风轮拆卸 Motor and wind wheel dismantling
用螺丝刀取下风轮的固定螺钉，用螺丝刀取下
电机安装的固定螺钉，即可取下电机、风轮。
Remove the fixing screw of the wind
wheel with a screwdriver, remove the
fixing screw of the motor installation with
a screwdriver, that is, remove the motor
and wind wheel.
2.5 摇头组件拆卸 Rotating head assembly disassembly
用螺丝刀取下摇头组件的固定螺钉，即可取下
摇头组件。
Remove the setting screw of the shaking
component with a screwdriver to remove the
shaking component.
2.6 控制电路板拆卸 Control Board Removal
用螺丝刀松开电路板螺钉，拆下控制电路板。
Use a screwdriver to loosen the board screw and
remove the control board.
