Midea FZ10-21CR

维修手册 Service Manual, 2017 v1.0
7 / 12

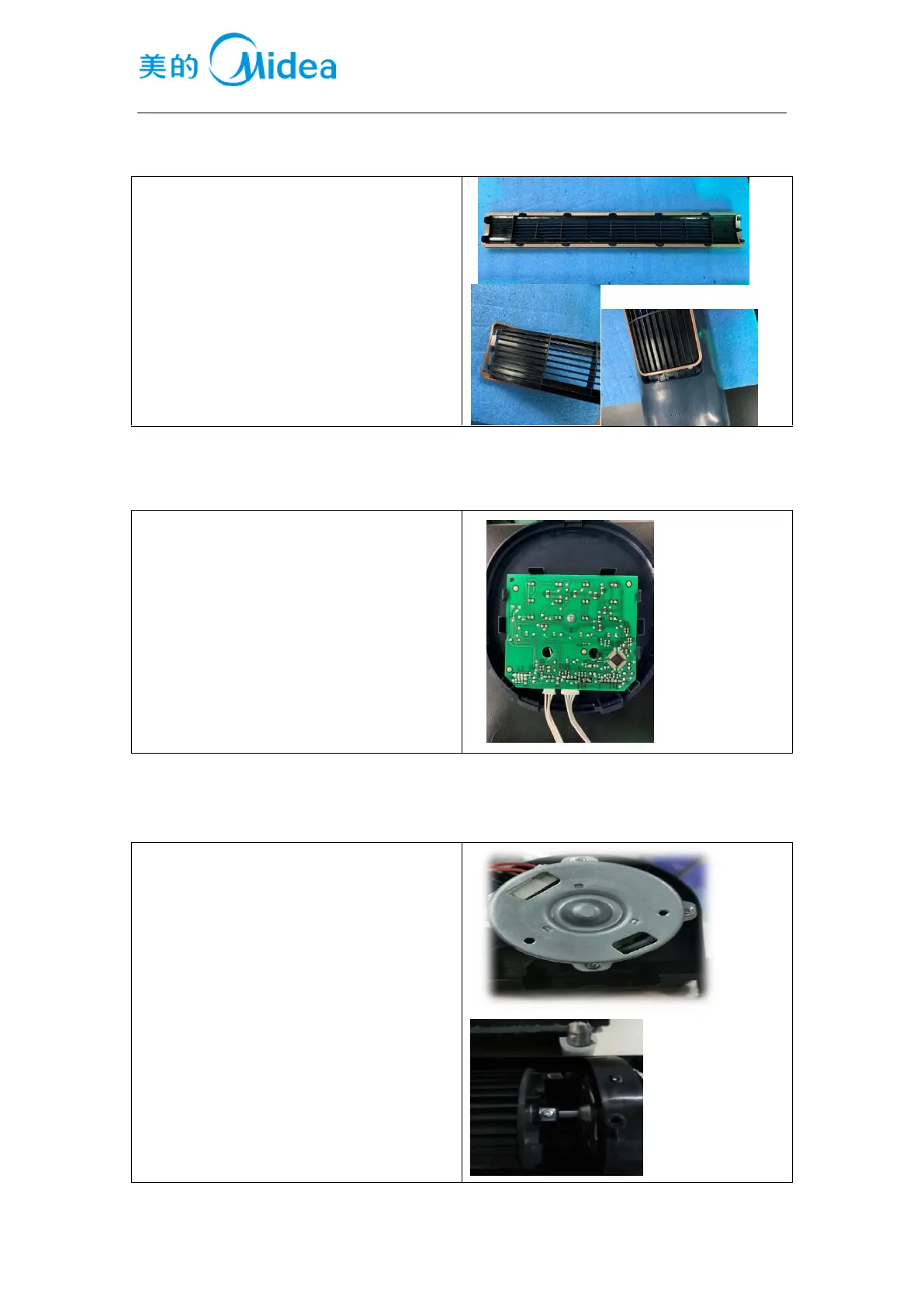

3.1 出风口框、装饰件安装 Installation of air outlet frame and decorative pieces
1、将装饰件安装在出风口框上；
2、将出风口框装在前壳上
1. Install the decorative pieces on the air outlet
frame;
2. Install the air outlet box on the front shell.
3.2 控制电路板安装 Control board installation
将控制电路板安装在顶盖上
Install the control board on the top cover.
3.3 风轮、电机安装 Installation of wind wheel and motor
将电机、风轮安装在风道上
Install the motor and wind wheel on the air
duct.
