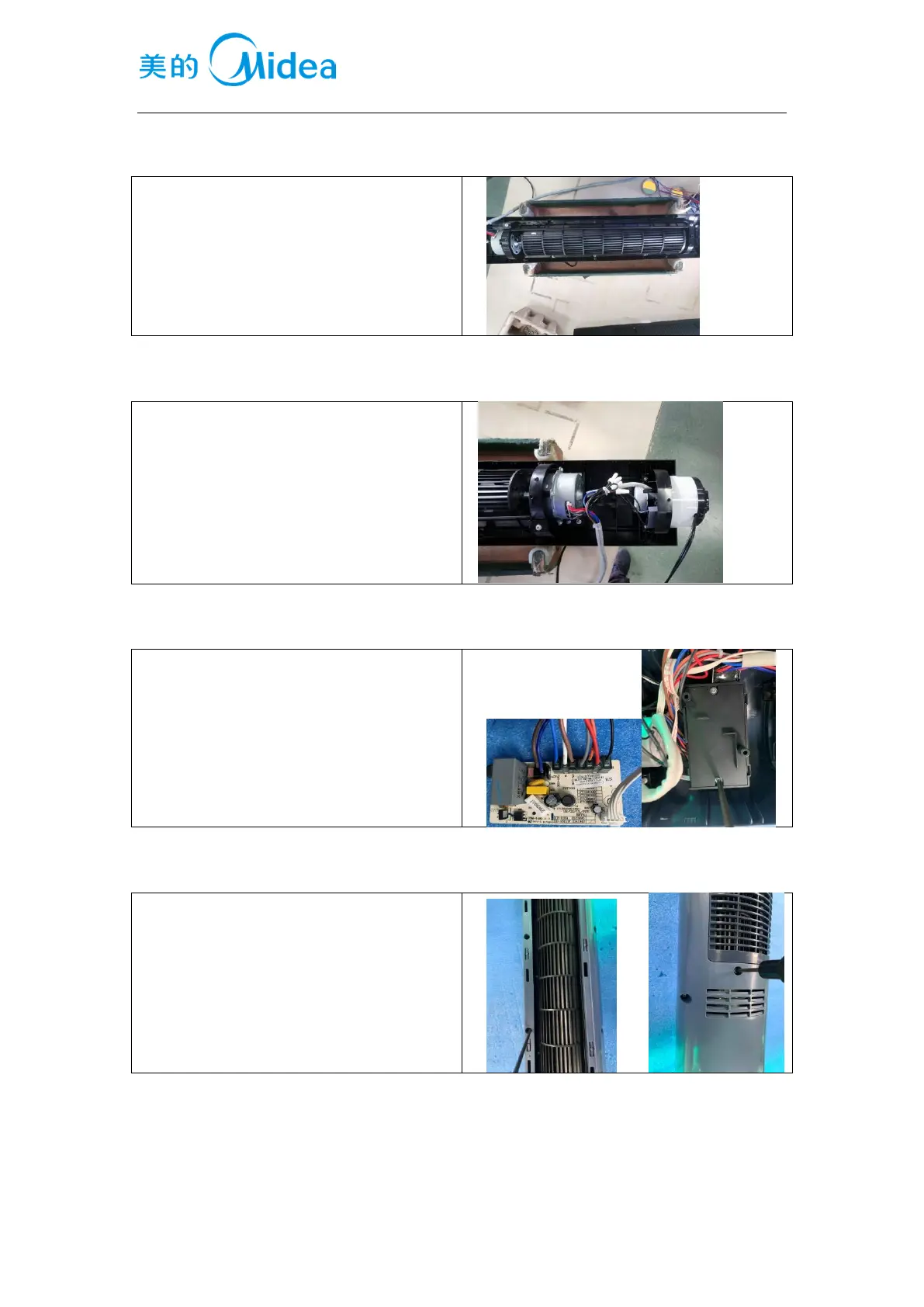

3.4 风道组件安装 Air duct assembly installation
将风道组件安装在前壳上
Install air duct assembly on the front housing.
3.5 摇头组件安装 Rotating head assembly installation
将摇头组件安装在前壳上
Install the oscillating assembly on the front
housing.
3.6 电源电路板、防火盒安装 Power circuit board, fireproof box installation
1、将电源电路板插好线装入防火盒；
2、将防火盒安装在前壳上。
1. Insert the power circuit board into the
fireproof box;
2. Install the fireproof box on the front shell.
3.7 后壳、防护网安装 Install rear shell and protective net
安装装后壳和防护网。
Install the rear shell and protective mesh.
