Midea M26-50 - Dimensions and Connection Points (M26)

7
GAS INLET
3/4” (NOM 20mm)
PRESSURE RELIEF
VALVE & WATER
INLET FILTER
COLD WATER INLET
1/2” (NOM 15mm)
REMOTE CONTROLLER
CABLE POINT WIFI
DEVICE POINT
HOT WATER
OUTLET
1/2” (NOM 15mm)

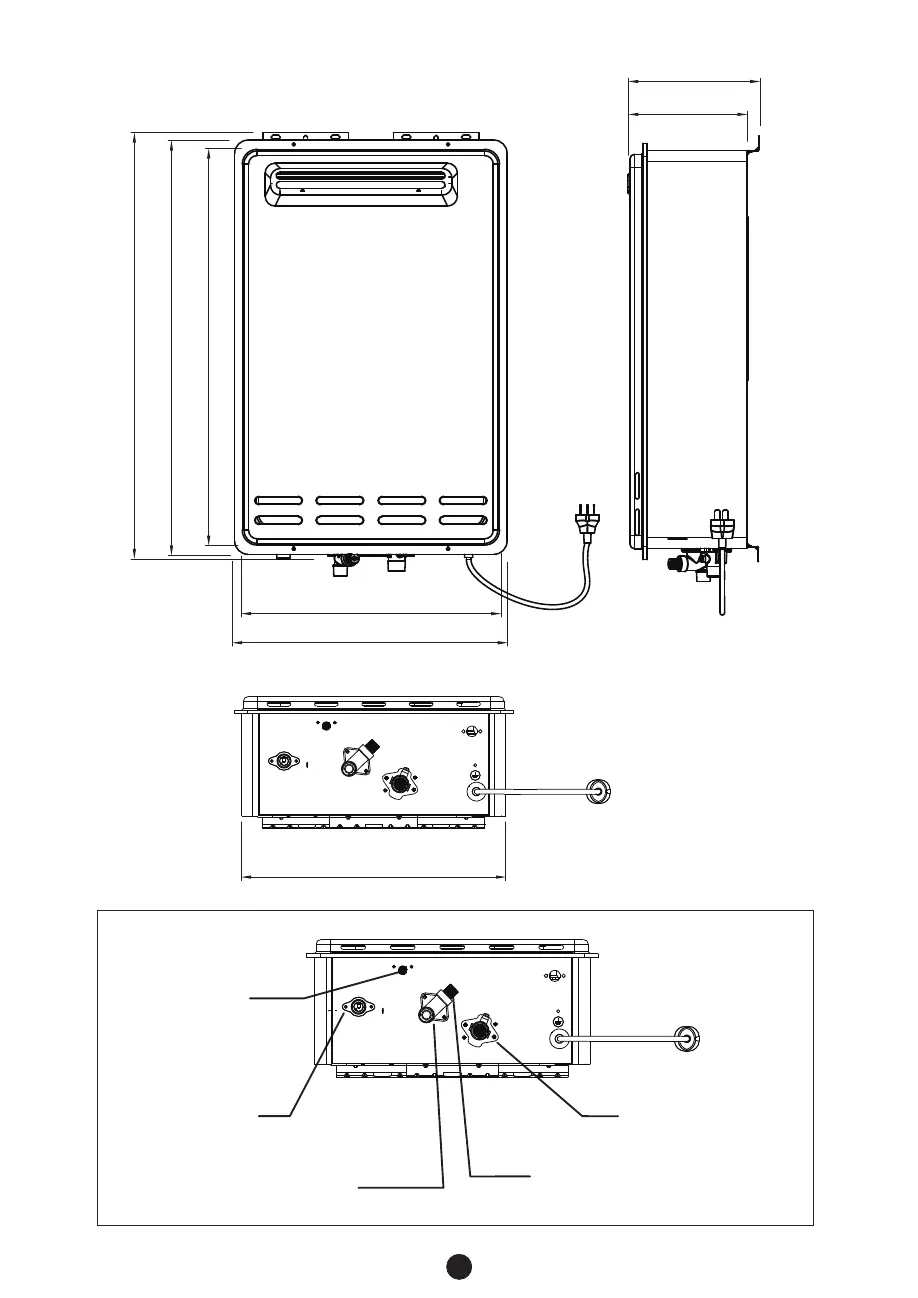

3.2 DIMENSIONS AND CONNECTION POINTS (M26/M26-50)
195
176
385
413
600 646 628
390
