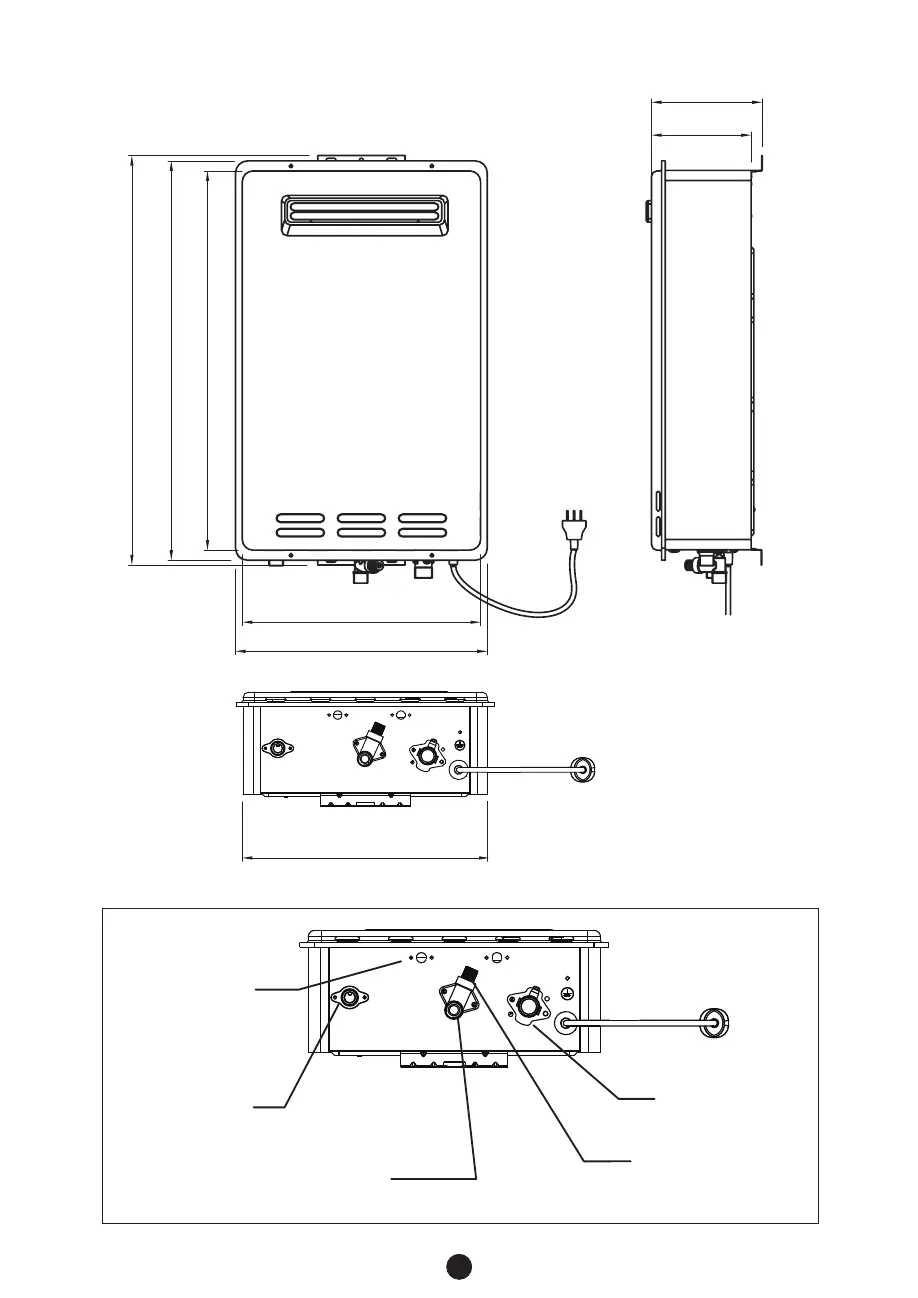

Midea M26 - DIMENSIONS AND CONNECTION POINTS (M20;M20-50)

6
355
355
375
565 595 610
165
148
GAS INLET
3/4” (NOM 20mm)
PRESSURE RELIEF
VALVE & WATER
INLET FILTER
COLD WATER INLET
1/2” (NOM 15mm)
HOT WATER
OUTLET
1/2” (NOM 15mm)
REMOTE CONTROLLER
CABLE POINT WIFI
DEVICE POINT
3.1 DIMENSIONS AND CONNECTION POINTS (M20/M20-50)
