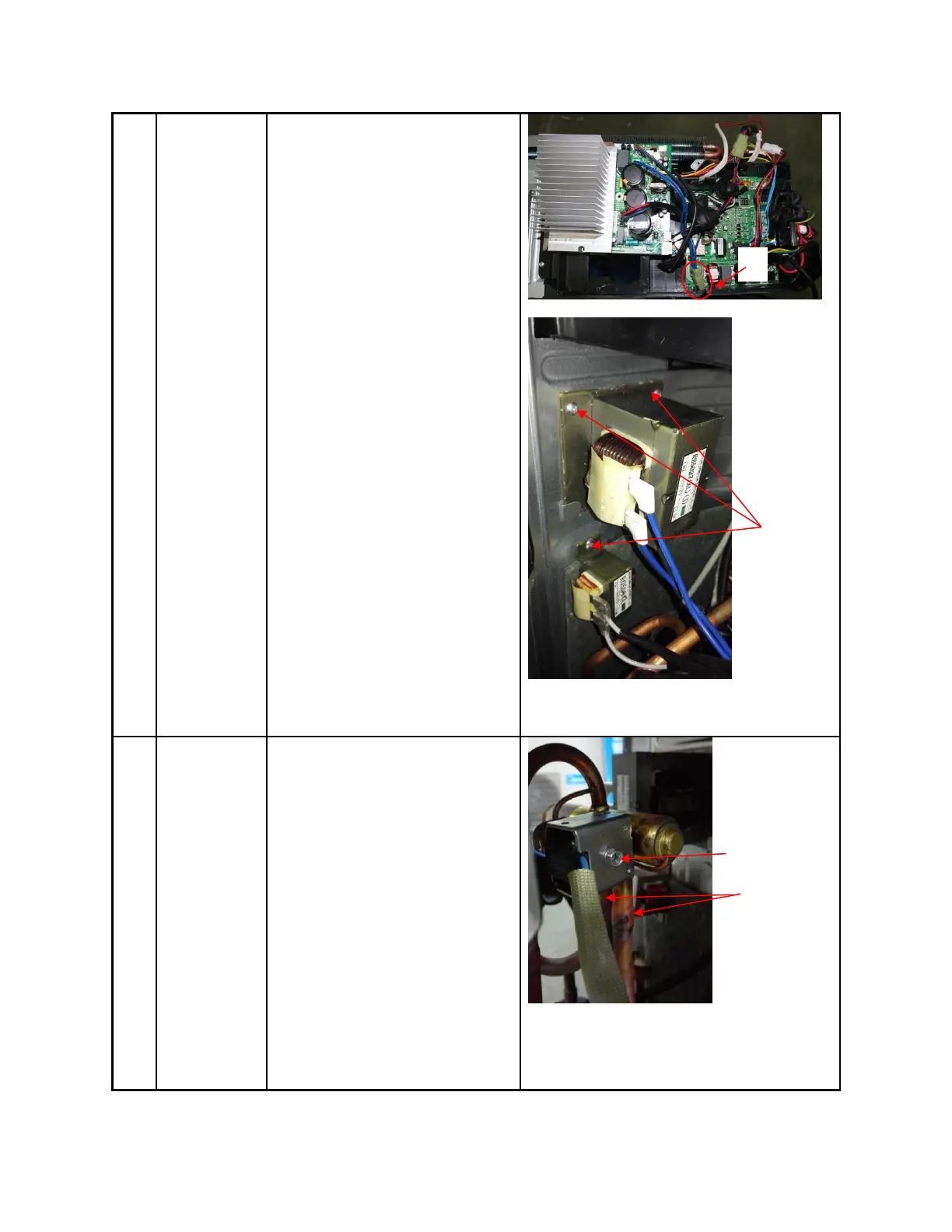

Reactor
How to remove the reactor
1) Perform work of item 2
2) Unfasten the connector
between IPM and reactor.
3) Remove three screws of
reactor, and remove the
reactor.
6
The 4-way
valve
How to remove the 4-way
valve
1) Perform work of item 2.
2) Extract refrigerant gas.
3) Remove the electrical parts
from item 3.
4) Remove fixing screw of the
coil, and remove the coil.
5) Detach the welded parts of
4-way valve and pipe.
Screws of
cover of
inductance
Coil
Welded parts
