Midea MAE70-S1402GPS User Manual

Service manual for portable washer Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－ 23 －

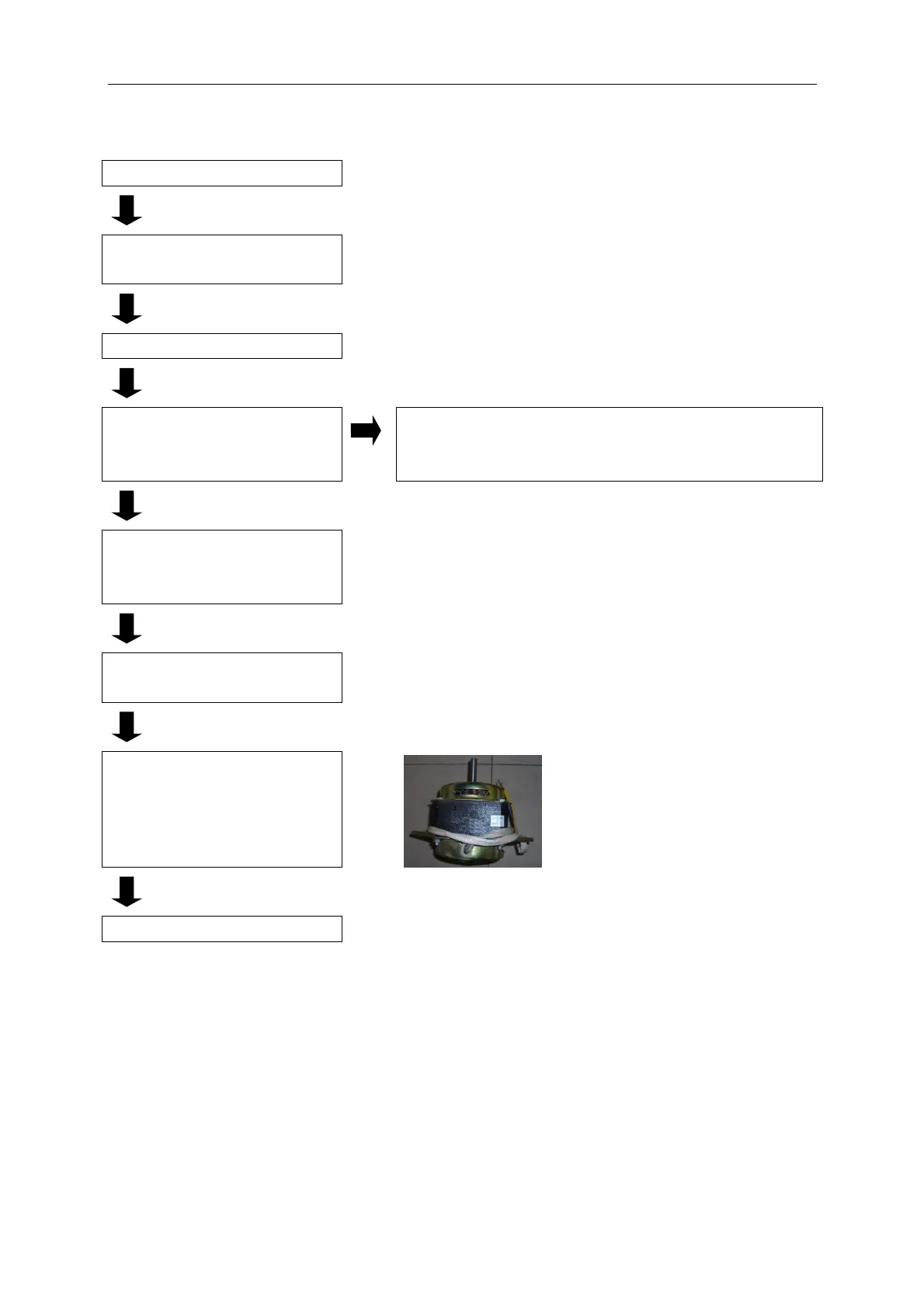

Unit doesn’t operate
Unit doesn’t operate
Check the power supply. Correct if the power is not supplied to the unit, the plug,
the circuit breaker, etc.
Any error code? Check the unit according to Error Code.
Check sound of motor.
Yes
Check the driving belt. Replace if loosen or broken.
Check the wiring connection of
motor. Check the wires for
open cycled.
Replace the harness if open cycled.
Check the motor capacitor. Check the capacitor with an avometer. The rated value is
printed on its body. Replace if failure.
Check the motor. Replace if
failure.
The resistance of coils should be
in range from 4 to 6Ω between
yellow and light blue wires, between
blue and light blue wires.
Replace the PCBs.

Midea MAE70-S1402GPS Specifications

General

Style	top load
Color	white
Washer Capacity	2.1 cubic feet
Max Spin Speed	800 revolutions per minute
Internal Heater	no
Control Panel	digital
Delay Start / End	yes
Child Lock	no
Steam	no
Annual Energy Consumption	330 kilowatt hours

Weight and Dimensions

Depth	21.44 inches
Height	37 inches
Width	22.06 inches
Net Weight	79.3 pounds
