Page 15
Installation
Instructions

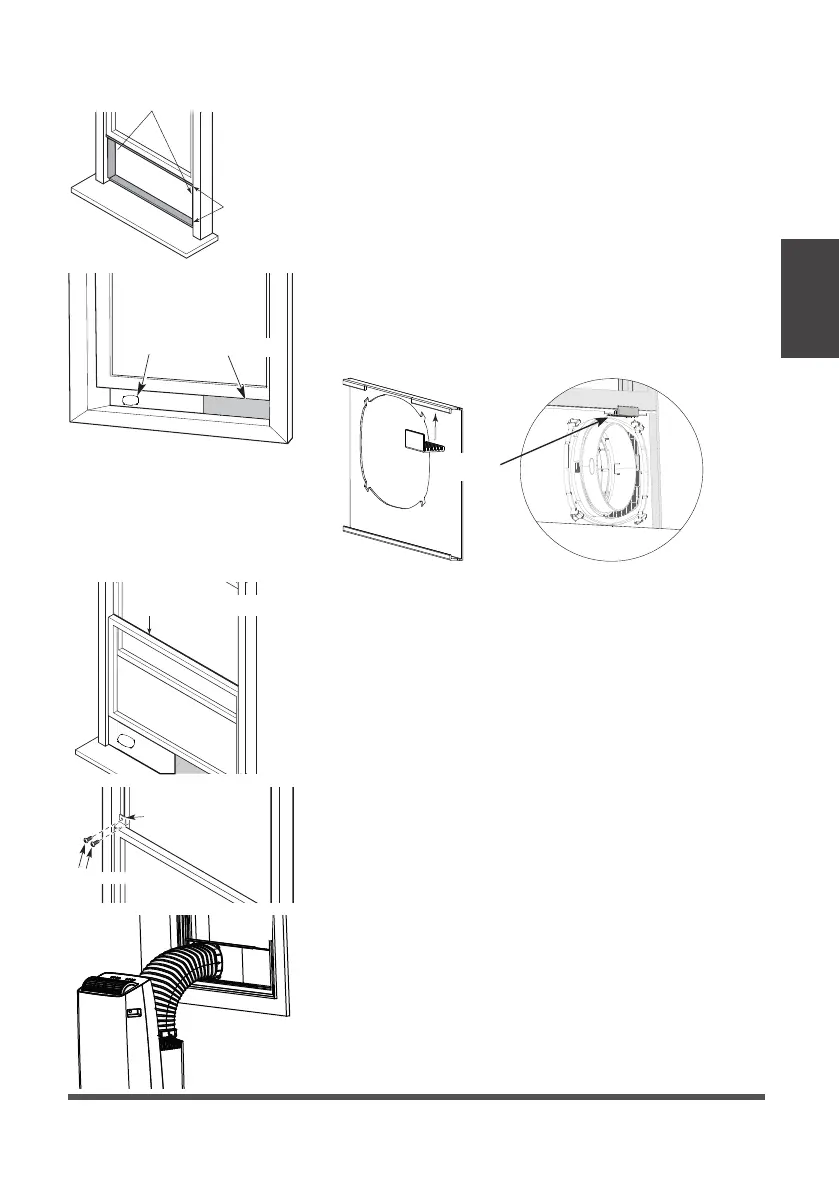

Type 1: Hung window installation
1. Cut the adhesive foam seal A and B strips to the
proper lengths, and attach them to the window
sash and frame as shown.
2. Insert the window slider assembly into the window
track. If the hose opening is covered by the lip of
the window frame, rotate the panel so the thicker
side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace
against the window so the window slider panels do
not lean inward.
Foam seal B
(Adhesive type-shorter)
Foam
seal A
(Adhesive
type)
Window
slider
Window
slider
(if required)
Window
Kit Brace
Foam seal C
(Non-adhesive type)
Security Bracket
2 Screws
3. Cut the non-adhesive foam seal C strip to match
the width of the window. Insert the seal between
the glass and the window frame to prevent air and
insects from getting into the room.
4. If desired, install the security bracket with 2 screws
as shown.
5. Attach the hose to the window slider panel by
inserting the end of the hose into the opening on
the slider.
To Next Page
