Installation
Instructions
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
Window slider A
Window slider B
(if required)

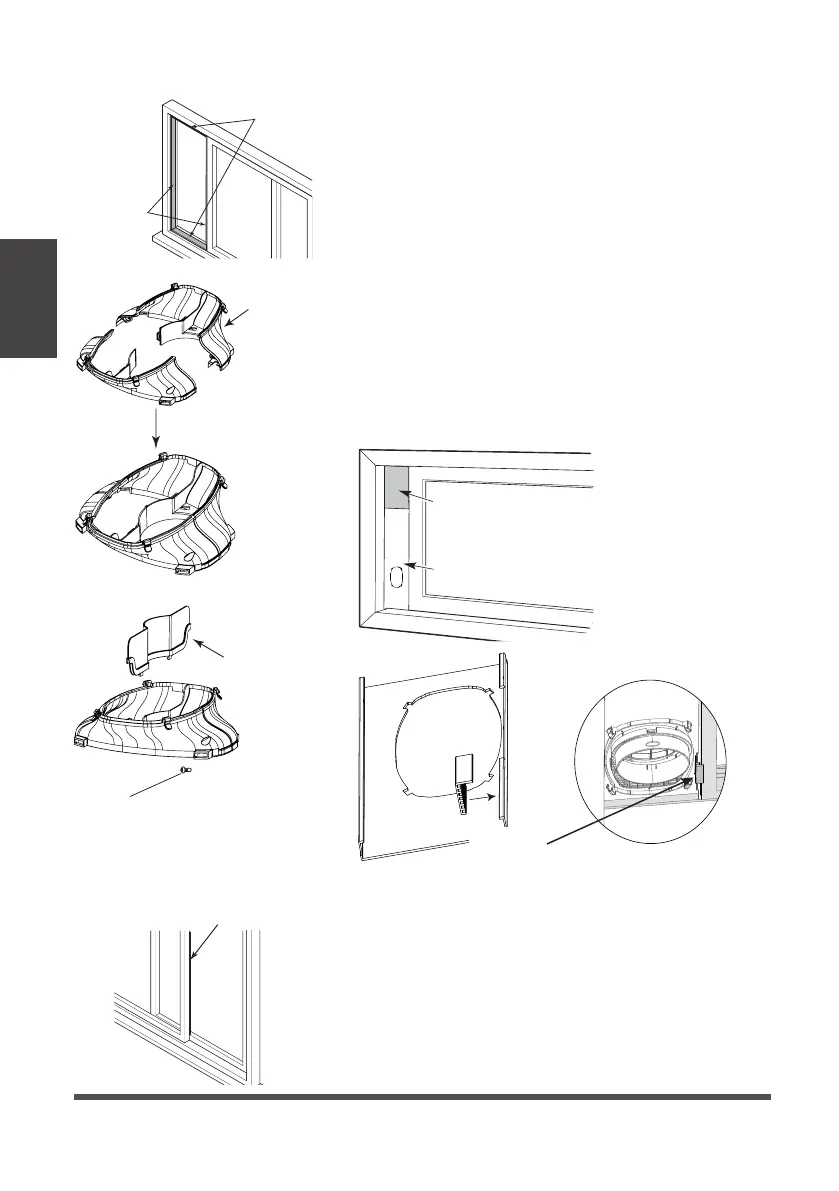

Type 2: Sliding window Installation (Optional)
1. Cut the adhesive foam seal A and B strips to the
proper lengths, and attach them to the window
sash and frame as shown.
2. Assembling the Sliding Window Adapter (Only
needed for Sliding Window applications): Align
both halves of the sliding window adapter and
connect them. Then, attach the air divider to the
newly formed window adapter on the outdoor
side. The fully assembled adapter should look like
the image at the left.
3. Insert the window slider assembly into the window
track. If the hose opening is covered by the window
frame, rotate the panel so the thicker side faces the
window frame. Attach the Window Kit Brace to the
back of the hose panel to brace against the window
so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the
window slider for improved rigidity.
Window
Kit Brace
Foam seal C
(Non-adhesive type)
5. Cut the non-adhesive foam seal C strip to match
the window height. Insert the foam seal between
the glass and the window frame to prevent air and
insects from getting into the room.
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
