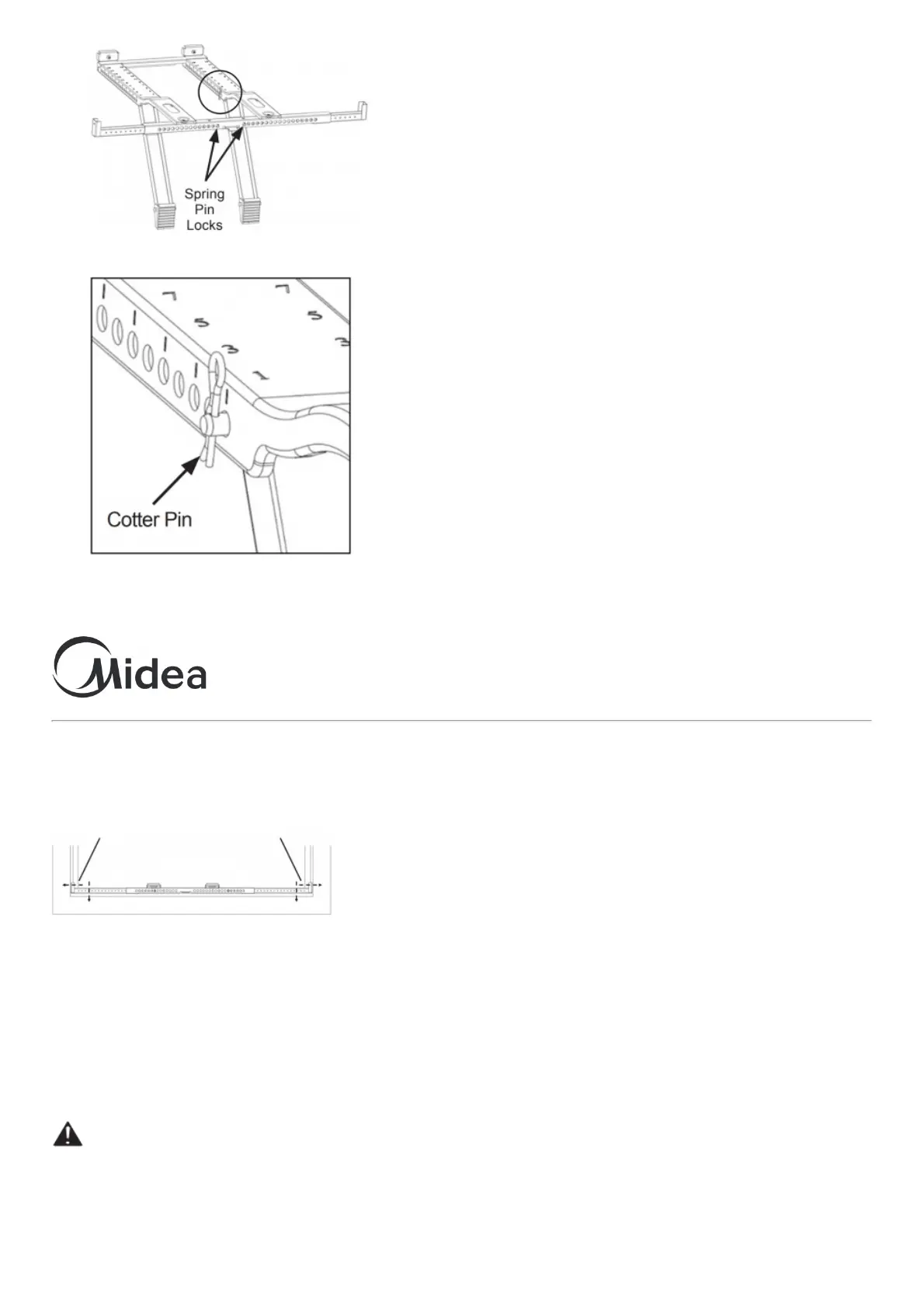

Spring Pin Locks
Cotter Pin
Page 3 Installation Guide
1. INSTALL THE SUPPORT BRACKET (cont.)
Use the provided 1/2″ Type A screws.
NOTE: Drill 1/8″ pilot holes before screwing into the window sill.
1.3 Secure the bracket to the window with a screw at the end of each extension arm as shown. Holes at the
end or bottom of the Extension Arms can be used to secure the Support Bracket to the window.
2. SECURE THE UNIT ON THE BRACKET
2.1 Set the air conditioner on the support bracket and fold down the side arm hinges.
WARNING
Do not leave the unit unattended during installation.
To Next Page
