Part 2 - Engineering Data
2 Dimensions and Center of Gravity
MC-SU30(M)-RN1L

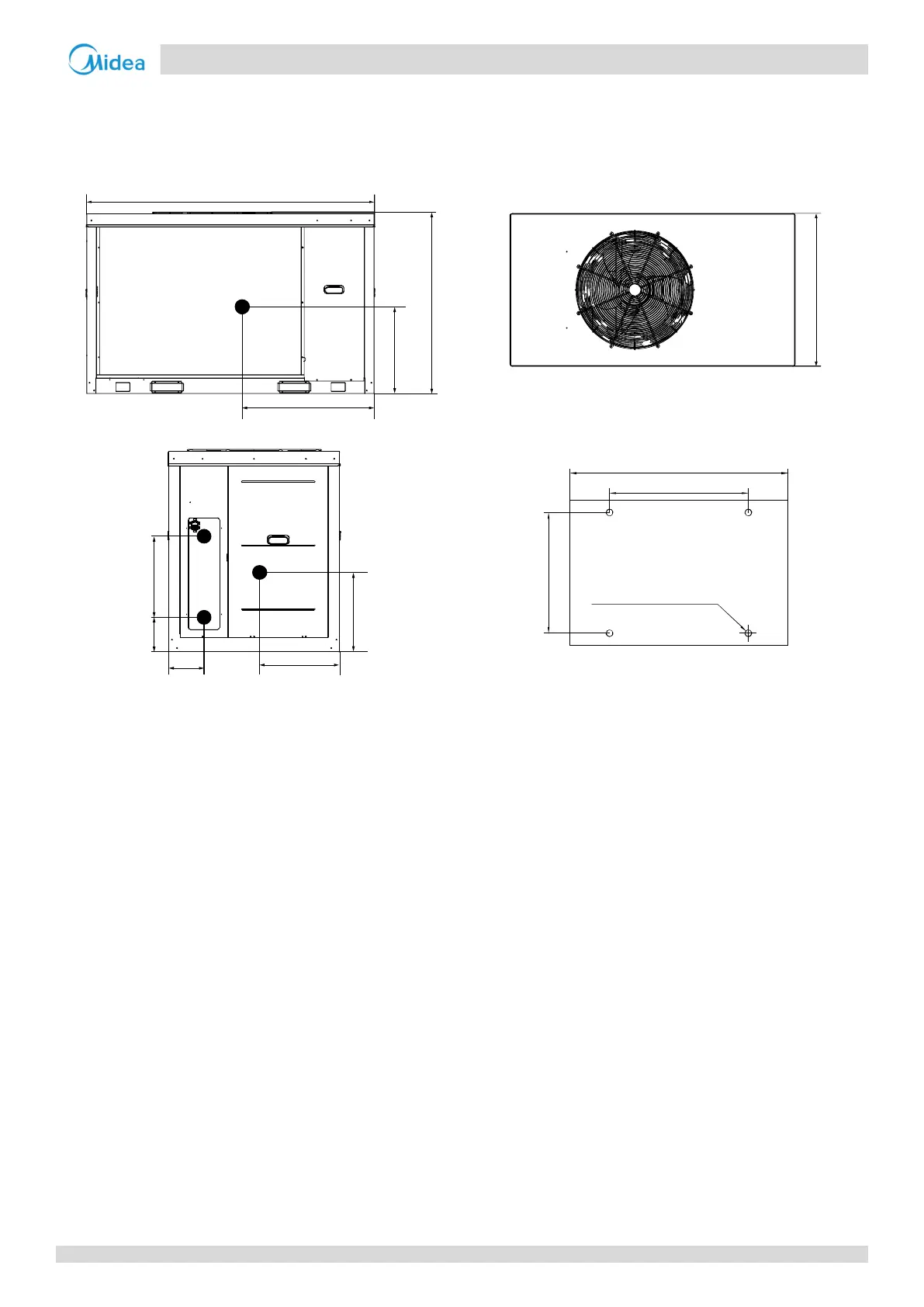

Figure 2-2.1: MC-SU30(M)-RN1L dimensions and center of gravity (unit: mm)
Left view
Top view
470
204
485
485
200
Front view
Bottom view
880
Hole for anchor bolt Φ15
1870
680
1870
788
1175
485
1000
