Aqua Tempo Super II
201902 29
Part 2 - Engineering Data
Legend
H-PRO High pressure switch Eva-heat1 Plate heat exchanger heater 1
L-PRO Low pressure switch Eva-heat2 Plate heat exchanger heater 2
Water switch Water flow switch Tf1 Inverter module temperature sensor 1
L-YL1 Pressure sensor Tf2 Inverter module temperature sensor 2
T4 Outdoor ambient temperature sensor TW Total water outlet temperature sensor
T3 Air side heat exchanger temperature sensor TWi Water inlet temperature sensor
CT1 AC current detector 1 TWO Water outlet temperature sensor
CT2 AC current detector 2 Taf1
Water side heat exchanger anti-freezing
temperature sensor1
STF1 4-way valve 1 Taf2
Water side heat exchanger anti-freezing
temperature sensor2
STF2 4-way valve 2 Tp1 Discharge temperature sensor 1
SV4 Oil return solenoid valve Tp2 Discharge temperature sensor 2
HEAT1 Compressor crankcase heater 1 Tz/7 Total cooling outlet temperature sensor
HEAT2 Compressor crankcase heater 2 W-HEAT1 Water flow heater 1

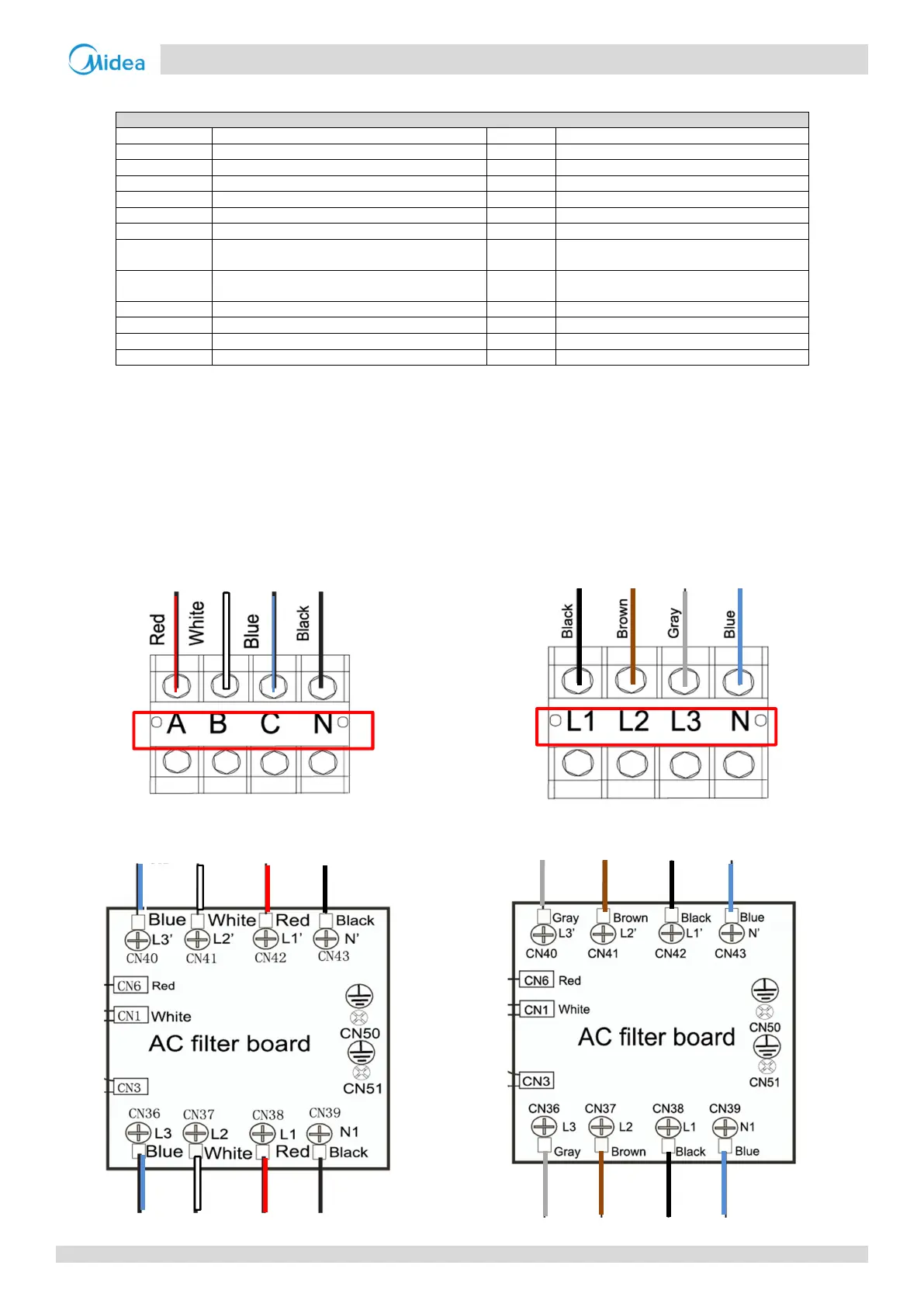

Before After
Power supply terminal Power supply terminal
Input and output of AC filter A Input and output of AC filter A
This is to
inform that the color and label of power supply wires for MC-SU30(M)-RN1L and
MC-SU60(M)-RN1L has been changed. The color for three phase power supply wiring is changed from red
white blue black to black brown gray blue. The wring label is changed from ABCN to L1L2L3N respectively.
Refer to the images below for better understanding.
To Next Page
