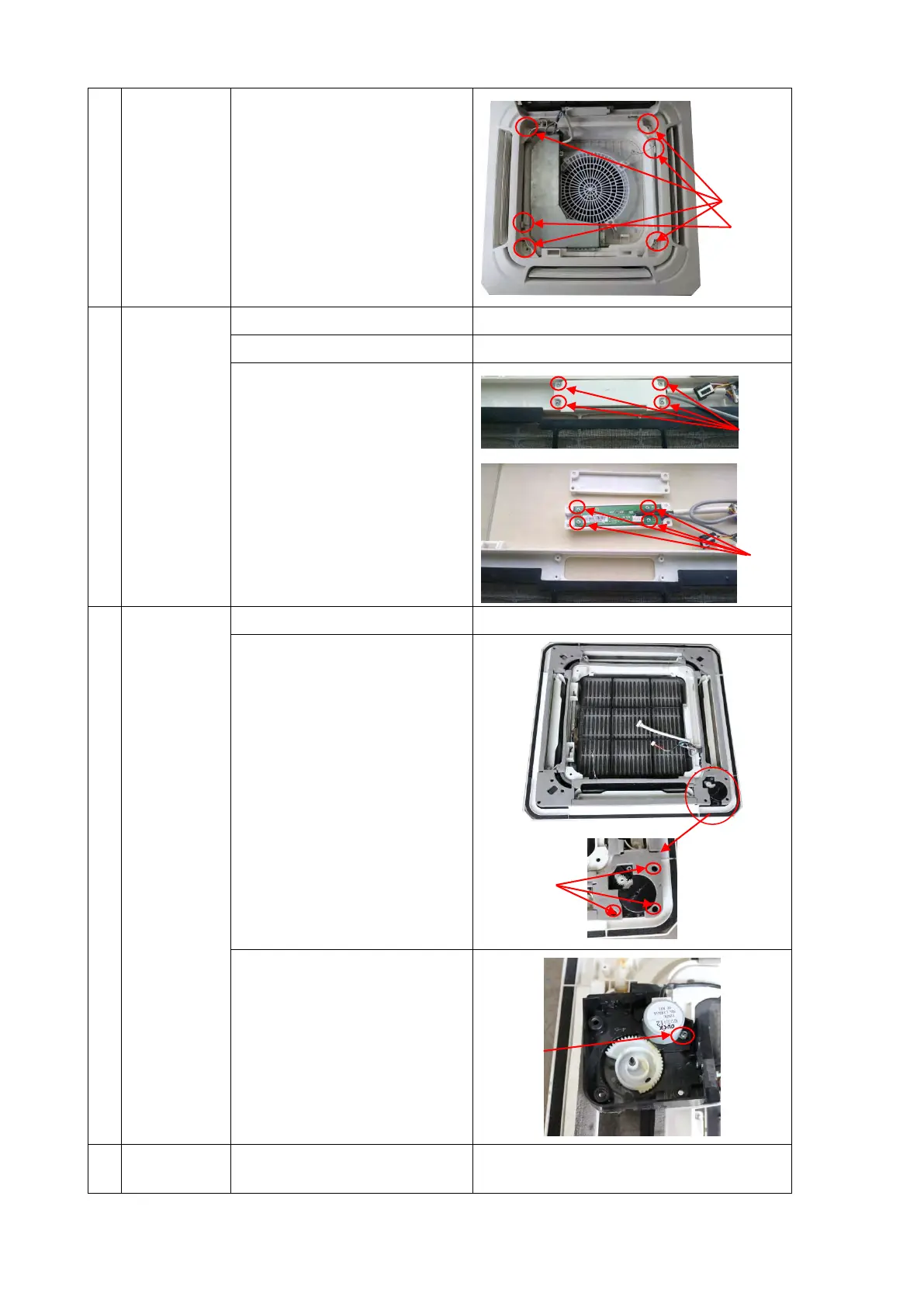

3) Loose the four screws
and two wireropes, then
the panel can be
disassembled.
3
Remove the
display
board
1) Open the grille
Repeat the operation of step1 of No.1
2) Remove the grille
Repeat the operation of step2 of No.2
3) Disassemble the display
board
 Remove the display
board cover(4
screws)
 Remove the display
board(4 screws)
4
Remove the
swing
motor
1) Remove the panel
Repeat the operation of step1,2,3 of No.2
2) Screw off 3 screws to
remove the swing motor
assy.
3) Screw off 1 screws to
remove the swing motor.
5
Remove the
PCB
1) Open the grille
Repeat the operation of step1 of No.1(No need
to remove the panel)
4 screws
4 screws
4 screws
2 wireropes
3 screws
1 screw
