6.1.1 Some connectors introduce:
MCA3U-09HRFN1-M(C), MCA3U-12HRFN1-M(C), MCA3U-18HRFN1-M(C),MCD-24HRFN1-M(C),
MCD-36HRFN1-M(C), MCD-48HRFN1-M(D), MCD1-24HRFN1-MT0W(GA)

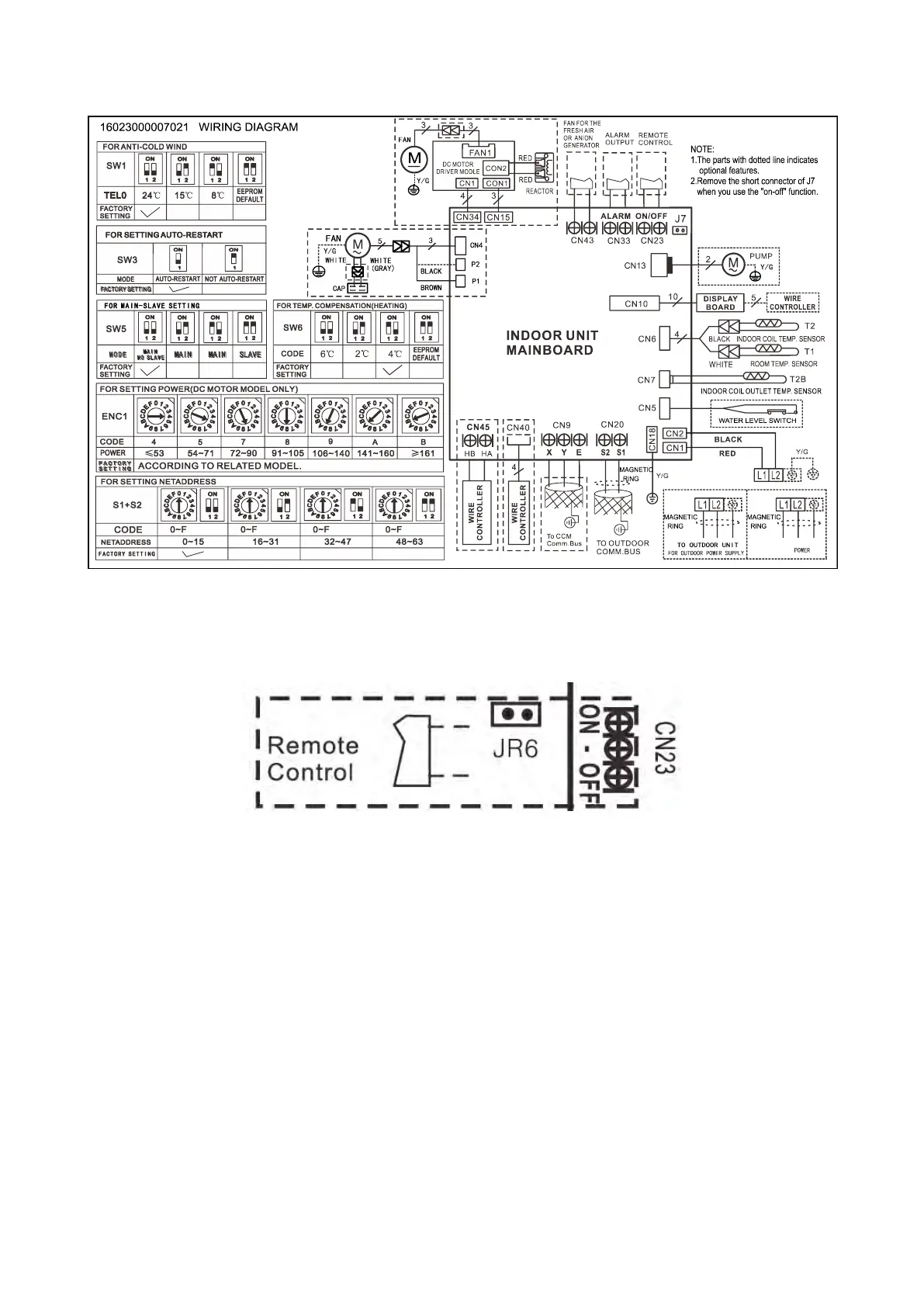

A For remote control (ON-OFF) terminal port CN23 and short connector of JR6
1. Remove the short connector of JR6 when you use ON-OFF function;
2. When remote switch off (OPEN), the unit would be off;
3. When remote switch on (CLOSE), the unit would be on;
4. When close/open the remote switch, the unit would be responded the demand within 2 seconds;
5. When the remote switch on. you can use remote controller/ wire controller to select the mode what
you want ;when the remote switch off , the unit would not respond the demand from remote
controller/wire controller.
When the remote switch off, but the remote controller / wire controller are on, CP code would be shown
on the display board.
6. The voltage of the port is 12V DC , design Max. current is 5mA.
