Midea MCA3U-12HRFN1-M(C) User Manual

271
5

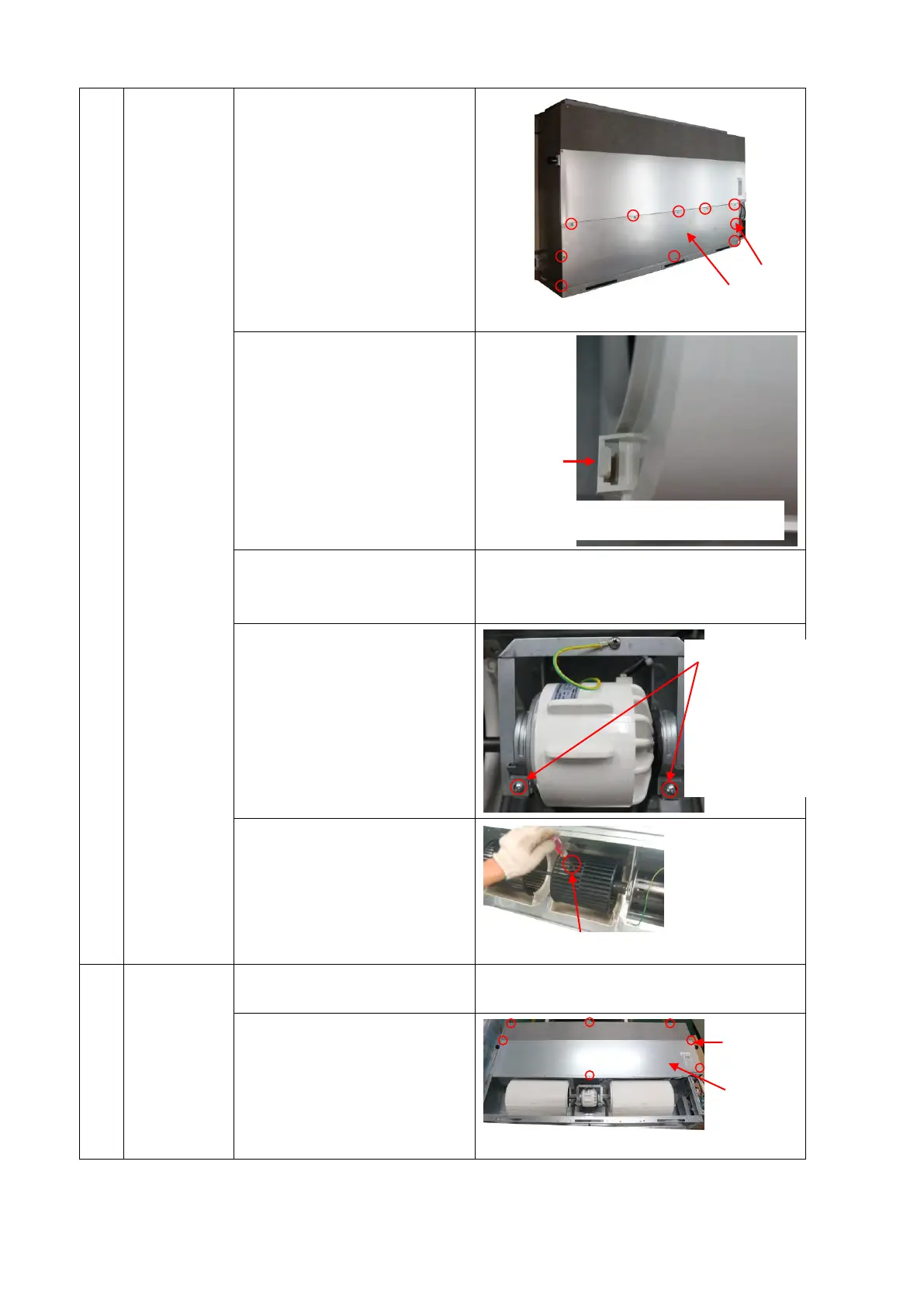

Remover
the fan
motor
1) Screw off the fixing
screws to remove the
rear cover board
2) Remove the volute shell
3) Remove the fan motor
wire from the electronic
control box
Refer the operation of step2 of No.1
4) Disassemble the fan
motor fixing clamps to
remove the fan motor
assembly and fan wheel
assembly
5) Disassemble the fan
wheels, then you can
remove the fan motor
6
Remove the
water
collector
assembly
4) Remove the rear cover
board
Repeat the operation of step1 of No.5
5) Screw off the seven
screws to remove the top
cover, then remove the
water collector assembly
7 screws
Press the clips to take off the volute shell
Press
10 screws
Rear cover board
The fan motor
assembly and
fan wheel
assembly can be
removed after
took off the
2screws used to
fix the fan motor
holder.
Take off the screw to remove the fan wheel
Top cover
