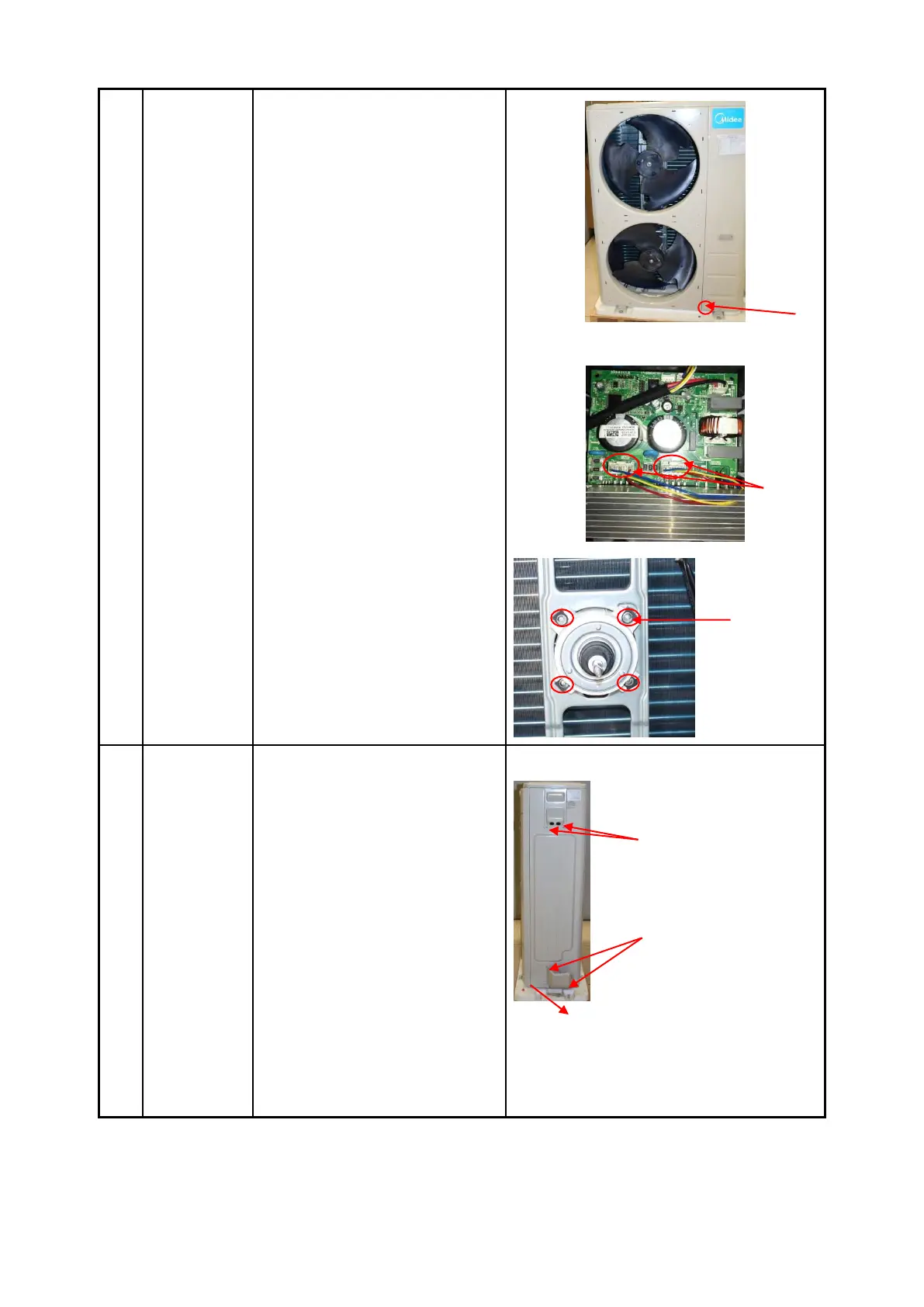

7) Disconnect the fan motor
connectors FAN1(3p,white) and
FAN2(3p,white) from DC motor
driver board.
8) Remove the fan motor after
unfastening fixing screws.
2
Panel plate
How to remove the panel plate.
1) Remove big handle.(2
screws) and water
collector(2 screws)
2) Remove two screws of
terminal board and seven
screws of right-rear panel,
and remove the right-rear
panel.
Screws of
Water collector
Screws
of big
handle
⑧
⑦
Screws of
right-rear panel
⑥
