4. Outdoor unit installation
4. Outdoor unit installation

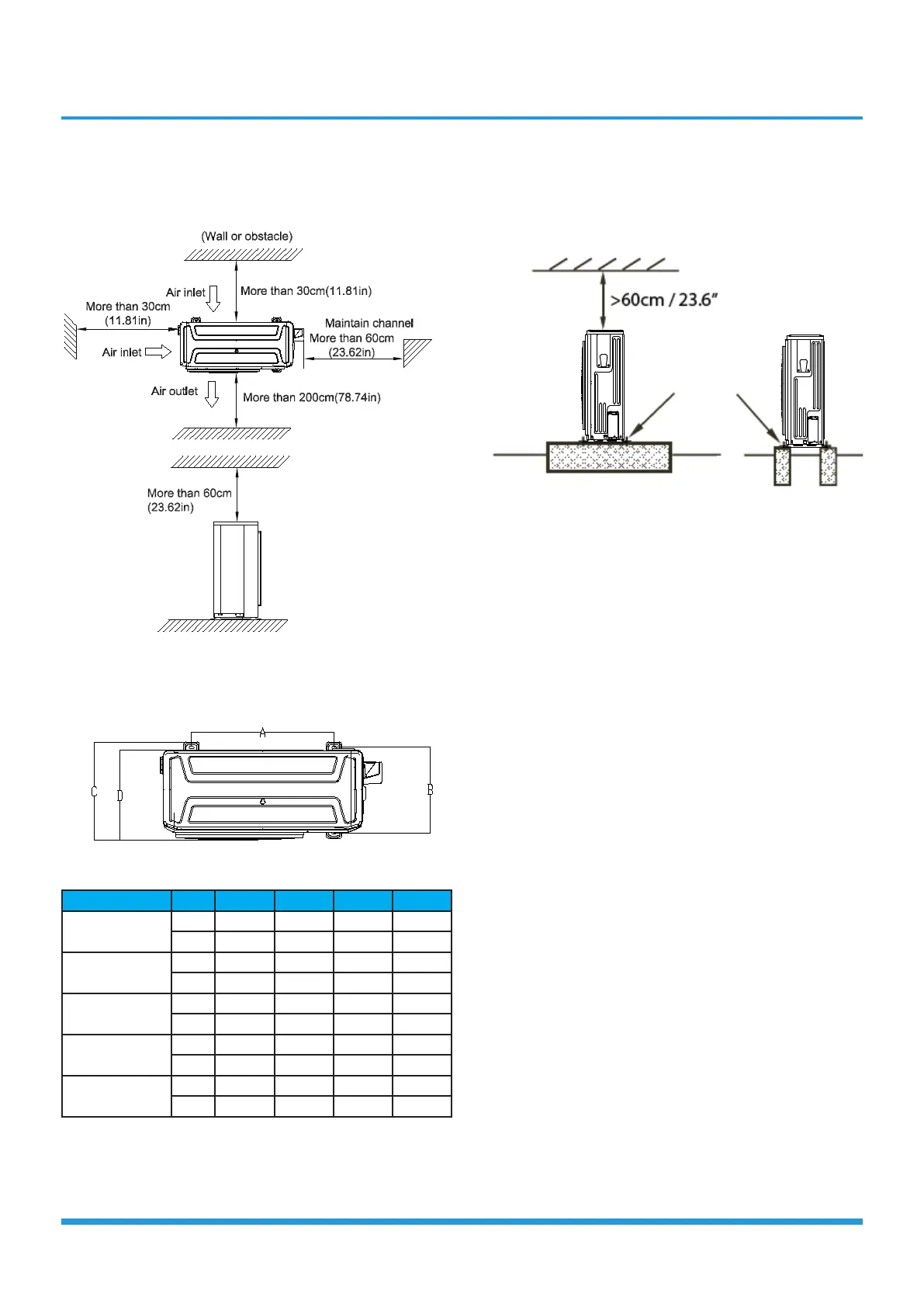

4.1 Service space for outdoor unit
4.2 Bolt pitch
Panel Plate Unit D A B C
B30
mm 333 514 340 365
inch 13.11 20.23 13.39 14.37
CA30
mm 363 540 350 375
inch 14.29 21.26 13.78 14.8
D30
mm 410 673 403 455
inch 16.14 26.50 15.87 17.9
E30
mm 415 634 404 457
inch 16.34 24.96 15.9 17.99
590
mm 350 590 378 400
inch 13.78 23.23 14.88 15.75
4.3 Install Outdoor Unit
Fix the outdoor unit with anchor bolts(M10)
>60cm / 23.6”
Fix with bolts
Caution
Since the gravity center of the unit is not at its physical
center, so please be careful when lifting it with a sling.
Never hold the inlet of the outdoor unit to prevent it from
deforming.
Do not touch the fan with hands or other objects.
Do not lean it more than 45, and do not lay it sidelong.
Make concrete foundation according to the specifications
of the outdoor units.
Fasten the feet of this unit with bolts firmly to prevent it
from collapsing in case of earthquake or strong wind.
