Midea MCHSU-18PHH2

10.2 Outdoor unit
Note: This part is for reference, the photos may have slight difference with your machine.
MCHS-09PSH1，
No.
Part name Procedures Remarks
1 Panel plate
How to remove the panel
plate.
1)Stop operation of the
air conditioner and turn
“OFF” the power
breaker.
2) Remove the big handle
first,then remove the top
cover (3 screws)
3)Remove the screws of
front panel(7 screws)
(4) Remove the screws of
the right side panel(11
screws)

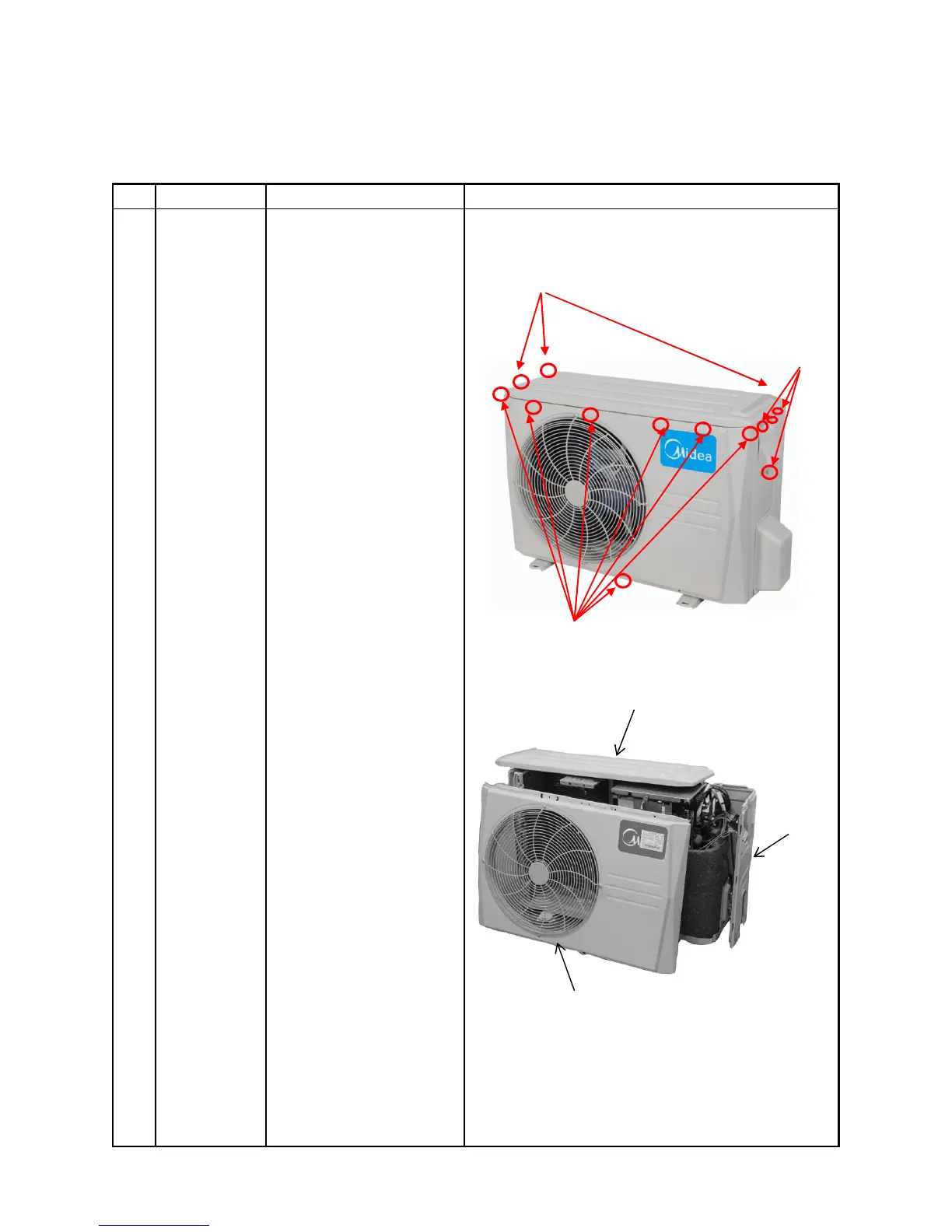

Screws of front panel(7 screws)
Screws of top panel(3 screws,1 screws is under
the big handle)
3 screw of
big handle
②
④
③
