Midea MCHSU-18PHH2

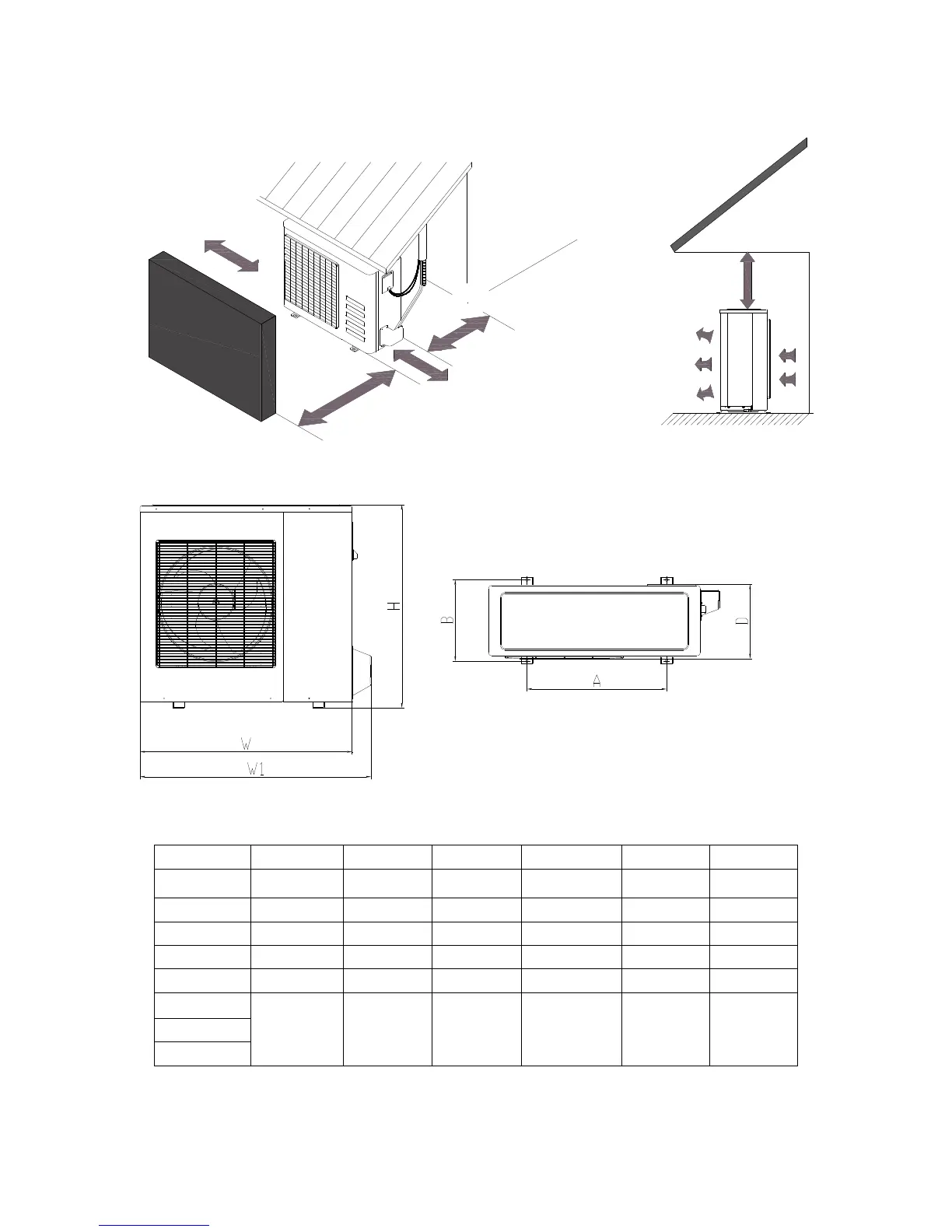

3.2 Outdoor Unit
More than 60cm(23.6in)
More than 70cm(27.6in)
More than 30cm(11.8in)
More than 60cm(23.6in)
(Service space)
Fe
n
c
e
o
r
o
b
s
t
a
c
l
e
s
More than 30cm(11.8in)
Note: The above drawing is only for reference. The appearance of your units may be different.
Model W in(mm) D in(mm) H in(mm) W1 in(mm) A in(mm) B in(mm)
9k(115V) 30.31(770)
11.81(300)
21.85(555)
33.07 (840)
19.2(487)
11.73(298)
12k(115V) 31.50(800)
13.11(333)
21.81(554)
34.25(870) 20.24(514)
13.39(340)
9k(230V) 31.50(800)
13.11(333)
21.81(554)
34.25(870) 20.24(514)
13.39(340)
12k(230V) 31.50(800)
13.11(333)
21.81(554)
34.25(870) 20.24(514)
13.39(340)
18k 35.98(845)
14.29(363)
27.63(702)
35.98(914) 21.26(540)
13.78(350)
24k
37.24(946)
16.54(420)
31.89(810)
40.55(1030)
26.50(673)
15.87(403)
30k
36k
