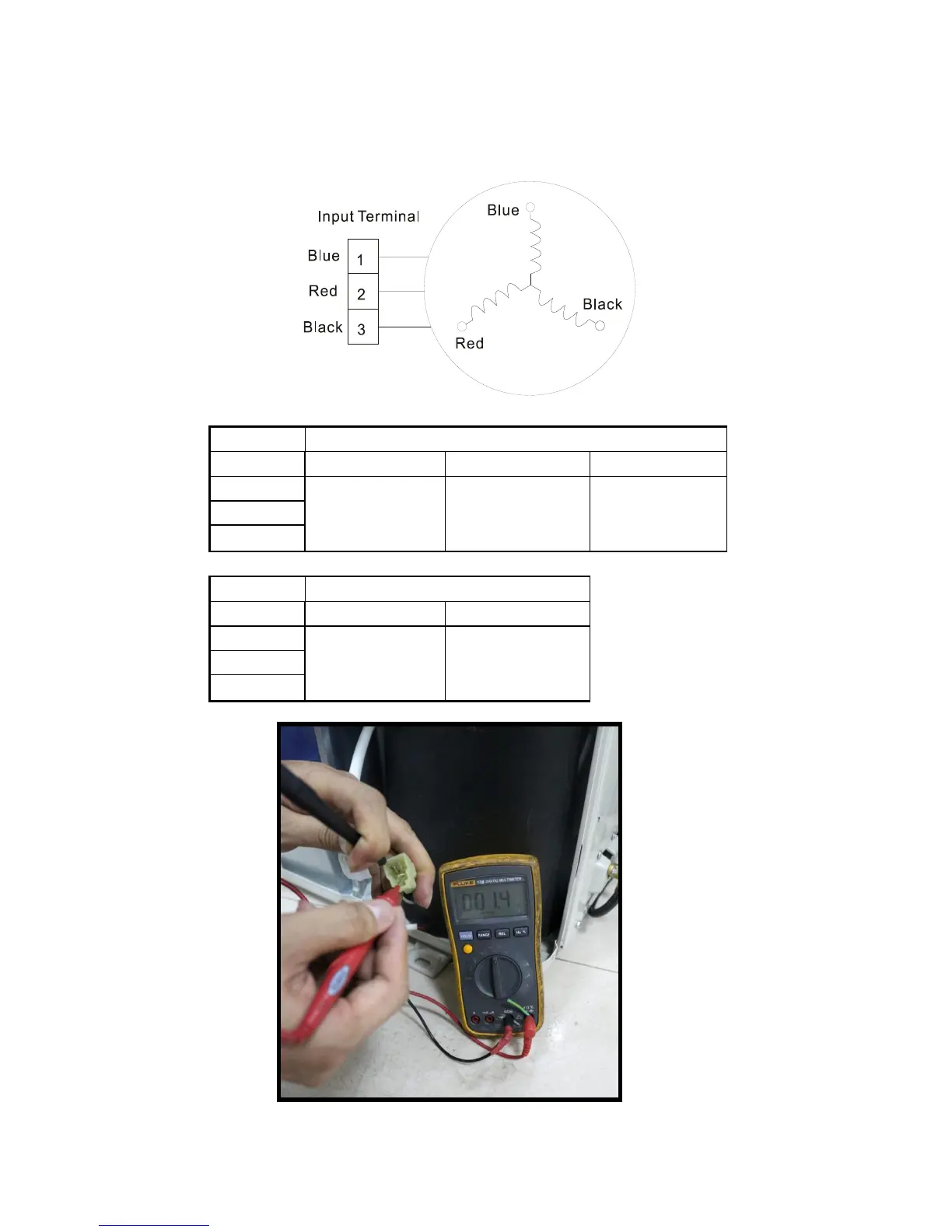

2.Compressor checking
Measure the resistance value of each winding by using the tester.
Position Resistance Value
ASN98D22UFZ ASM98D32UFZ ATM115D43UFZ2
Blue - Red
1.57Ω
(20℃/68℉)
2.3Ω
(20℃/68℉)
1.78Ω
(20℃/68℉)
Blue - Black
Red - Blue
Position Resistance Value
ATF235D22UMT ATF250D22UMT
Blue - Red
0.75Ω
(20℃/68℉)
0.75Ω
(20℃/68℉)
Blue - Black
Red - Blue
